Formation and growth of diapirs in contractional settings: the Mediano anticline and Clamosa diapir case study (Southern Pyrenees)

At the northwestern termination of the South Pyrenean Central Salient, thrust imbrication, detachment folding and diapirism are structurally and genetically related. The La Fueba imbricate system has been folded by the Mediano detachment anticline, while this fold connects with the Clamosa diapir. Together, this structural-stratigraphic trinity provides an excellent example to evaluate the factors controlling purely contractional diapirs in onshore-offshore contractional fold-thrust systems. Our study integrates detailed geological mapping, a large structural dataset, new biostratigraphic data, and interpretations of well-tied depth-converted seismic lines and cross-sections. A combined evolutionary model for contractional diapirs formation and evolution is presented. While less common than in extensional settings, the interplay of shortening of a salt horizon along with vertical axis rotations and local stretching and erosion of the overburden can lead to purely contractional salt diapirs.

1 Introduction

Salt-detached fold-and-thrust belts feature a common structural style characterized by low taper angles and regularly-spaced folds and thrusts (Davis and Engelder, 1985). Folds are usually symmetrical, upright, elongated, and display a regular wavelength (e.g., Davis and Engelder, 1985; Harrison, 1995; Rowan and Vendeville, 2006). Salt thickness is a primary factor in determining the type of fold: a thicker salt than its overburden promotes the formation of salt-cored detachment folds, whereas thinner salt leads to thrusted folds (Stewart, 1999). Besides, the ratio of décollement thickness to cover thickness and the décollement strength (i.e., viscosity) control the structural spacing, fold amplitude, wavelength, and structural facing (e.g. Cotton and Koyi, 2000; Costa and Vendeville, 2002; Soto et al., 2002; Ruh et al., 2012). On the other hand, sedimentation-erosion processes localize deformation and promote fold amplification (e.g. Storti and McClay, 1995; Mugnier et al., 1997; Pichot and Nalpas, 2009; Fillon et al., 2013; Duerto and McClay, 2009; Izquierdo-Llavall et al., 2018; Pla et al., 2019). All these factors can vary both spatially and temporally, and so may the associated structural styles and kinematics.

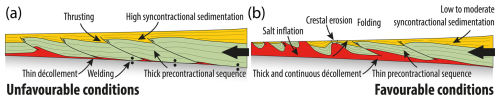

Figure 1 Summary sketches that illustrate unfavorable (a) and favorable (b) conditions for the development of purely contractional diapirs in fold-and-thrust belts.

Many salt-detached fold-and-thrust belts include salt diapirs, such as in the Fars province area in the Zagros fold-belt (e.g. Jahani et al., 2009; Callot et al., 2012; Snidero et al., 2020), the Hellenides (e.g., Velaj, 2002; Vakalas et al., 2023), the SW Sub-Alpine chains (e.g. Célini et al., 2020), the Atlas Mountains (e.g. Saura et al., 2014; Teixell et al., 2017; Calvín et al., 2018; Martín-Martín et al., 2017; Casas-Sainz et al., 2023), the Betic Cordillera (e.g. De Ruig, 1995; Roca et al., 2006; Escosa et al., 2018; Flinch and Soto, 2022) and the Pyrenees (e.g. Canérot et al., 2005; Muñoz et al., 2013; Santolaria et al., 2016; Burrel and Teixell, 2021; Casini et al., 2023), among others. In most cases, diapirs in such settings are inherited features, originating from extension, differential loading, or gravitational gliding on rifted margins predating contraction (e.g. Roca et al., 2006; Strauss et al., 2023). Upon shortening and due to the low-strength of salt, diapirs are easily rejuvenated (e.g. Vendeville and Nilsen, 1995; Callot et al., 2012; Dooley et al., 2009; Granado et al. 2019; Santolaria et al., 2021a) and commonly focus deformation and localize contractional structures (e.g. Rowan and Vendeville, 2006; Santolaria et al., 2021b). In the absence of inherited salt structures, diapirism in fold-and-thrust belts is less common (Vendeville and Jackson, 1992; Jackson and Vendeville, 1994) and is hindered by factors such as: (i) a relatively thick cover strengthened by horizontal contractional stresses, (ii) a relatively thin décollement (i.e., the salt budget limiting factor), (iii) predominance of thrusting over folding, and (iv) high syn-contractional sedimentary rates (Bonini, 2003; Barrier et al., 2013) (Fig. 1a). Therefore, triggers and processes that enhance diapirism in such settings include: (i) a relatively thin cover over a thick salt décollement, (ii) folding rather than thrusting, (iii) low to moderate syn-contractional sedimentary rate relative to uplift, thus favouring erosion (Sans and Koyi, 2001), (iv) lateral gradients of thrust displacement accommodated with localized extension, (v) salt migration and inflation (Fig. 1b), (vi) the presence of salt in the hanging wall of a thrust carried up to shallow levels where it can break through to the surface (Rowan, 2020), (vii) salt breaking through the thin roof of an early salt-cored anticline or the thick roof of a later fold that is thinned by erosion (Coward and Stewart, 1995). What are then the feedbacks and necessary balance between unfavourable and favourable factors critical for the occurrence of diapirism and its subsequent enhancement or inhibition?

Figure 2 (a) Geological map of the South Pyrenean Central Salient. Dashed and dotted red lines represent the contact between the Axial Zone and the Southern Pyrenean fold and thrust belts and the Bóixols-Cotiella, Montsec-Peña Montañesa and Gavarnie-Sierras thrust sheets (modified from Muñoz et al., 2018; Santolaria et al., 2024; inset map after Beamud, 2013). A black rectangle frames the studied area shown in Fig. 4. (b) Cross-section illustrates the western half of this Pyrenean Salient (from Santolaria et al., 2024). PM: Peña Montañesa thrust; M: Montsec thrust.

In this contribution, we present the South Pyrenean Central Salient as a unique scenario due to the outstanding preservation of syn-contractional growth strata and the available subsurface data surrounding several salt bodies. Our analysis assesses the feedbacks and balance between diapirism triggers and inhibiting factors and processes (e.g., Muñoz et al., 2024). We illustrate these dynamics through a detailed case study of the Clamosa diapir, a Triassic salt body surrounded by pre-, syn-, and post-tectonic units (Fig. 2), along with nearby contractional structures: the Mediano detachment anticline, and the La Fueba imbricate thrust system. Our methodology included constructing a detailed new geological map completed based on our own fieldwork and the synthesis of previous geological maps (Arbués et al., 2007; Fernández et al., 2004; Teixell and Barnolas, 1995; Gomis et al., 2012; Garrido-Megías, 1973; Poblet et al., 1998; Teixell et al., 1994b). This surface geology work is complemented by constructing and analysing serial cross-sections integrated with and supported by well-tied depth-converted 2D seismic data. In addition, our structural-kinematic evolutionary model is supported by new biostratigraphy dating based on foraminifera content from key localities. Our proposed model is framed within the regional context of the South Pyrenean Central Salient (Muñoz et al., 2018, 2024). Additionally, we evaluate and discuss the factors that determine the formation of salt diapirs in fold-and-thrust belts, and their connection with adjacent non-diapiric structures, such as detachment anticlines and thrust imbricates.

2 Geological setting

2.1 The South-Central Pyrenees

The Pyrenean mountain range formed as a result of the collision between the Eurasian and Iberian plates from Late Cretaceous to Miocene times (Roest and Srivastava, 1991; Rosenbaum et al., 2002). This collision involved the subduction of the Iberian lower crust attached to its lithospheric mantle beneath the European Plate resulting in the growth of an asymmetric doubly-verging orogenic wedge (Choukroune, 1989; Muñoz, 1992; Pedreira et al., 2003; Campanyà et al., 2012; Chevrot et al., 2015), together with the inversion of the Late Jurassic-Early Cretaceous rifted margin (Mencós et al. 2015; Muñoz et al. 2018). The Pyrenean structural style is thus mainly controlled by the inversion of inherited features but also by the distribution of the Triassic evaporites and shales, which acted as the regional thin-skinned décollement in the Southern Pyrenees. The South-Central Pyrenees form a thrust salient (Fig. 2) whose curvature developed by the progressive bending resulting from divergent thrust transport directions (Muñoz et al., 2013, 2024). Preservation of syntectonic sediments since the early stages of convergence provides constraints on the thrusts' sheets kinematics of the salient. From north to south, and older to younger, these thrust sheets are: the Late Cretaceous Cotiella-Bóixols, the Paleocene-late Ypresian Peña Montañesa-Montsec, and the Lutetian-Oligocene Gavarnie-Sierras thrust sheets. Displacement of these thrust sheets was coeval with basement-involved thrusting in the Axial Zone (Séguret, 1972; Cámara and Klimowitz, 1985). In the Gavarnie-Sierras thrust sheet displacement is mainly accounted by several basement-involved thrusts, such as the Gavarnie, Bielsa and Guarga thrusts that mostly moved diachronously and in sequence (Séguret, 1972; Cámara and Klimowitz, 1985; Martínez-Peña and Casas-Sainz, 2003). The Gavarnie thrust started to develop during early Lutetian times (the age of the onset of folding in its hanging wall, Séguret, 1972; Fernández et al., 2012; Muñoz et al., 2013), until it was tilted, folded, and piggy-back transported southwards since late Eocene times by the Guarga and related basement thrusts.

The studied area is on the western edge of the South Pyrenean Central Salient, where the N130E trending Montsec thrust turns into a N-S orientation to merge with the Peña Montañesa south-directed thrust system (Fig. 2). East of it, the Graus-Tremp basin extends to the east as the piggyback basin ridding on top of the Montsec thrust sheet (Fig. 2). West of it, the Mediano anticline and Clamosa diapir are the easternmost structures of a set of N-S trending folds that belong to the Aínsa Oblique Zone (Muñoz et al., 2013). Besides, the Clamosa diapir represents the northernmost diapir of those structures belonging to the Gavarnie-Sierras thrust sheet. Paleomagnetic and structural studies have revealed the N-S folds in the Gavarnie-Sierras thrust sheet originated slightly oblique to the Pyrenean main N120E trend and underwent syn- to post-folding clockwise vertical axis rotations during Eocene to Oligocene times (Mochales et al., 2012; Muñoz et al., 2013). A more detailed description of the geology of the area studied is provided in Sect. 3.

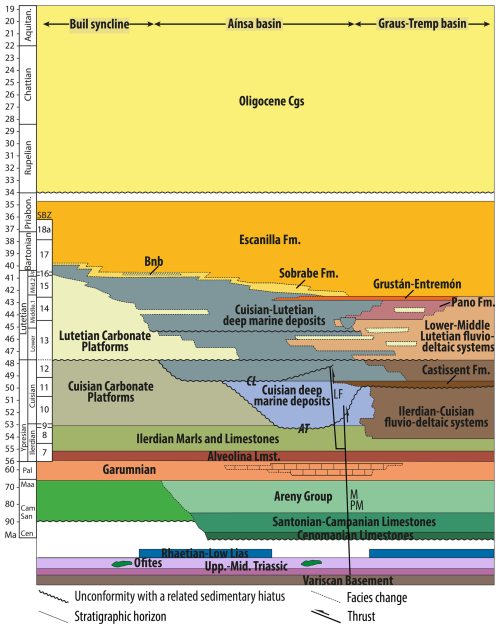

Figure 3 Chronostratigraphic diagram showing the main stratigraphic units of the Gavarnie-Sierras and Montsec thrust sheets. Diagram is designed to cover the area around Clamosa diapir and Mediano anticline. Bnb: Buil nummulitic bank; AT: Atiart unconformity; CL: Charo-Lascorz unconformity; M & PM: Montsec-Peña Montañesa thrust system; LF: La Fueba thrust system.

Figure 4 Geological map of the area studied. See Fig. 3 for the colour legend of stratigraphic units. Main structural features described in the text are labelled. Dark grey lines represent seismic sections, composite lines and cross-sections traces. Note that black-white dashed lines denote buried structural features. The tip line of the Guarga basement thrust sheet is represented as a dashed black and white line with open black arrows. Southern and northern areas are adapted from Teixell et al. (1994a, b) Robador-Moreno and Zamorano-Cáceres (1999) and Santolaria et al. (2014).

2.2 Stratigraphic units

The stratigraphy of the studied area is summarized in the chronostratigraphic diagram of Fig. 3. Paleozoic rocks represent the base of the stratigraphic sequence, only outcropping in the Axial Zone antiformal stack to the north. Paleozoic basement was drilled at −4457 m b.s.l. in the Huesca-1 exploration well, ca. 20 km SSW of the Clamosa diapir (Fig. 4). In the Axial Zone, Paleozoic units are unconformably overlain by Permian–Lower Triassic red beds and a strongly mobile Middle-Upper Triassic layered evaporitic sequence of evaporites, shales, carbonates and minor dolorites which constitute the regional décollement of the Pyrenees. On top of this sequence, scarce bodies of Rhaetian to Lower Jurassic limestones and dolostones crop out or were drilled by exploration wells. Cretaceous rocks are represented by Cenomanian limestones and dolostones, Santonian to Campanian carbonates and Campanian to Maastrichtian limestones and calcareous sandstones. Paleocene rocks are constituted by continental mudstones and limestones (Garumn facies) that grade into marine limestones and dolostones to the northwest. Above, the lower Ilerdian (i.e., lower Ypresian) Alveolina Limestone (Mey et al., 1968) is overlain by a succession of Ilerdian marls and limestones. On top, Cuisian (i.e., upper Ypresian) carbonate platforms laterally grade into the lower part of the deep marine Aínsa slope complex deposits (Cuisian and Cuisian-Lutetian deep marine deposits, Fig. 3) which were fed from the easterly fluvio-deltaic systems of the Tremp-Graus Basin (i.e., Ilerdian-Cuisian fluvio-deltaic systems). Among the latter, the Castissent Fm. (Nijman and Puigdefàbregas, 1978) represents a major fluvial progradation towards the studied area (Marzo et al., 1988).

During the Lutetian, east-sourced fluvio-deltaic systems (Fig. 3, e.g., Garrido-Megías, 1968; Nijman and Nio, 1975) in the vicinities of the Clamosa diapir were topped by the deltaic Pano Fm. (Donselaar and Nio, 1982). These fluvio-deltaic systems include a succession of fluvial mudstones, sandstones and conglomerates that grades westwards to prodelta fossiliferous sandstones and mudstones and interbedded carbonate platform and reef limestones. These interbedded carbonates are found as isolated patches likely related to localized highs along the eastern and southwestern limbs of the Clamosa diapir. Eventually and especially in the western flank of the Clamosa diapir, a carbonate breccia unconformably overlies Upper Cretaceous and locally represent the base of the fluvio-deltaic sequence. Carbonate breccia is essentially made of Upper-Cretaceous sub-rounded clasts in a sandy matrix containing foraminifera and its thickness varies from few tens centimeters to few meters. On top of the fluvio-deltaic deposits, the Pano Fm. is constituted by nearshore sandstones to deep-water mudstones organized in a transgressive sequence which also locally includes carbonate platforms. Fluvio-deltaic systems grade laterally into the deep marine deposits of the Aínsa slope complex (Cuisian-Lutetian deep marine deposits, Fig. 3). In the vicinities of the Mediano anticline, this unit includes cm-thick beds of wackestones and packstones interbedded with non-fossiliferous marls and reef limestones topped by siliciclastic and turbiditic intervals interbedded by platform limestones units containing large foraminifera. These sequences are overlain by the middle Lutetian Grustán Fm. (Garrido-Megías and Rios-Aragües, 1972) and the Entremón unit (Poblet et al., 1998) characterized by carbonate platform and reef limestones (Fig. 3). Limestones are found in the western limb of the Mediano anticline and grade basinwards into breccias.

Middle-upper Lutetian fluvial red beds of the Escanilla Fm. grade from east to west into the deltaic sandstones of the Sobrarbe Fm. (De Federico, 1981), which in turn are the lateral equivalent of the upper part of the Aínsa slope complex deposits (Cuisian-Lutetian deep marine deposits, Fig. 3). The youngest marine sediments correspond to the Buil Nummulitic bank (Mateu-Vicens et al., 2012). The Escanilla Fm. expands from Bartonian to Priabonian as a fluvial formation having scarce lacustrine limestones towards the lower part of the succession. Oligocene-Miocene continental sediments unconformably lay over Escanilla Fm. and older units and extensively cover the southern half of the area.

Major unconformities have been recognized along the Aínsa Oblique Zone and have been used for establishing the chronology of the different structures in the area. North of the Clamosa diapir, the most significant and well-preserved unconformities are the early-middle Cuisian L'Atiart and the latest Cuisian Charo-Lascorz truncation surfaces (Figs. 3, 4) (Soler-Sampere and Garrido, 1970; Mutti et al., 1988; Muñoz et al., 1994). Flanking the Mediano anticline, an early Lutetian unconformity, namely the Mediano unconformity (Teixell and Barnolas 1995), extends along the anticline and truncates younger units to the north (e.g. Plaziat, 1984; Teixell and Barnolas, 1995) where it becomes concordant within the Lutetian deep marine deposits of the Aínsa slope complex. On top of it, Lutetian deposits exhibited a growth geometry involving some other internal unconformities that registered the kinematic evolution of the Mediano anticline (Poblet et al., 1998). The Mediano unconformity has been extended to the south, around the Clamosa diapir (Teixell and Barnolas, 1995) as a single surface, however locally truncated by faults. New observations and biostratigraphic information point out that the nature of the unconformities is much more complex, as it is detailed in Sect. 3.2 and the followings.

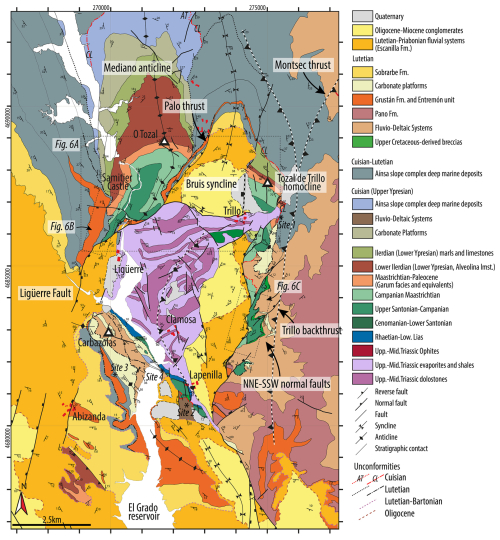

Figure 5 Geological map of the Mediano anticline-Clamosa diapir area showing the structural features described in the text and paleontological sites included in the biostratigraphic analysis shown in Appendix A. Partly adapted from Teixell et al. (1994b).

3 The Clamosa diapir and Mediano anticline

3.1 Biostratigraphic data

In order to establish a time constraint regarding the development of the Clamosa diapir and its relationship with the growth of the Mediano anticline a bioestratigraphic analysis of large benthic foraminifera (LBF) was conducted. 4 paleontological sites with LBF were considered (location in Fig. 5). Sampling and procedures related to the biostratigraphic analysis and systematic criteria on the classification of LBF are detailed in Appendix A.

The samples contain LBF of a well-known age distribution. Site 1 (Sample ST-1) contains Assilina maior (Heim, 1908); A. cuvillieri, (Schaub, 1981) and Nummulites campesinus (Schaub, 1966). These species are biomarkers of the Shallow Benthic Zone SBZ 12 according to Serra-Kiel et al. (1998). Site 2 (sample LP-1) contains N. manfredi (Schaub, 1966), a species corresponding also to the SBZ 12 (Serra-Kiel et al., 1998). On Site 3 (sample Cb-4) N. aff. boussaci, is found, a species representative of the SBZ 13 biozone according to Serra-Kiel et al. (1998). On Site 4 (hand sample), a Idalina berthelini (Schlumberger, 1905) was described which yields to date the rock as Lutetian.

The chronostratigraphic correlation of the SBZ 12 and SBZ 13 has been calibrated, using magnetostratographic methods, by Rodríguez-Pintó et al. (2012, 2013, 2022). Therefore, SBZ 12 is correlated with the boundary of chron C22n–C21r and the lower part of C21n, and thus, is located in the Ypresian–Lutetian transition. According to this correlation, Sites 1 and 2 can be dated between ∼49 and ∼47 Ma (Gradstein et al., 2020). On site 3, a SBZ 13 biomarker is found, giving a younger age. This biozone is early Lutetian and is calibrated as chron C21r to chron C20r (∼47–45.5 Ma, Gradstein et al., 2020).

3.2 Surface geological structure

The Clamosa diapir exposes a 5 km-long and 2.5 km-wide outcrop of Triassic evaporites, shales and carbonates (Fig. 4). It is bounded by outcrops (ranging from 0.5 to 2 km wide) of different units, consisting of the Jurassic and Upper Cretaceous to Cuisian pre-growth sequences and the Lutetian to Oligocene syn- to post-folding-diapirism sequences. To the north of the Clamosa diapir, the main structural features include the Mediano anticline, the Bruis syncline, and the Tozal de Trillo homocline (Figs. 4 and 5).

The Mediano anticline is a detachment fold cored by up to 3 km of Triassic evaporites and shales, and extends north of the Clamosa diapir for about 20 km. In the southern sector, it trends N-S, displays an east vergence, and plunges about 10° to the north (Poblet et al., 1998), before bending to a NW-SE orientation and terminating beneath the turbidites of the Aínsa basin (Fig. 4). Northeast of the anticline, the La Fueba system consists of a SW-directed, NNW-SSE trending fold and thrust system, which splays from the Montsec-Peña Montañesa thrust and mainly involves the Aínsa slope complex (Fig. 4).

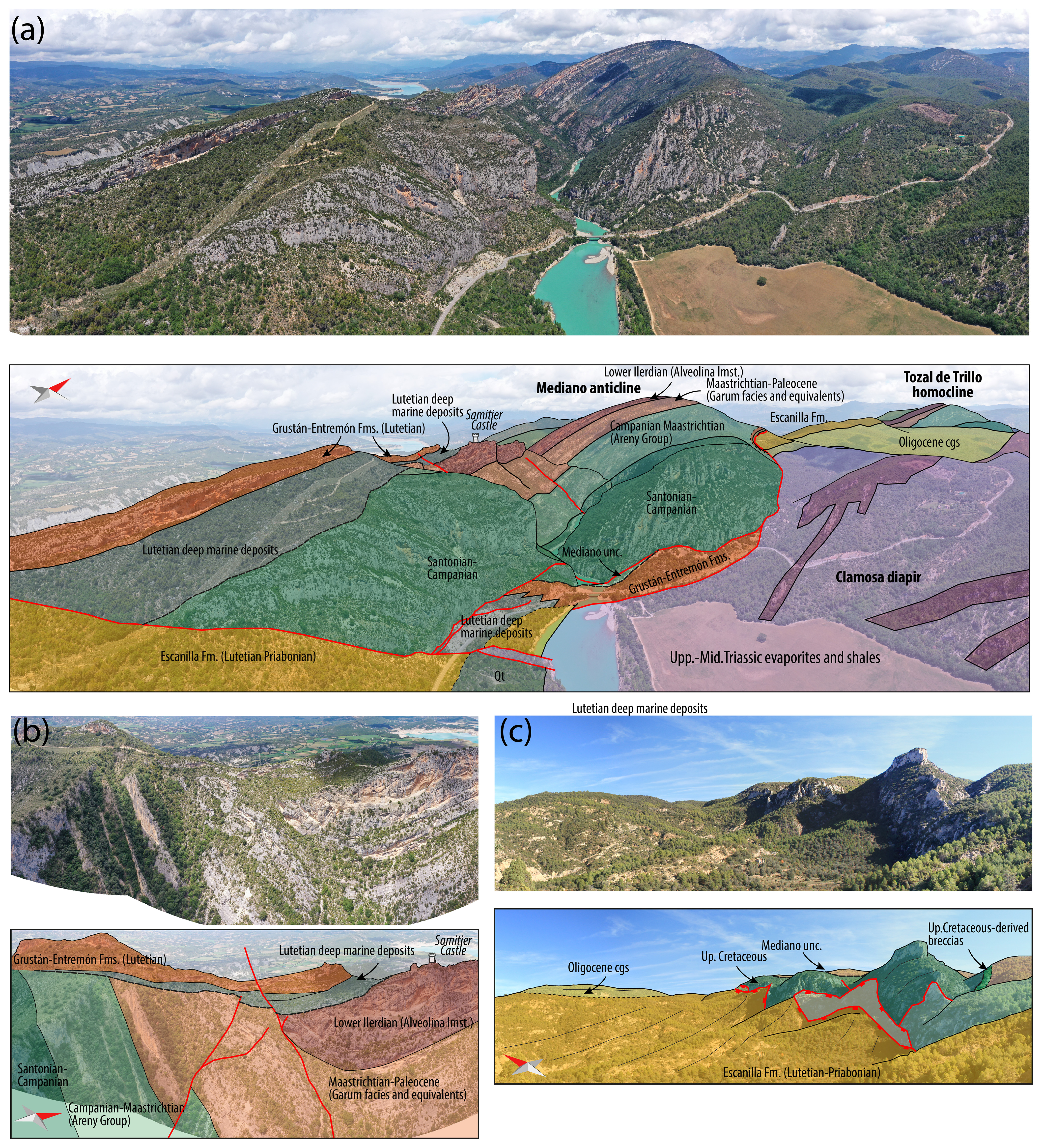

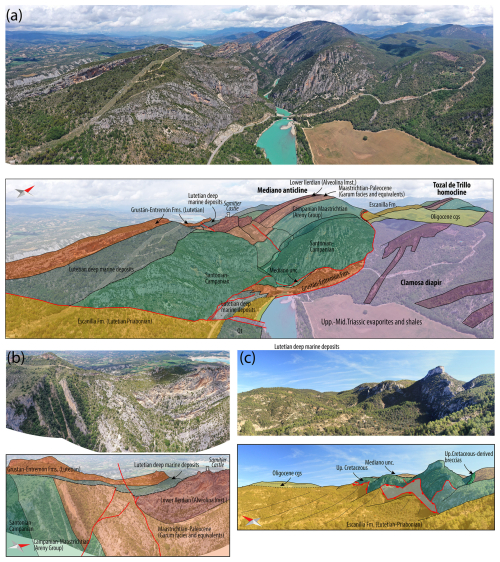

Figure 6 (a) Drone image of the northern boundary of the Clamosa diapir and the Mediano anticline and its interpretation. (b) Close up view of northwestern flank of the Clamosa diapir and Mediano anticline. (c) Interpreted picture of the NNE-SSW trending, west-dipping extensional faults related to the collapse of the diapir during Oligocene. See their location in Fig. 5.

A detailed examination of the southern termination of the Mediano anticline reveals that the north plunging crest line bends towards the NNE-SSW and becomes nearly horizontal, as proved by the map trace of the Santonian-Campanian to Campanian-Maastrichtian contact (Figs. 5, 6a). Folding dates from early Lutetian to Bartonian, as evidenced by syn-folding growth strata (Barnolas et al., 1991; Holl and Anastasio, 1993; Teixell and Barnolas, 1995; Bentham and Burbank, 1996; Poblet et al., 1998). In both limbs, the early Lutetian to Bartonian syn-folding sequence depicts the superposition of two single progressive unconformities (Fig. 5), defining a composite progressive unconformity with an intermediate and localized angular unconformity within the growth sequence (Poblet et al., 1998).

In the eastern limb of the anticline, the Palo thrust brings the steeply dipping pre- and syn-folding sequences eastwards over the Bruis syncline (Fig. 5). The Bruis syncline is a gentle fold that trends N-S, plunges to the south, and involves a succession comprising the Cuisian turbidites to the Oligocene conglomerates. Coring the syncline, the Oligocene conglomerates unconformably overlies the Bartonian-Priabonian Escanilla Fm., which in turn truncates the middle-upper Lutetian Sobrarbe Fm. along the eastern limb of the syncline. A N-S, subvertical, west dipping, normal fault bounds the Bruis syncline to the east. Further east, in its footwall, a WNW-ESE trending, 70° north-dipping, Upper-Cretaceous to Ilerdian sequence (i.e., the Tozal de Trillo homocline) is unconformably overlain by upper Cuisian turbidites. Notably, the Tozal de Trillo homocline succession is attributed to the Gavarnie-Sierras thrust sheet, as its Mesozoic to Cuisian succession resembles that of the Mediano anticline.

The boundary between the Mediano anticline and the Clamosa diapir is marked by a diapiric, structural contact that connects to the south and west with the N010E-oriented, east-dipping Ligüerre normal fault (Fig. 5). The footwall of this fault involves Lutetian to Priabonian units unconformably overlying Upper Cretaceous carbonates and Paleocene rocks to the north, close to the Samitier Castle (Figs. 5, 6a). Its hanging wall includes the Lutetian to Priabonian Escanilla Fm., either overlaying or truncated by Triassic rocks of the Clamosa diapir.

The boundary between the Clamosa diapir and the Oligocene conglomerates of the Bruis syncline stands as a 60° north-dipping normal fault, whose lateral continuation is challenging to trace, yet conglomerates dip towards the contact along most of the Oligocene outcrop pointing out that the normal fault likely continues to the east (Fig. 5). Further east, south of the Tozal de Trillo homocline, along the northeastern limit of the Clamosa diapir, Triassic rocks cropping out along a W-E, 500 m wide stripe are unconformably overlain by upper Cuisian-lower Lutetian marls (as dated after foraminifera content, Site 1, Fig. 5, see Appendix A).

In the eastern flank of the Clamosa diapir, the fluvial sediments of the Escanilla Fm. and the Oligocene conglomerates are truncated by a system of west-dipping curved or wavy NNE-SSW normal faults (Figs. 5, 6c). Its footwall predominantly consists of Upper Cretaceous units unconformably overlain by lower to middle Lutetian deltaic and carbonate units. There, the Upper Cretaceous succession is usually capped by a meter-thick breccia of Upper Cretaceous-derived rocks that rapidly grades upwards into lower Lutetian rocks. In the hanging wall of this fault system, the Oligocene conglomerates unconformably overlie the Escanilla Fm. and the Triassic evaporites. To the southeast of the Clamosa diapir, the Lutetian succession becomes nearly horizontal and is gently truncated by the Escanilla Fm. and the Oligocene conglomerates to the south.

In the southwestern flank of the Clamosa diapir, there is a 5.5 km long, NW-SE oriented, outcrop of folded and faulted Jurassic dolostones and Upper Cretaceous limestones and sandstones (Fig. 5). In the Carbazolas sector, the Mesozoic sequence is overlain by Lutetian carbonates, followed by Lutetian fluvio-deltaic units, carbonates and turbidites, generally trending NW-SE. This sequence features several internal unconformities, which may resemble or be equivalent to those found along the limbs of the Mediano anticline. This sequence is also unconformably overlain by the middle-upper Lutetian Sobrarbe Fm. and by the Lutetian-Priabonian Escanilla Fm. To the southeast, near Lapenilla village, Triassic evaporites extend for 2.5 km along a narrow band, trending NW-SE. There, upper Cuisian to lower Lutetian fluvio-deltaic rocks (as dated after foraminifera content, Site 2, Fig. 5, see Appendix A), unconformably overlie the Triassic to Upper Cretaceous succession. This stripe of Triassic evaporites links to a set of NNW-SSE to N-S faults that die out into the Oligocene conglomerates to the south (Fig. 5). To the west of the Mediano anticline and the Clamosa diapir, the most prominent structure at surface is the gently south-plunging Buil syncline (Fig. 4). The southern part of the area is extensively covered by Oligocene conglomerates, except for localized outcrops of folded and faulted Upper Cretaceous to Ilerdian rocks and Triassic evaporites coring elongated to rounded diapirs (Naval and La Puebla respectively) (Figs. 2, 4).

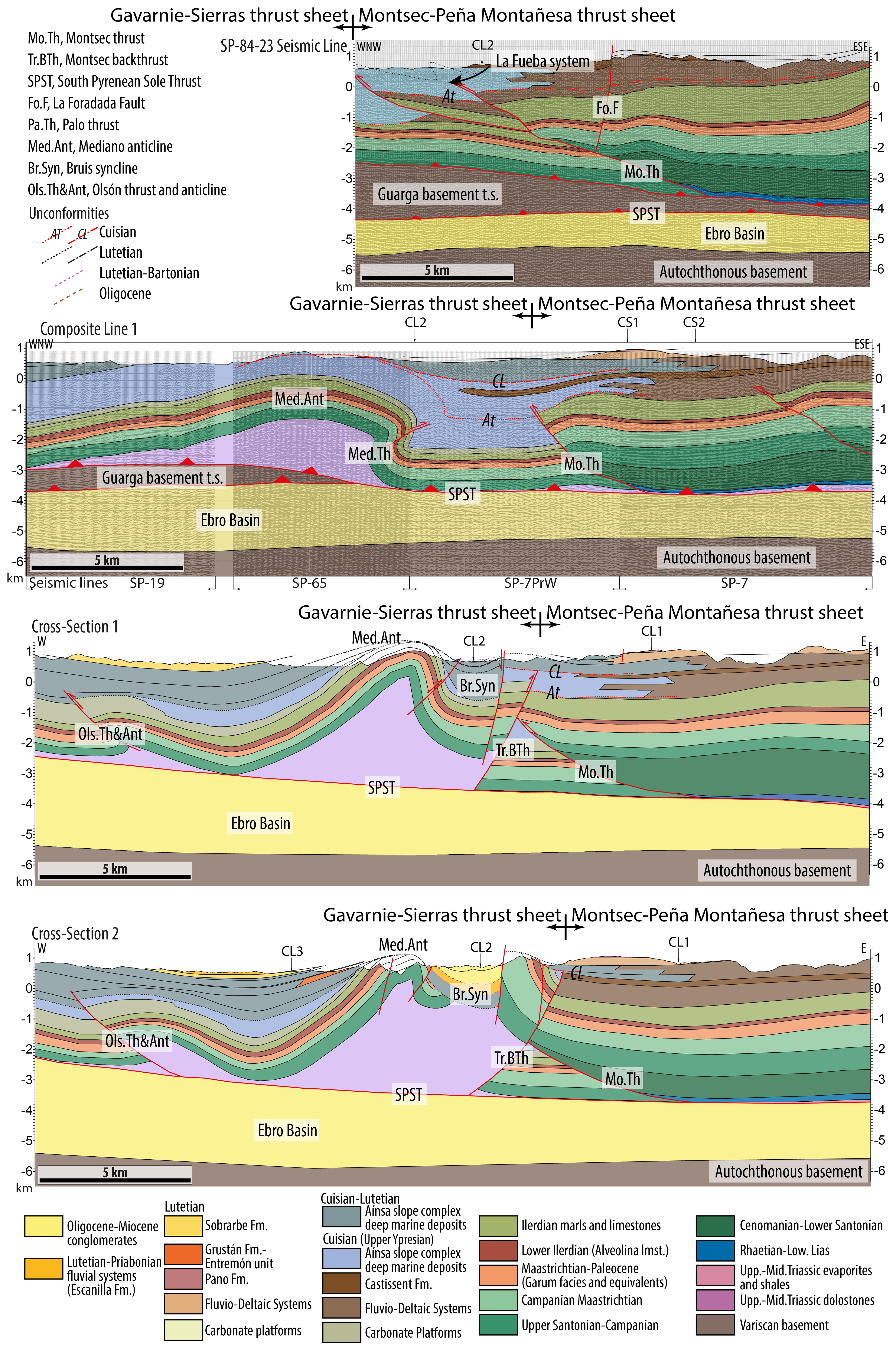

Figure 7 Cross sections and interpreted seismic lines illustrating the subsurface structure of the Montsec-La Fueba system (SP-84-23 seismic line), and the north to south along strike variability of the Montsec-Mediano anticline structures (Composite line 1, Cross-section 1 and Cross section 2). See Fig. 4 for location and Appendix B for the uninterpreted version of the seismic lines. Note that the thickness of the Upper Cretaceous to Ilerdian sequence in the Tozal de Trillo Homocline (Cross-sections 1 and 2) and the growth of the same sequence in cross-section 2 are apparent due to the low angle between the section traces and the strike of these tilted sequences there.

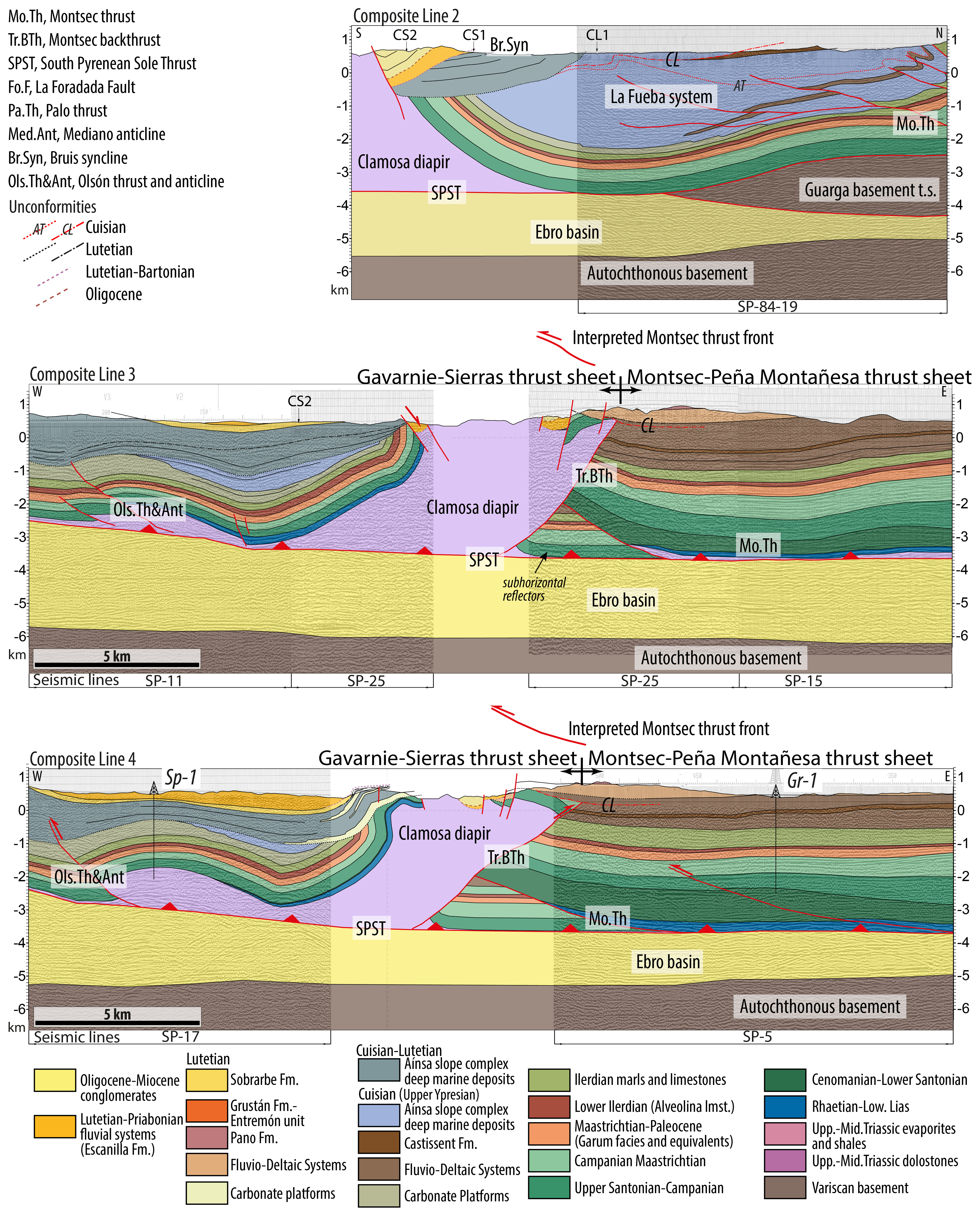

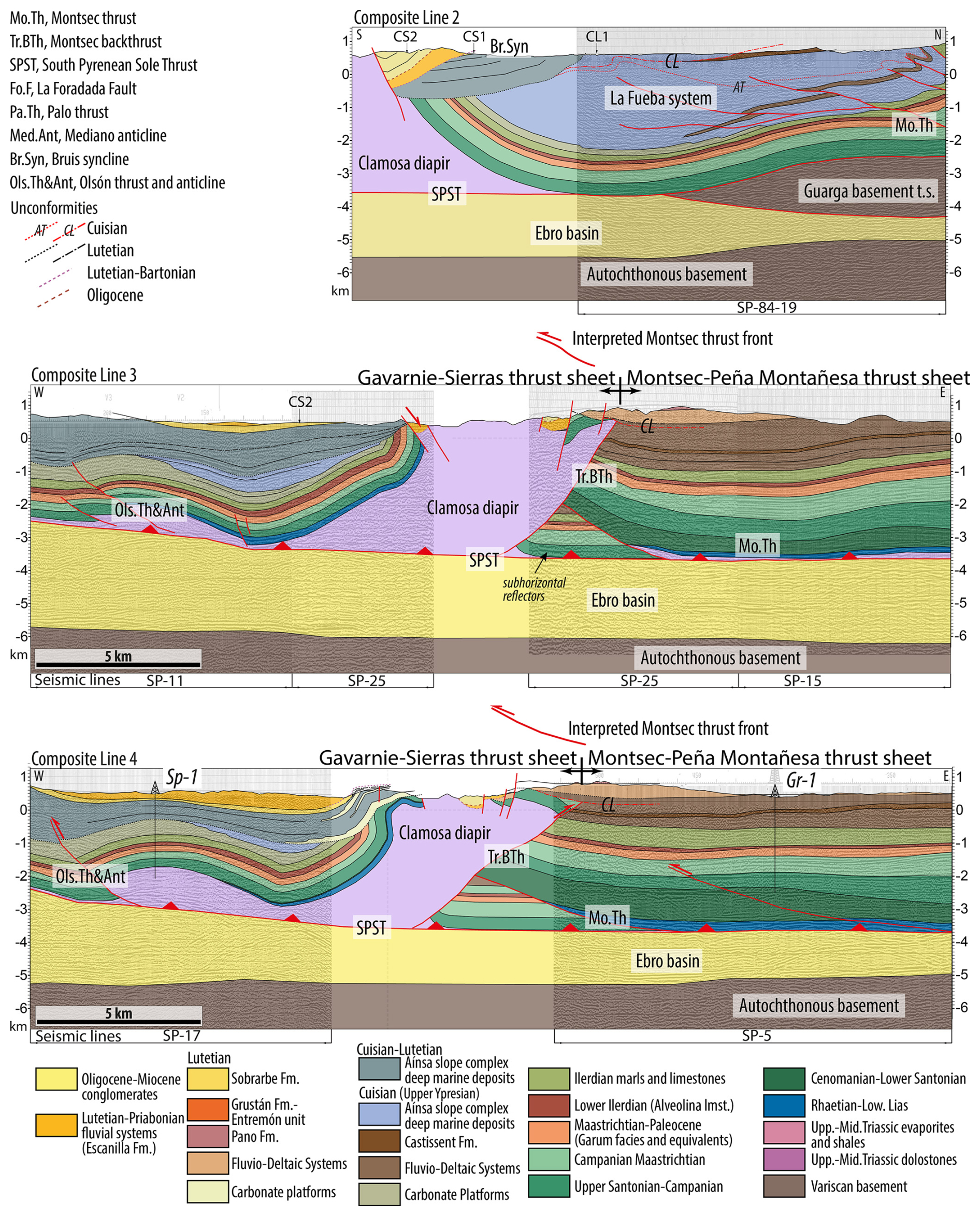

Figure 8 Interpreted Composite lines 2, 3 and 3 illustrate the subsurface structure of the Montsec-Clamosa diapir system. See Fig. 4 for location and Appendix B for the uninterpreted version of the seismic lines. Sp-1: Surpirenaica-1 exploration well. Gr-1: Graus-1 exploration well.

3.3 Seismic interpretation and subsurface structure

To illustrate the subsurface structure of the studied area, 12 seismic lines and 2 key cross-sections are used (see Fig. 4 for location and Figs. 7 and 8 for their interpretation). These seismic lines and cross-sections are strategically located: to the north, along the Aínsa basin (SP-84-23); across the Mediano anticline and the Montsec thrust sheet front (Composite Line 1, including the seismic profiles SP-19, SP-65, SP-7PrW and SP-7 and Cross Sections 1 and 2; see Fig. 7); across the La Fueba system and along the Bruis syncline (Composite Line 2, including seismic profile SP-84-19); and across the Clamosa diapir (Composite Lines 3 and 4 including the seismic profiles SP11, SP25, SP15, SP-17 and SP-5; see Fig. 8). The traces of deep-seated and buried structures derived from seismic interpretations and the construction cross-sections are represented in Fig. 4 as black and white dashed lines, aiding the description of the subsurface structure. The uninterpreted version of these seismic lines is provided in Appendix B.

3.3.1 The Montsec-Peña Montañesa thrust sheet

In the north of the study area, the Peña Montaseña thrust system links with the L'Atiart thrust, to the south and continues at depth with the Montsec thrust (SP-84-23 line, Figs. 4 and 7). The Montsec thrust sheet involves a Jurassic-Upper Cretaceous to Ilerdian succession, slightly truncated by the La Foradada tear fault and, further west, the thrust branches off into several thrusts belonging to the La Fueba System. Along Composite Line 1, the Montsec thrust sheet shows a similar geometry as in SP-84-23, but the La Fueba system and La Foradada fault are absent as they do not extend that far south (Fig. 4). To the south, the Montsec thrust acquires a NNE-SSW orientation and is truncated at depth by the Trillo backthrust (see Fig. 4 and Cross Sections 1 and 2 and Composite Lines 3 and 4, Figs. 7 and 8). The cross-sections generally show the Montsec-Peña Montañesa thrust sheet as a gently folded Triassic to Ilerdian succession, with nearly parallel seismic reflectors that thin towards the west and south (e.g. Soto et al., 2002; Fernández et al., 2012). In contrast, Cuisian–Lutetian sediments show tens of kilometres wide growth strata geometries, generally thickening towards the west (see Composite line 1 (Fig. 7). The truncation of the Montsec thrust sheet by the Trillo backthrust suggests that the frontal tip of the Montsec thrust was truncated, uplifted, exhumed and eroded (see below and Sect. 5 for further discussions).

3.3.2 The Gavarnie-Sierras thrust sheet

The Gavarnie-Sierras thrust sheet in the footwall of the Montsec-Peña Montañesa thrust sheet features a laterally variable geometry. Conversely to the Montsec-Peña Montañesa, the Gavarnie-Sierras thrust sheet shows a shorter structural wavelength, localized growth strata geometries hundreds-of-meters-wide, and a markedly thinner Triassic to Ilerdian succession that maintains the western and southern thinning trends.

To the north of the study area, in the footwall of the Montsec thrust, the Gavarnie-Sierras thrust sheet is distinctly imaged as a nearly parallel sequence detached over the Guarga basement thrust sheet, which in turn thrust over the Ebro basin foreland units (SP-84-23 and Composite Line 1, Fig. 7). In map view, the Guarga thrust has a curved shape with an overall N100W orientation, i.e. highly oblique to cover structures (Fig. 4). Along Composite Line 1 (Fig. 7) the Mediano anticline is imaged as an asymmetric, east-verging, open anticline, with its eastern limb truncated by a thrust.

To the south, the Mediano Anticline tightens and increases in amplitude. In cross-section 1 (Fig. 7), it features a wavelength of about 8 km and an amplitude of 3.6 km. The anticline appears as a slightly asymmetric detachment fold cored by a large accumulation of Triassic evaporites, with its western and eastern limbs dipping 40 to 70–80° to the west and east, respectively. Its western flank abuts the South Pyrenean sole thrust, but its eastern flank does not; it occupies a higher structural position below the Bruis syncline (Fig. 7, cross-section 1). Further south, along cross-section 2, the eastern flank of the Mediano anticline reduces to a thousand-meter-wide panel of Upper Cretaceous, with the Bruis syncline directly overlying Triassic evaporites. Composite Line 2 (Fig. 8) better illustrates the north to south shallowing of the Mediano anticline eastern limb, note this composite line run nearly parallel to it (Fig. 4). In the northern part of this composite line, the Montsec thrust and the La Fueba system thrust over a seismically well-imaged Upper Cretaceous-Lower Eocene sequence of the Gavarnie-Sierras thrust sheet. Both the Montsec-Peña Montañesa and Gavarnie-Sierras thrust sheets are tilted by the Guarga basement thrust sheet, with the tip point located halfway along the section. Seismic interpretation reveals that there is little to no Triassic evaporites between the Gavarnie-Sierras and the Guarga basement. Yet, they are decoupled. South of the tip point, the Gavarnie-Sierras sequence progressively acquires a north-dipping inclination as it approaches the Clamosa diapir (Fig. 8). Unconformably atop the Gavarnie-Sierras sequence, the Lutetian slope deposits of the Bruis syncline gently dip southward, towards the Clamosa diapir. And, unconformably on top of them, the Escanilla Fm. and the Oligocene conglomerates define a restricted trough towards the Clamosa diapir (Fig. 8, note that this section runs subparallel to the axis of the Bruis syncline).

Back to the W-E cross-sections (Fig. 7), a west dipping normal fault separates the Lutetian to Oligocene rocks of the Bruis syncline from the Tozal de Salinas homocline, which thrust over the Peña Montañesa-Montsec thrust sheet succession (see Trillo backthrust in Fig. 7, cross-sections 1 and 2).

Along the Clamosa diapir transects, in the western limb of the Mediano anticline, the pre-folding succession dips approximately 40–50° to the west, while near the Clamosa diapir, it becomes nearly vertical (SP-25, Composite line 3, Fig. 8) or is folded and overturned (Composite line 4, Fig. 8). Along the western flank of the diapir, Lutetian growth strata lie moderately to gently dipping in SP-11 (Composite line 3, Fig. 8) but are folded and faulted in Composite Line 4 (Fig. 8). The top of the Clamosa diapir is bounded by a set of diapir-converging faults that involve limited Upper Cretaceous rocks but mostly Lutetian to Oligocene units, which are suggested to lie directly on top of Triassic evaporites (Fig. 8). The eastern boundary of the diapir is represented by the Trillo backthrust that brings the Upper Cretaceous units to the surface (Figs. 5 and 8) and truncates the Montsec thrust (as in previous sections). The Trillo backthrust is a crucial structure that explains the absence of the trace of the Montsec thrust at surface east of the Clamosa diapir, a puzzling area that has challenged the connection between the Montsec thrust and the Peña Montañesa thrust (Fig. 4). Yet, the interpretation of the Trillo backthrust can be regarded as debatable: its trace does not crop out and it is not properly imaged in seismic lines. However, our backthrust interpretation is based on: (i) the fact that Upper Cretaceous-Ilerdian sequence with Gavarnie-Sierras Marginales affinity (Salinas de Trillo homocline and eastern flank of the Clamosa diapir) stands in a higher structural position with respect to its time-equivalent sequence in the Montsec thrust sheet (which is approximately two-times thicker) (Composite Lines 3 and 4, Fig. 8), (ii) the apparent absence of the tip of the Montsec thrust sheet as observed further north (e.g. Composite Line 1, Fig. 7) and (iii) the presence of a triangular piece interpreted as a remnant of the Gavarnie-Sierras units in the footwall of both the Montsec thrust and the Trillo backthrust. Interpretation supported by the presence of subhorizontal reflectors in the western termination of the SP-15 and SP-25 lines (Composite Line 3, Fig. 8 and Appendix B, Fig. B1d). Calculated slip is maximum in the vicinities of the Clamosa diapir (ca. 5 km, Composite Lines 3 and 4, Fig. 8) and decreases to the north (ca. 1.5 km in Cross-section 1, Fig. 7).

To the west of the Clamosa diapir and Mediano anticline, the Buil syncline appears as an open syncline. Beneath it, subsurface data reveal the existence of the Olsón anticline, a thrust-related anticline fossilized by Lutetian deposits. In map view, the Olsón anticline trends N-S to N150E for approximately 11 km (Fig. 4) and links with the Naval diapir.

4 Structural evolution of the Clamosa diapir and Mediano anticline in the western South Pyrenean Central Salient

This section aims to frame the formation of the Clamosa diapir and the Mediano anticline within the structural and kinematic evolution of the western half of the South Pyrenean Central Salient, and contextualize the formation and evolution of salt diapirs in contractional settings. As introduced earlier, this area of the Pyrenees is characterized by along strike structural changes and N-S trending structures that underwent up to 80° of syn-orogenic vertical axis clockwise rotation (Mochales et al., 2012; Muñoz et al., 2013). In this context, we propose that the Clamosa diapir is a purely contractional diapir whose salt accumulation is inherited from a Triassic extensional basin that was incorporated into the fold-and-thrust belt system together with the formation of the Trillo backthrust and the Mediano anticline. So, we interpret the formation of the Clamosa diapir as a combination of salt inflation, folding and thrusting, followed by piercing of the cover triggered by erosion and longitudinal stretching upon vertical axis rotation. Finally, the diapir underwent extensional collapse. In the following, we provide a detailed and justified evolutionary model for the Clamosa diapir, the Mediano anticline and La Fueba thrust system. The proposed evolution is illustrated and discussed through schematic sections (Fig. 9) and a plan view restoration (Fig. 10).

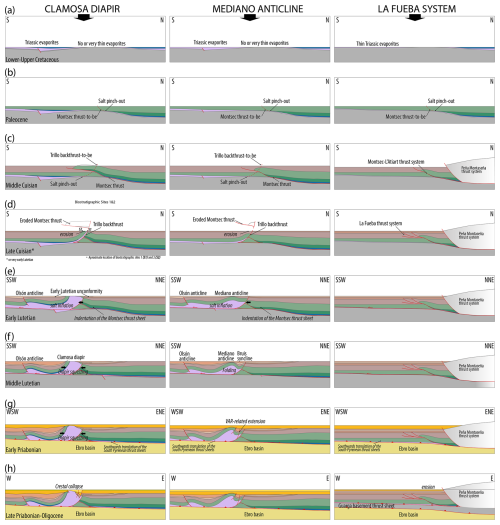

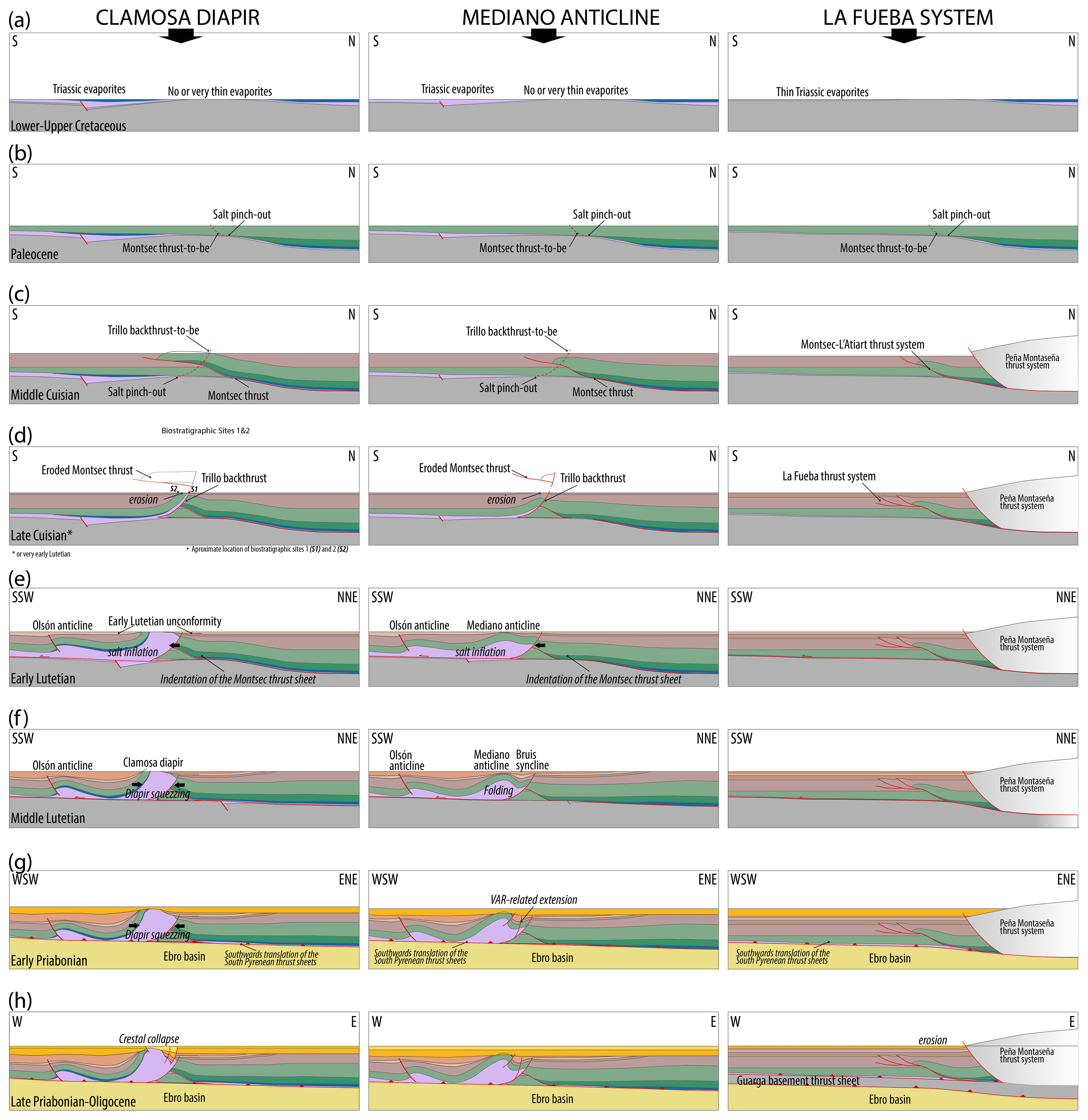

Figure 9 Stepped reconstruction that illustrates the along strike differences of the formation of Clamosa diapir (left column), the Mediano anticline (central column) and the Peña Montañesa-La Fueba system (right column). Sketches gather representative surface and subsurface geological information; they are not structural restorations. Obliqueness, out-of-plane deformation and vertical axis rotation prevent any reliable cross-section restoration. Yet, some of the ideas illustrated here come from local and punctual restorations. Note the change in the orientation of the sketches. Such changes account for the Middle to Late Eocene vertical axis rotation. An approximate location of the section is shown in the plan view reconstruction of Fig. 10.

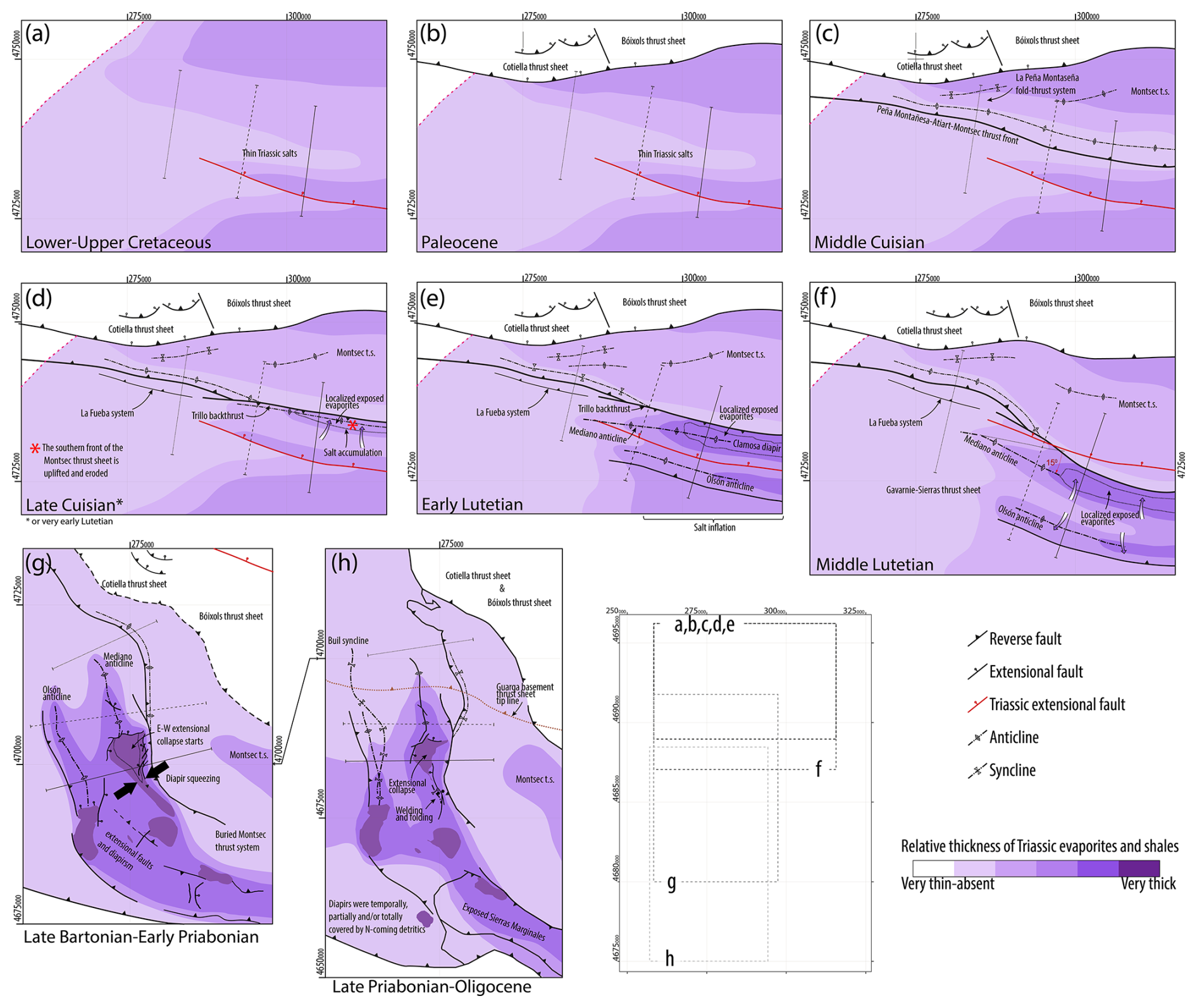

Figure 10 Plan view reconstruction of the studied area (partly modified from Muñoz et al., 2013; Santolaria et al., 2014). Weak to strong purple denote thin to thick Triassic salt accumulations. Red line represents the basement normal fault bounding the southern salt basin as seen in Fig. 9.

The Clamosa diapir belongs to a salt tectonics province in the Gavarnie-Sierras thrust sheet, characterized by thick Middle-Upper Triassic evaporites, mudstones and carbonates. In this province, diapirs have pierced the Upper Cretaceous to Miocene succession and have been fed from a thick salt layer as revealed by geological surface and subsurface data, and gravity data (Fig. 4, Santolaria et al., 2016, 2024). A key point in the study area is the original distribution and thickness of the Triassic evaporites and the timing of interpreted salt inflation events. Burrel and Teixell (2021) postulated a thick and continuous Triassic evaporitic basin, over a faulted basement, thickening northwards from 1 km in the southern Gavarnie-Sierras thrust sheet to 3 km beneath the Montsec thrust sheet. These authors suggest that accommodation space of Jurassic to Upper Cretaceous basins resulted from downbuilding and the surrounding salt walls fed by salt flow in multiple directions (Burrel and Teixell, 2021). They suggested that downbuilding coexisted with shortening since Palaeocene, and the salt walls were subsequently squeezed during the Paleogene. On the other hand, Santolaria et al. (2016) suggested that the salt in the Gavarnie-Sierras thrust sheet was inflated by salt flow evacuated from beneath the Montsec thrust sheet as it was transported to the south. Conversely, Hudec et al. (2021) proposed that the salt province of the Gavarnie-Sierras thrust sheet developed in an isolated southern Triassic graben and that salt flowed northward from Jurassic to Upper Cretaceous times. Salt would have been inflated against the structural high bounding the basin northwards that would coincide with the Montsec thrust sheet and the Graus-Tremp piggy-back basin. The Montsec thrust would correspond to a salt wall developed since late Jurassic, with its western tip corresponding top the Clamosa diapir (Hudec et al., 2021). To tackle the question of the pre-shortening distribution of Triassic evaporites, we focused on the distribution of some distinct Mesozoic units around the Clamosa diapir, mainly the Lower Jurassic carbonates and the postrift Upper Cenomanian limestones (Fig. 3). In the study area, along the Gavarnie-Sierras Marginales thrust sheet, Middle-Upper Triassic evaporites are usually topped by Upper Cretaceous rocks, therefore, the presence of Lower Jurassic carbonates or Upper Cenomanian limestones represents an anomaly. Hettangian carbonates are also observed around the diapirs of the salt tectonics domain extending south of the Clamosa diapir (as in the Naval diapir, Fig. 1, Santolaria et al., 2014) and are also unevenly distributed along some of the southern thrust sheets of the central Sierras Marginales (e.g. Burrel and Teixell, 2021). We propose that presence of these rocks relates to their deposition over relatively thicker Middle-Upper Triassic depocenters: such depocenter were prone to accommodate the Lower Jurassic carbonates and later on the Upper Cenomanian limestones, that might sink by differential loading, and prevent their erosion. The Triassic evaporites were deposited during the last stages of the first rifting event that affected Iberia during the break-up of Pangea (López-Gómez et al., 2019). Above, the Hettangian carbonates represent either the last stages of rifting or the start of the sag phase. Triassic basins have been completely inverted and deformed during Pyrenean deformation, yet some of them can be reconstructed (López-Gómez et al., 2019). In the Clamosa diapir, the presence of the Lower Jurassic carbonates at its southern margin suggests the existence of an Upper Triassic depocenter, in contraposition of the northern margin of the diapir where the Upper Cretaceous sediments rest directly above the Keuper, pointing out to the existence of a structural high (Fig. 9a, b). Interestingly, a 20–30 m-thick Upper Cenomanian sequence is also preserved in what it was the southern basin, and which is nowadays the southwestern limb of the Clamosa diapir (Fig. 5). This sequence developed northwards in the Montsec thrust sheet above the Middle-Upper Triassic evaporites and a thicker and more complete Jurassic succession, on what it was the proximal domain of the North Iberian Early Cretaceous rifted margin. Thus, in the central part of the study area a southern salt basin would be separated from a northern basin by a structural high, aligning with the interpretation by Hudec et al. (2021). However, from our observations, this high is located south of the Montsec thrust and would have controlled the location of the Montsec thrust as well as the Trillo backthrust. Moreover, the southern basin, would be oblique to the northern one and terminates to the west. It would be most probably connected with the northern salt basin eastward, as suggested by the deposition of the Upper Cenomanian limestones. In any case, the observed salt structures, as well as thrusts and related folds would have been controlled by the pre-shortening 3d configuration of the Triassic basins and highs.

The absence of any Middle Jurassic to Upper Cretaceous stratigraphic record in the western Sierras Marginales, including the salt province above referred, do not support the idea of salt flow during this time, and consequently the formation of salt structures. The Santonian to Paleocene succession formed a south and west-thinning sedimentary wedge above the southern Triassic basin, as well as atop of the structural high and the Peña Montañesa-Montsec thrust sheet (Fig. 9b). There is no evidence of local thickness changes of this succession, discarding any local salt movement in this area during Late Cretaceous to late Cuisian (Fig. 9b), contrary to what is observed eastward in the Gavarnie-Sierras thrust sheet (Hudec et al., 2021; Burrel and Teixell, 2021; Ramirez-Perez et al., 2024). Deposition of this Upper Cretaceous to Paleocene succession occurs at the same time as the Cotiella-Bóixols thrust sheet and related basement thrust sheets were already emplaced north of the studied area (Fig. 10b).

Later, between Paleocene and Cuisian, the Montsec thrust emplaced as a SSW-directed thrust (Fig. 10c) coevally to the sedimentation of fluvio-deltaic and deep marine sequences along the Tremp-Graus and Aínsa basin slope complex, respectively. The Montsec thrust likely nucleated at the southern pinch-out of the northern salt basin (note that pinch-out does not necessarily refer to the disappearance of Triassic evaporites but to a significant thinning of them that may represent a mechanical discontinuity in the salt décollement) (Fig. 9c).

Table 1 Biostratigraphic sites, samples, biomarkers and biozones. Sites refer to those in Fig. 5.

Following the emplacement of the Peña Montañesa-L'Atiart-Montsec thrust system, contractional deformation was transmitted to the southern salt basin and the Trillo backthrust formed (Fig. 9d) as one of the earliest structures related to the deformation of the Gavarnie Sierras thrust sheet. Emplacement of the Trillo backthrust has been dated after foraminifera content. Emplacement postdates the Montsec-Peña Montañesa thrust sheet, since the Trillo backthrusts truncates it, and predates deposition of SBZ12 sediments (see Sect. 3.1, Table 1) found in Salinas de Trillo (Site 1) and Lapenilla (Site 2) villages; these SBZ12 sediments overlay Triassic evaporites and shales (Figs. 7 and 8). This backthrust formed as WNW-ESE structure along the northern edge of the southern salt basin, synchronously with the La Fueba system westward the edge of the southern salt basin (Fig. 10d). Its emplacement involves the truncation of the Montsec thrust whose southern termination was brought upwards, exposed and eroded together with the Gavarnie-Sierras succession. Structural uplift was significant enough to bring up the Triassic evaporites to the surface, as observed and dated in the NE and SE corner of the Clamosa diapir (see biostratigraphic Sites 1 and 2, Fig. 5 and Appendix A) where upper Cuisian to earlier Lutetian deposits unconformably overlies Triassic evaporites and shales.

Coeval to soon after the emplacement of the Trillo backthrust, salt inflation took place along the southern salt basin (Figs. 9e, 10e, the nature of inflation is discussed in the following section). Inflation was maximum in the vicinity of the Clamosa diapir and south of it and progressively attenuated to the WNW to finally disappear towards the pinch-out of the Triassic evaporites and shales (Fig. 10e). During the squeezing of the southern salt basin, the Mediano and Olsón anticlines grew (Figs. 9e, 10e). The Mediano anticline registered a peak of uplift during early to middle Lutetian as shown by the stratigraphic record, subsequently decelerating during middle to late Lutetian (Poblet et al., 1998). At that time, the Olsón and specially the Mediano anticline tightened while the syncline in between both deepened into salt (Fig. 9f). Anticline growth occurred synchronous to their vertical axis rotation (Muñoz et al., 2013) while the Clamosa diapir was being squeezed (Figs. 9f, 10f).

During Bartonian-Priabonian times, folding of the Mediano anticline slowed down and halted. At that time the fluvial deposits of the Escanilla Fm. deposited extensively over the area (Fig. 9g). The Escanilla Fm. lies directly on top of Triassic evaporites and shales of the Clamosa diapir suggesting a continuous surficial extrusion of Triassic at that time. This took place synchronously to the southward translation of the Pyrenean thrust sheets that thrust over the Ebro foreland basin deposits (Figs. 9g, 10g). During this event, differential displacement triggered a second phase of clockwise vertical axis rotation that lasted from Priabonian to Chattian (Muñoz et al., 2013). Differential displacement was partially favoured by the differential closure of the Clamosa diapir, which resulted in welding of the diapir's southern edge (Fig. 10h). Later on, during Late Priabonian and Oligocene, crestal collapse of the Clamosa diapir occurred (Fig. 9h). This Late Eocene to Oligocene diapir collapse is evidenced by (i) N-S extensional faulting into the diapir in the eastern and western flanks where the Escanilla Fm. and Oligocene conglomerates are deposited on the hanging wall of these faults and (ii) north-directed normal faulting of the Bruis syncline where the Escanilla Fm. and Oligocene conglomerates filled a localized depocenter north of Trillo town.

5 Discussion

Despite diapirism is less common in contractional settings than in extensional ones (i.e., Vendeville and Jackson, 1992; Jackson and Vendeville, 1994) it is also a remarkable feature in many fold-and-thrust belts. Those that incorporate and deform pre-shortening early salt structures in rift to rifted margins settings (e.g., Granado et al., 2021, 2023; Santolaria et al., 2021b, 2022) usually display a larger budget of salt and salt-related features, such as the Fars province of the Iranian Zagros (Jahani et al., 2009; Snidero et al., 2020) or the Persian Gulf (Perotti et al., 2016; Snidero et al., 2020), the Northern Calcareous Alps of Austria (Granado et al., 2019; Strauss et al., 2023; Fernández et al., 2024), the Betic Cordillera of Spain (Escosa et al., 2018; Flinch and Soto, 2022; Canova et al., 2025), the sub-alpine fold-thrust belt of Haute Provence (Graham et al., 2012) or the North Pyrenean Zone (e.g. Teixell et al., 2016; Espurt et al., 2019).

Salt is easily mobilized upon contraction. Due to its viscous behaviour, shortening of salt horizons entail their immediate redistribution by generalised thickening. Yet, diapirism in contractional systems with no inherited salt structures is commonly hampered by several factors, fundamentally the strengthening of the sedimentary overburden by thickening, either by means of thrust stacking, syn-contractional sedimentation or both. However, salt inflation, overburden piercing and salt extrusion to the syn-orogenic surface can happen when a series of factors coalesce. So, diapir-favouring processes in fold-and-thrust belts include: a thin and weak sedimentary overburden, either pre-existent, or developed by other means, such as by erosion, faulting, restricted sedimentation on top of inflated salt bodies, or combinations of these. Erosion and faulting of thrust wedges and related folds can happen by emergent thrusting and thrust stacking, amplification of detachment folds and formation of fold-accommodation faults (e.g., Coward and Stewart, 1995; Sans and Koyi, 2001; Santolaria et al., 2015; Mitra, 2002; Rowan, 2020). A mobile salt detachment thicker than its sedimentary overburden will strongly favour diapir-formation as well, particularly in combination with the above-mentioned elements. Some of these factors coalesce in the Clamosa diapir, being inflation of the Triassic evaporitic horizon during early Lutetian one of the keystone ones. Salt inflation is inferred after the structural uplift of the Jurassic to early Cuisian succession observed in the Gavarnie-Sierras thrust sheet as registered by the basal Lutetian unconformity (Fig. 9e). Such uplift mainly resulted from shortening of the southern Triassic basin. It can be argued that salt might come from the east, but this was also an area of inflation at that time; or from the west as proposed by Holl and Anastasio (1993), but there is no evidence of salt withdrawal structures or growth strata currently north of the Clamosa diapir (west in Lutetian times); or from the north, from the Montsec thrust sheet as proposed by Santolaria et al. (2016), since there was no across-strike connection of the northern and the southern Triassic basins. So, we propose that salt inflation resulted from the thickening of the Triassic salts of the southern Triassic basin due to the displacement of the Montsec thrust front to the SSW. The Montsec thrust front acted as a buttress that embedded into salt while preventing it to migrate northwards.

Balance between favourable and unfavourable factors during mountain building is sensitive to subtle changes that may enhance or halt the formation of diapirs. In their seminal work, Sans and Koyi (2001) propose erosion of anticlines rising to the top free surface increases differential loading on the underlying décollement salt layer and thins and weakens their overburden, promoting diapirism without any change in the dominant contractional tectonic regime. In a simplistic 2D approach of a contractional system, detachment anticlines increase the cross-sectional area during the early stages of development (i.e., Poblet et al., 1998) to allow salt flow towards their cores, while erosion has to be sufficiently deep-reaching for salt to pierce its overburden. As shown for an Appalachians case by Wiltschko and Chapple (1977), open detachment folds with interlimb angles >70° allow salt to accumulate in their cores, whereas fold tightening conversely will promote backflow into the underlying source layer. Since detachment folds need syn-contractional sedimentation to amplify and grow (Poblet et al., 1998), the synclinal troughs adjacent to growing anticlines are depositional sites that sink below the regional level by evacuating salt from the underlying décollement (Mitra, 2003), as it has been interpreted for the syncline between the Mediano and Olsón anticlines (compare Fig. 9e and f) . In the crestal area the salt/overburden thickness ratio is greater than both the initial ratio and that under the synclinal troughs. Sedimentation rate must be lower than uplift rate for the growing detachment anticline to keep the hinge zone accessible for erosion (i.e., uplift rate lowers towards the final stages of fold growth by limb rotation; Poblet and Hardy, 1995). When erosion thins or removes the hinge zones of salt-cored anticlines, the resulting differential loading with the adjacent synclinal troughs promotes salt flow inwards and toward the lower pressure core and hinge zone of the anticline. Then, piercing can take place when a critical overburden thickness is reached.

Some of these diapirism triggers have been invoked in the Eastern Romanian Carpathians fold-and-thrust belt, where the so-called Moreni-Baicoi “salt lineament” constitutes a 30 km long squeezed diapir (i.e., Schleder et al., 2019; Tămaş et al. 2021). The formation of such salt diapir, aligned with the dominant NE-SW striking structural grain of the fold-and-thrust belt must have been favoured by some kind of overburden weakening process or processes, since salt per se cannot pierce trough the reported ca. 2–3 km thick overburden originally burying the feeding salt horizon. In this sense, local extensional faulting in the transition from frontal to lateral thrust ramps was proposed by Munteanu et al. (2018), which is a plausible mechanism in the lateral terminations of arcuate thrust salients, such as that of the South-Central Pyrenees (Muñoz et al., 2013, 2024). Alternatively, Stefanescu et al. (2000) proposed that a middle-to-late Miocene (i.e., Meotian–Pontian in the local Para-Tethyan chronostratigraphy) extensional phase allowed for salt extrusion to the paleosurface. More recently, Schleder et al. (2019) propose that a large erosional phase in between shortening phases (the large basal Meotian unconformity) deeply eroded the structural culminations of salt-cored detachment anticlines, allowing for the salt rise and flare onto the synorogenic paleosurface. These authors argue that no clear evidence for such phases of regional extension and thick-skinned left-lateral slip are present, as proposed by Stefanescu et al. (2000), while the last deformation phase rejuvenated and squeezed Carpathian salt structures.

Another interesting place for understanding the formation of purely contractional diapirs is the Sureste basin in the Gulf of Mexico (Sánchez Rivera et al., 2011; Davison, 2020). The Sureste basin displays one of the best examples of salt diapirs associated with contraction structures in a deep-water setting, with some salt-detached anticlines reaching astounding structural reliefs of more than 10 km (e.g., Rowan et al., 2022). Large erosional peneplanations under deep water conditions are highly unlikely in comparison to onshore shortening systems, and other processes must be responsible for diapirism to occur. In this area, the 3D interaction between detachment folding, thrust faulting, and salt diapirism is exceptionally constrained by seismic data and the key question is whether the salt diapirs predated the shortening or broke out during the contractional deformation. In their reported interpreted seismic sections, the hinges of upright detachment folds are thinned by extensional faults (Rowan et al., 2022) where some of these crestal extensional faults are conjugate and dip inwards in opposite senses, indicating outer arc extension accommodating concentric folding. Laterally, these faults pass into a series of listric convex upwards extensional faults, suggesting extensional collapse of the anticline's crest as reported for other deep-water gravity driven fold-belts (Morley, 2009). The interaction of detachment folding with thrusting and extensional collapses are the main cause for the extrusion of salt a surface since large erosional events are highly unlikely.

In our Pyrenean scenario, an additional process has contributed fundamentally to the formation and evolution of the Mediano anticline and the Clamosa diapir. Beside erosion, localized extensional faulting has also promoted thinning of the overburden. The youngest structures are extensional faults (Teixell and Barnolas, 1995; Fernández, 2013) with a variable trend from N–S to E–W. The most prominent one has a curvilinear map pattern and a throw of about 1 km that cuts the Montsec-Peña Montañesa thrust sheet and the Gavarnie thrust sheet below (the Balupor-San Marzial fault; Fernández, 2013). Extensional faults of this system obliquely truncate several anticlines of the Aínsa oblique zone and are spatially associated with extensive Triassic outcrops (Muñoz et al., 2013). In cross section, these extensional faults appear as collapse features of the anticlines as they partially reactivate their related thrusts at depth (e.g., Tavani et al., 2006). Since these extensional faults control along-strike changes in the geometry of anticlines their occurrence suggests some synchronicity with fold growth (Fernández et al., 2012) and are known to be active at least until Priabonian times since these faults offset late Eocene sediments. The extensional faults defining the boundary between the Mediano anticline-Bruis syncline and the Clamosa diapir are similar in nature to the Balupor-San Marzial fault in that they both are interpreted to be contained entirely within the Gavarnie thrust sheet. The extensional faults are active until the Oligocene at least, since they cut through sediments of that age, and crosscut the entirety of the Mediano anticline. Furthermore, the Balupor-San Marzial and the Clamosa faults are located where the N–S striking Aínsa oblique structures swing to a NW–SE trend northwards in the case of the Balupor-San Marzial and southwards in the case of Clamosa.

The origin of these extensional features relates to the contractional phase concomitant with the clock-wise vertical axis rotation of the Aínsa Oblique Zone (Fig. 4). Paleomagnetic data from the N–S trending structures of the Aínsa Oblique Zone reveals the kinematics of the South-Central Pyrenees thrust salient (Mochales et al., 2012; Muñoz et al., 2013). These structures experienced clockwise vertical axis rotations that vary from 70° in the Mediano anticline to 55° further to the west. Rotations of about 60–45° occurred from early Lutetian to late Bartonian when the Clamosa diapir and Mediano anticline developed. Rotation was partially accommodated by squeezing of a salt inflated area, the oblique to strike-slip reactivation of former thrusts, and by the formation of new extensional faults, all these contributing to the thinning of the overburden and diapirism, as indicated by the spatial association of these faults to outcrops of Triassic evaporites. In the case of the Mediano anticline, rotation progressively diminished as recorded by its growth strata. Starting during the early Lutetian, the decrease in the amount of rotation has been observed from 47.5 Ma onward. Syn-folding rotation continued at a decreasing rate at least into the Priabonian. This vertical axis rotation stage resulted from a difference of about 50 km in the amount of displacement on the Gavarnie thrust and an accompanying change in structural style at crustal scale from the central to the western Pyrenees. Such change has been interpreted originally as related to the NE–SW trending pinch out of Triassic evaporites at its basal (Muñoz et al., 2013), and has been recently tested as well by means of sandbox analogue models (Muñoz et al., 2024).

Finally, during Priabonian to Oligocene the crest of the Clamosa diapir collapsed. In contractional settings and regardless if pre-existing or newly formed diapirs exist, they are prone to be squeezed and finally welded. It is at this point when crestal collapse may occur. Squeezing of a diapir leads to the creation of an active summit dome that eventually collapse when it disconnects from the salt feeder, or squeezing stops (commonly by secondary welding) (e.g. Santolaria et al., 2021a, b). Crestal collapse is a phenomenon that takes place locally, involving just the crest of the diapir. There salt flows and readjusts creating local extension and salt extrusions. Evidence of this is the topographic distribution of Triassic salt in the Clamosa diapir where nowadays top of Triassic salt is located few hundreds meters above the base of the collapse-related Oligocene sequence.

6 Conclusions

The northwestern termination of the South-Central Pyrenean Salient serves as an outstanding scenario that exemplifies the evolution of purely contractional diapirs. First, syn-growth sediments provide an excellent dating tool for deciphering the structural evolution within areas tens of kilometres wide. As discussed, the formation of the Clamosa diapir responds to a combination of multiple factors that can be taken as a rule of thumb for diapir initiation and evolution within contractional settings. These include: the occurrence of a thick salt accumulation relative to its sedimentary overburden previous to the onset of shortening, the inflation of it upon shortening and a series of concomitant processes that thin this overburden to the point that salt can pierce through it. These can be folding, uplift, and thinning of the overburden, either produced by erosion or local extensional faulting related first to the vertical axis rotation of the western termination of the South Pyrenean Central Salient and later by the crestal collapse of the diapir. Conversely, in the La Fueba system 15 km to the north of the Clamosa diapir, thin or absent salt, thrust stacking and moderate to high syncontractional sedimentation led to the formation of a contractional thrust system instead. The Mediano anticline could be considered as an intermediate member in which salt accumulated in its core, but erosion was not significant enough to expose it. All in all, our emplacement and growth model for the Clamosa diapir, the Mediano anticline and the La Fueba thrust system illustrates how along strike changes in salt and cover thicknesses, thrust stacking and erosion-sedimentation processes lead to lateral variations that may trigger or hinder diapirism in contractional settings. Examples from other contractional settings such as the Eastern Romanian Carpathians and the Sureste basin of Mexico suggest a key role of regional erosional episodes in the flaring and extrusion of salt from the cores of detachment anticlines, or the extensional faulting to accommodate folding, or due to gravitational collapses of hinges and flanks in promoting diapirs under contraction regimes.

Appendix A: Bioestratigraphy samples

Figure A1 Assilina maior (a–e) and A. cuvillieri (f–j). (a) A. maior, B form, equatorial section. (b) A. maior, B form, external view. (c) A. maior, A form, external view. (d, e) A. maior, A form, equatorial section. (f) A. cuvillieri, B form, equatorial section. (g) A. cuvillieri, B form, external view. (h, i) A. cuvillieri, A form, equatorial section. (j) A. cuvillieri, A form, external view. All samples from sample ST-1. All samples 5×.

Figure A2 Nummulites manfredi (a–f) and N. aff. boussaci (g–m). (a) N. manfredi, B form, equatorial section. (b) N. manfredi, B form, external view. (c, e) N. manfredi, A form, equatorial sections. (f) N. manfredi, A form, external view. (g, h) N. aff. boussaci, B form, equatorial sections. (i) N. aff. boussaci, B form, external view. (j, k) N. aff. boussaci, A form, equatorial sections. (l, m) N. aff. boussaci, A form, external views. Samples (a)–(f) from sample LP-1, samples (g)–(m) from sample Cb-4. All samples 5×.

Figure A3 Nummulites campesinus. (a, b) N. campesinus, B form, equatorial sections. (c, d) N. campesinus, B form, external views. (d) N. campesinus, B form, equatorial section. (f–h) N. campesinus, A forms, equatorial sections. (i–k) N. campesinus, A form, external views. All samples from sample ST-1. All samples 5×.

Appendix B: Uninterpreted version of seismic lines

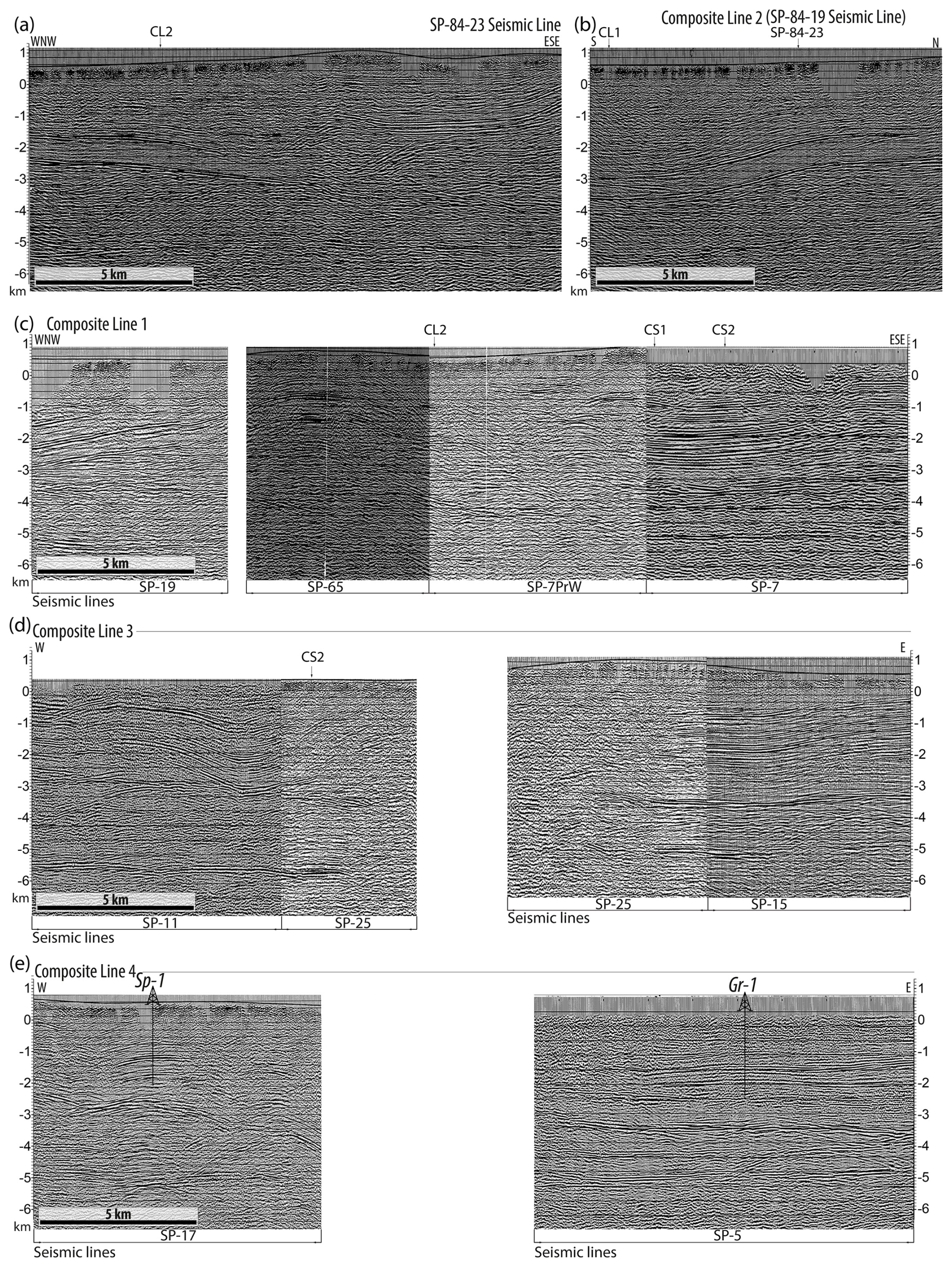

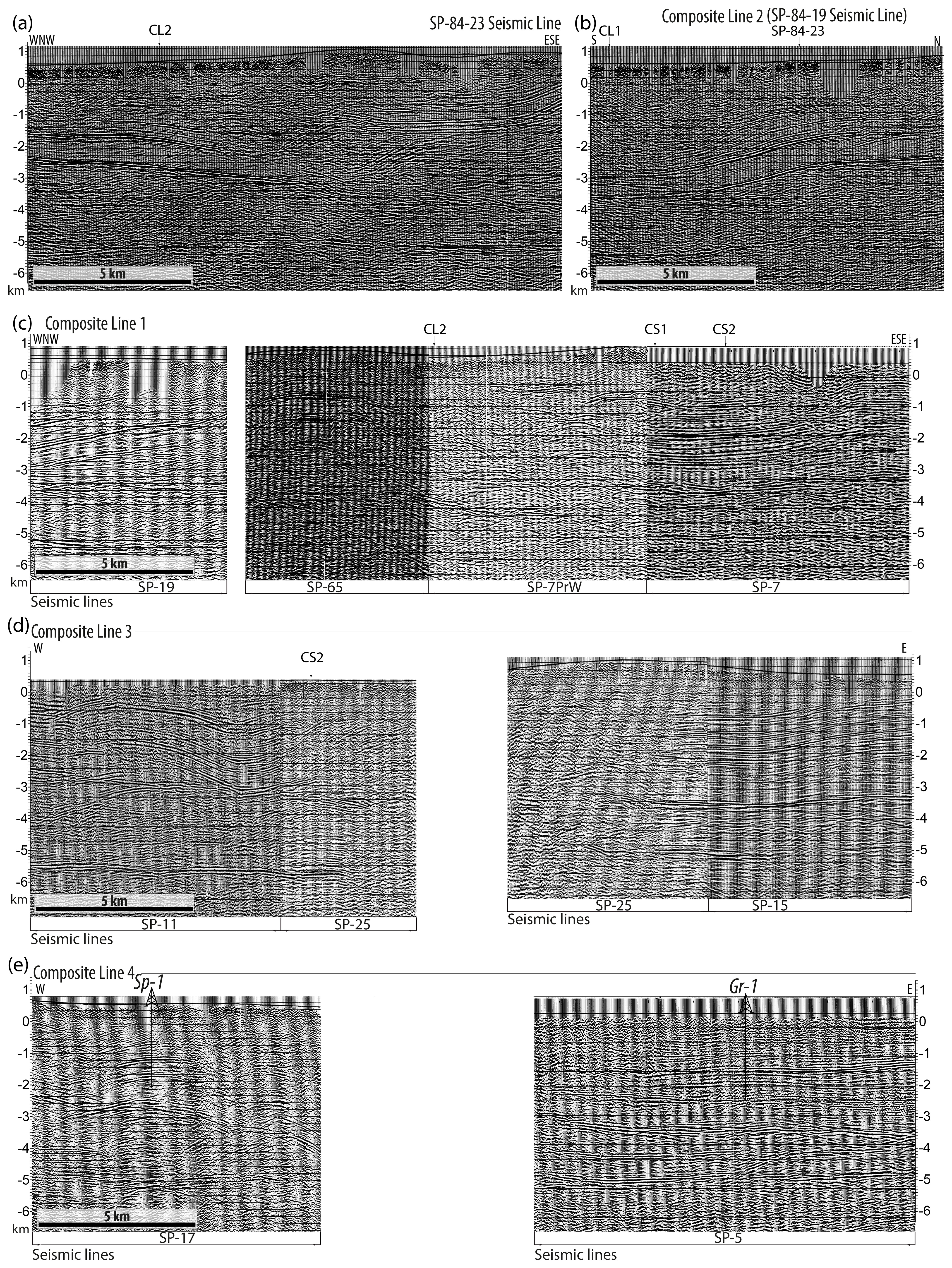

Figure B1 Uninterpreted version of (a) SP-84-23 seismic line, (b) SP-84-19 seismic line (part of the Composite Line 2, see Fig. 8 in the main text), (c) SP-19, SP-65, SP-7PrW and SP-7 seismic lines (Composite Line 1, see Fig. 7 in the main text), (d) SP-11, SP-25 and SP-15 (Composite Line 3, see Fig. 8 in the main text) and (e) SP-17 and SP-5 (Composite Line 4, see Fig. 8 in the main text). Surpireanica-1 and Graus-1 exploration wells are labelled as Sp-1 and Gr-1 respectively. Intersections between seismic lines or cross-sections are indicated with regular, capital characters on top of vertical arrows; labels CL-1, CL2, CL-3, CS-1 and CS-2 correspond to Composite Line 1, Composite Line 2, Composite Line 3, Cross Section 1 and Cross Section 2 respectively (as in the main text).
