Onshore and offshore seismotectonics of Iberia: an updated review

An analysis of 542 moment tensor focal mechanisms across the Iberian Peninsula was conducted to infer active tectonic deformation and stress regimes. This study employed a suite of complementary methodologies, including focal mechanism classification (FMC) of the rupture type, composed focal mechanisms based on the average seismic moment tensor, rotation angle between tensor estimates, right dihedra composed focal mechanisms, slip model analysis to determine the strain conditions, and classical stress inversion methodology. Based on the slip model results and considering the tectonic constraints of Cenozoic deformation in Iberia, the study region was subdivided into several tectonically coherent zones, where the different methods were applied independently to ensure robust regional interpretations. The results indicate that thrust faulting stress regimes are active in the Gorringe–Horseshoe (GH) area and the easternmost Tell Atlas. In the south, most of the zones are transpressive, as is the southwestern corner of Iberia, south of Lisbon. The exception is the Granada Basin (GB), which exhibits a nearly radial normal faulting stress regime. Normal faulting stresses are dominant in the Pyrenees and the Mediterranean rim, north of the Betic Mountains. In the central part of the Pyrenees, the maximum horizontal extension is oriented perpendicular to the mountain range, indicating that local stresses related to post-orogenic collapse or isostatic rebound dominate over regional ones. The maximum horizontal compression along the Eurasia–Africa plate limit is consistently oriented around N154° E, except in some parts of the Betics that are probably influenced by a remnant effect of the Alboran Slab. In the Central Ranges and offshore Atlantic, the maximum horizontal compression is slightly rotated anticlockwise to N140° E.

1 Introduction and objectives

The Iberian Peninsula (the former Iberian microplate) shows evidence of an intense and distributed Alpine deformation that occurred over geologic timescales (de Vicente and Vegas, 2009) (Fig. 1). After the Variscan orogeny and during the Mesozoic, numerous extensional structures developed in which thick sedimentary deposits accumulated, with one exception: on the Iberian Massif to the west. At the northern edge of the Iberian microplate, this extension even reached the stage of oceanic crust generation (Montadert et al., 1971; Nirrengarten et al., 2018; Sibuet et al., 2004), albeit during a very short time (Aptian–Albian) (Srivastava et al., 1990). Tectonic reconstructions indicate that the Iberian microplate moved independently relative to Africa and Eurasia until its collision with Eurasia to form the Cantabrian–Pyrenean orogen (Roca and Muñoz, 1996). A pronounced change in the tectonic framework has been suggested to have occurred around 84 Ma, when an incipient collision between the Iberian microplate and Africa may have begun (Reicherter and Pletsch, 2002). In any case, from the beginning of the Eocene, the Iberian microplate underwent compression, not only at its northern border, where an incipient subduction zone was located (Gallastegui and Pulgar, 2002; Fernández-Viejo et al., 2012), but also in its interior, as documented in the sedimentary infill of the Madrid and Duero basins (de Vicente et al., 2007).

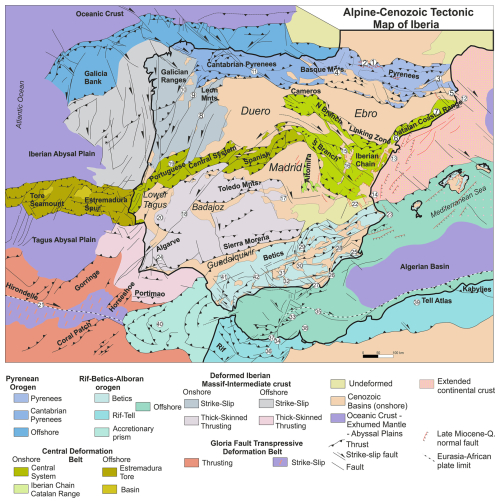

Figure 1 Cenozoic Alpine tectonic map of Iberia, including continental and offshore domains and showing areas that have experienced intense and distributed deformation. More recent normal faulting is shown by red lines. Q: Quaternary. Lourdes Fault (1); Bedous, Laruns, Pierrefitte, and Pic de Midi du Bigorre faults (2); Têt Fault (3); Pamplona Fault (4); Amer and Empordà faults (5); El Camp Fault (6); Montseny and Pla de Barcelona faults (7); Vilariça–Bragança fault system (8); Régua–Verín fault system (9); Monforte–Orense fault system (10); Ventaniella–Ubierna faults (11); Gulf of Rosas Fault (12); Amposta Basin Fault (13); Cape Cullera Fault (14); Jiloca Graben (15); Teruel Graben (16); Campos de Calatrava volcanism (17); Messejana–Plasencia Fault (18); Serra da Estrela Fault (19); Arraiolos and Évora seismic zones (20); Gloria Fault (21); Navarrés and Tous grabens (22); Cabo de la Nao Fault (23); São Marcos–Quarteira Fault (24); Mazarrón Fault (25); Palomares Fault (26); Serrata–Carboneras Fault (27); Alhama Fault (28); Tiscar and Guadiana Menor faults (29); Guadix Basin (30); Granada and Sierra Elvira-Dílar faults (31); Padul–Dúrcal Fault (32); Alborán Ridge (33); Idrissi Fault (34); Yusuf Fault (35); Nekor Fault (36); Al Hoceima area (37); Kert and Nador faults (38); Fault propagation associated to El Asnam earthquake (39); west-verging thrusts Gulf of Cádiz (40); NE–SW thrusts (41); Torcal Shear Zone (42).

Alpine compression in the interior of the Iberian microplate resulted in the inversion of the Mesozoic aulacogen of the Iberian Basin (Iberian Chain, IC) and the development of a series of ranges with crustal thickening along the Iberian microplate (i.e. the Spanish–Portuguese Central System, SPCS). This set of intraplate ranges can also be regarded as an incipient and aborted orogen (de Vicente et al., 2022b). It has also been suggested that the Iberian block accommodated shortening by forming lithospheric folds (Cloetingh et al., 2002). Accompanying these significant thrusts, major strike-slip fault deformation belts were activated at the crustal scale, such as the southern (“Castilian”) and northern (“Aragonese”) branches of the IC and the Messejana–Plasencia Fault (more than 500 km long), which nucleated on a Late Triassic basic dike related to the Central Atlantic Magmatic Province (Cebriá et al., 2003; Villamor, 2002; de Vicente et al., 2021). The age of the main deformation event for these fault systems is Oligocene–Early Miocene. However, in the westernmost sector, the SPCS and the left-lateral strike-slip faults of Règua and Vilariça display deformation during the Middle to Late Miocene. They are still considered active structures (Cabral, 2012).

Today, extensional structures dominate the easternmost part of the Iberian Peninsula (since the Late Miocene) due to back-arc extension related to a subduction zone below Corsica and Sardinia (e.g. Faccenna et al., 2002), initially a part of the Iberian microplate (van Hinsbergen et al., 2014). A normal faulting stress regime, unrelated to plate tectonics, also affects the Pyrenees, where a post-orogenic collapse process has been suggested (Asensio et al., 2012). The active plate boundary is considered to have progressively migrated southward from its initial position to the north, when Iberia acted as an independent, to its current configuration along the southern margin of the Iberian Peninsula (Terceira Ridge–Gloria Fault–Alboran Basin–Tell Atlas). This tectonic reorganisation coincided with the integration of Iberia into the Eurasian Plate. The resulting geodynamic setting is characterised by a diffuse plate boundary encompassing the Betic Cordillera, where coeval compressional and extensional tectonic regimes are accommodated. These processes are primarily governed by the westward migration and emplacement of the Alboran Domain and the ongoing subduction of the southern Iberian margin. In this complex Cenozoic and neotectonic deformation setting, it is unsurprising that the present tectonic stresses in Iberia exhibit significant variations in both the stress regime and the orientation of the principal stress axes (de Vicente et al., 2008) over relatively small areas.

Recent determinations of earthquake focal mechanisms by the Geophysical Institutes of Spain and Portugal have significantly expanded the regional seismicity catalogues maintained by Instituto Geográfico Nacional, Instituto Andaluz de Geofisica, and Instituto Português do Mar e da Atmosfera. These datasets, enriched by peer-reviewed publications stemming from major research initiatives such as TopoIberia (e.g. Martín et al., 2015; Matos et al., 2018) and from the analysis of notable seismic crises (e.g. Villaseñor et al., 2020; Cesca et al., 2021), provide a robust foundation for advancing our understanding of the seismotectonic framework of the region).

In this study, we exclusively utilise well-fitted moment tensor focal mechanisms to study the contemporary deformation pattern in the Iberian Peninsula. We analyse the rupture characteristics of focal mechanism populations for defined tectonic subareas by employing the slip model described by Reches (1983) and de Vicente (1988) to ascertain the rupture plane among the two nodal planes. This information, along with the focal mechanism populations, is then used to perform a stress inversion to determine the orientation of the maximum horizontal stress axis (S_Hmax) and the tectonic stress regime. Additionally, we derive the S_Hmax orientation from the individual focal mechanism and integrate these results with those from the stress inversion into a revised dataset for the World Stress Map project, based on borehole logs, overcoring measurements, and geological stress indicators.

2 Data from earthquake focal mechanism

In this study, we establish a new and comprehensive compilation of robust focal mechanism solutions of onshore and offshore Iberia, inferred from waveform moment tensor inversions, using the following catalogues:

• Global Centroid Moment Tensor (former Harvard Centroid Moment Tensor, 2025, https://www.globalcmt.org/; Dziewonski et al., 1981; Ekström et al., 2012)

• Instituto Geográfico Nacional de España (2025; https://www.ign.es/web/ign/portal/tensor-momento-sismico/-/tensor-momento-sismico/getExplotacion; Rueda and Mezcua, 2005)

• Instituto Andaluz de Geofísica (2025; https://iagpds.ugr.es/investigacion/informacion-general; Stich et al., 2003, 2006, 2010).

• Istituto Nazionale di Geofisica e Vulcanologia (https://doi.org/10.13127/TDMT; Scognamiglio et al., 2006; Pondrelli et al., 2002, 2004)

• Geofon (GFZ-Postdam, 2025; https://geofon.gfz-potsdam.de/old/eqinfo/list.php?mode=mt)

• ETH-Swiss Seismological Service (Braunmiller et al., 2002).

• IPMA Portuguese Institute for Sea and Atmosphere (2025; https://www.ipma.pt/en/geofisica/tensor).

This dataset was expanded through the integration of various regional studies (e.g. Carreño et al., 2008; Chevrot et al., 2011; Domingues et al., 2013; Custodio et al., 2016), datasets associated with projects such as TopoIberia (Martín et al., 2015), and datasets related to earthquake clusters (Morales et al., 2015; Matos et al., 2018). Additionally, it incorporates results from specific seismic crisis events, most likely associated to induced seismicity (e.g. Villaseñor et al., 2020; Cesca et al., 2021). To further enhance the dataset, nine previously unpublished moment tensor focal mechanisms were determined for events that occurred between 2003 and 2019 (Table 1), and focal mechanisms for two historical events were also included in our dataset (Stich et al., 2005). The events are located at depths shallower than the Moho proposed by Diaz et al. (2016), except for some events located in oceanic crust, where the proposed crustal thickness is estimated at approximately 18 km and hypocentral depths are less than 30 km, within a domain in which the rheology of the upper mantle might be assumed to be similar to the crust. In cases where multiple solutions existed for the same event across different catalogues and appearances, the double-couple percentage (%DC) was used as a selection criterion, and the solution with the highest %DC was retained.

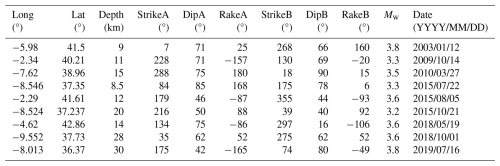

Table 1 Focal mechanisms calculated in this study

Thus, the final database consists of 542 events. In terms of temporal coverage, the first earthquake in our database is that of Benavente (Portugal) in 1909, and the most recent one occurred on 30 September 2023 (Fig. 2).

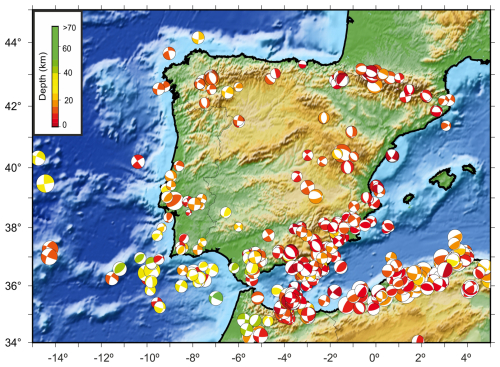

Figure 2 Distribution of the 542 focal mechanisms used in this study. The colour of each focal mechanism indicates hypocentral depth.

3 Methodology

To characterise the tensorial properties of seismicity, two complementary analytical frameworks can be employed: a stress-based approach and a deformation-based approach. In this study, both methodologies are applied to provide a comprehensive understanding of the seismotectonic regime. For the deformation-based analysis, we use two approaches. Firstly, a kinematic classification of rupture types is performed, including the derivation of a combined focal mechanism following the methodologies of Álvarez-Gómez (2019) and Kiratzi and Papazachos (1995). This is complemented by the application of the right dihedra method (Angelier and Mechler, 1977) and the slip model (Reches, 1983), which facilitate the identification of the most probable rupture plane to determine the stress tensor using classical inversion procedures. We also use the methodology proposed by Reches et al. (1992). This approach enables iterative testing of various friction coefficients, validated by angular criteria established by the slip misfit (SLIP) and the principal angles misfit (PAM), as detailed in this section. The methodology has been recently revised and implemented in MATLAB (Busetti et al., 2014; Wetzler et al., 2021).

Terminological precision is maintained throughout the analysis. For individual focal mechanisms, we differentiate between reverse, strike-slip, and normal earthquakes. When referring to deformation, we use the terms shortening, shear, and extension. Conversely, when discussing stresses, we use the thrusting stress regime, strike-slip stress regime, and normal faulting stress regime.

3.1 Kinematic analysis: composite focal mechanism

To gain insight into the kinematics related to the brittle behaviour of the lithosphere, we binned the focal mechanisms according to their rupture characteristics and stress–strain orientations in tectonic subareas. We refer to these from here onwards as tectonic zones. These zones were delimited considering the tectonic regimes, using a methodology explained in more detail in Sect. 4, which is a fundamental step in the stress inversion analysis.

For each tectonic zone, we classified the focal mechanisms by rupture type (reverse, strike-slip, normal) using the focal mechanism classification (FMC) diagram (Álvarez-Gómez, 2019). Then, for each rupture type population, we obtained a combined focal mechanism by averaging the moment tensor components following the approximation of Kiratzi and Papazachos (1995):

$$\begin{array}{}\text{(1)}& {\stackrel{\mathrm{‾}}{F}}_{ik}={\displaystyle \frac{{\sum }_{x=\mathrm{1}}^n{M}_o^x{F}_{ik}^x}{{\sum }_{x=\mathrm{1}}^n{M}_o^x}},\end{array}$$

where F_ik is the normalised moment tensor, M₀ is the seismic moment, and the sums are performed over the number of events in each rupture population. If most of the released seismic moment is controlled by one of the earthquakes, the composite focal mechanism is very close to that of the larger event (Kiratzi and Papazachos, 1995). To avoid this effect in areas with moderate seismicity, an adequate approximation is to use only the sum of the seismic moment tensor components, disregarding the respective seismic moments. In this case, all earthquakes will have the same weight in the sum.

$$\begin{array}{}\text{(2)}& {\stackrel{\mathrm{‾}}{F}}_{ik}^{\mathrm{RT}}={\sum }_{x=\mathrm{1}}^n{\stackrel{\mathrm{‾}}{F}}_{ik}^x,\end{array}$$

where RT is each of the rupture types, encompassing n events, and i and k are the indices of the moment tensor components.

As a result, we obtain a combined focal mechanism for each rupture type reflecting the geometry of the corresponding moment tensors and related deformation.

Following this reasoning, we can also obtain a composed focal mechanism considering all the events in a tectonic zone:

$$\begin{array}{}\text{(3)}& {\stackrel{\mathrm{‾}}{F}}_{ik}^{\mathrm{zone}}={\sum }_{y=\mathrm{1}}^n{\stackrel{\mathrm{‾}}{F}}_{ik}^{\left(y\right)}={\stackrel{\mathrm{‾}}{F}}_{ik}^{\mathrm{Reverse}}+{\stackrel{\mathrm{‾}}{F}}_{ik}^{\text{Strike-slip}}+{\stackrel{\mathrm{‾}}{F}}_{ik}^{\mathrm{Normal}}.\end{array}$$

As can be seen in Eq. (3), the summation of the combined rupture types is equivalent to the sum of all tensors. This enables quantification of strain partitioning through the computation of the minimum rotation angle between rupture types, following the method proposed by Kagan (1991).

A way to assess the character of a moment tensor is to use its compensated linear vector dipole (clvd) component, which quantifies the extent to which the deviatoric part of the seismic moment tensor differs from a pure double couple. We used the clvd ratio (fclvd) from Frohlich and Apperson (1992):

$$\begin{array}{}\text{(4)}& \mathrm{fclvd}={\displaystyle \frac{\left|m_B\right|}{max\left[\left|m_T\right|,\left|m_P\right|\right]}},\end{array}$$

where m_T, m_B, and m_P are the largest, intermediate, and smallest principal components of the summed moment tensor. When the double-couple component is dominant, the fclvd tends to be zero. Conversely, when the value approaches 0.5, the tensor is far from a double couple. The clvd proportion of the summed moment tensor can also be used to analyse the seismotectonics of a zone (e.g. Frohlich and Apperson, 1992; Jost et al., 1998; Buforn et al., 2004; Borges et al., 2007; Bailey et al., 2012).

Let us consider the composed moment tensor to be a representation of the seismic strain in a zone. We can use its orientation and characteristics to obtain insight into the deformation pattern of the studied tectonic zones. A first approximation is to consider the orientation of the principal strain axes. The T axis is equivalent to the extension axis, the P axis is comparable to the shortening axis, and the B axis is the intermediate axis, which can be neutral for a plane strain deformation (a pure double-couple moment tensor), or it can be an extension or a shortening axis depending on the tectonics of the zone.

It is of interest to quantify the amount of seismic deformation occurring in each zone using the various rupture types. These different rupture processes within a zone cannot be considered to reflect temporal changes in the regional deformation field, as the time interval of the catalogue is very short; instead, they are likely due to local strain axis permutations. To quantify these changes in the orientation of the axes between rupture types, we resort to the minimum rotation angle between tensors (or Kagan angle; Kagan, 1991). The angle for a pure axis permutation maintaining the orientation of all the axes would be 90°. In practice, if we consider the angle between the focal mechanisms of different types of rupture and given that they nucleate in faults with different orientations, this angle may depart slightly from 90°.

Finally, to analyse the shape of the seismic deformation tensor, we can adapt the Flinn diagram for 3D strain tensor shapes used in classic structural geology analysis. The Flinn diagram represents the relation between the principal strain axes, or principal extension (Flinn, 1958), where the abscissa is the relation ${\widehat{s}}_{\mathrm{2}}/{\widehat{s}}_{\mathrm{3}}$ and the ordinate is the relation ${\widehat{s}}_{\mathrm{1}}/{\widehat{s}}_{\mathrm{2}}$. An alternative to these values was proposed by Ramsay (1967), who suggested the use of the natural logarithm of these relations so that

$$\begin{array}{}\text{(5)}& {\displaystyle }\ln \left[{\widehat{s}}_{\mathrm{1}}/{\widehat{s}}_{\mathrm{2}}\right]={\mathit{\epsilon }}_{\mathrm{1}}-{\mathit{\epsilon }}_{\mathrm{2}},\text{(6)}& {\displaystyle }\ln \left[{\widehat{s}}_{\mathrm{2}}/{\widehat{s}}_{\mathrm{3}}\right]={\mathit{\epsilon }}_{\mathrm{2}}-{\mathit{\epsilon }}_{\mathrm{3}},\end{array}$$

where ε₁, ε₂, and ε₃ are the natural strains of the largest, intermediate, and smallest principal strain axes of the deformation ellipsoid, i.e. the magnitude of the changes in the length of the axes. Similarly, the principal strain axes of the combined seismic moment tensors can be considered the amount of seismic strain change induced by the earthquakes in a volume. Consequently, the logarithmic Flinn diagram can be adapted to this purpose. Additionally, the shape of the ellipsoid can also be defined by the k value, which is defined as

$$\begin{array}{}\text{(7)}& k={\displaystyle \frac{{\mathit{\epsilon }}_{\mathrm{1}}-{\mathit{\epsilon }}_{\mathrm{2}}}{{\mathit{\epsilon }}_{\mathrm{2}}-{\mathit{\epsilon }}_{\mathrm{3}}}}.\end{array}$$

This parameter has values of 0 for oblate strain shape, 1 for plane strain, and ∞ for prolate strain shapes. In the case of seismic moment tensors, a pure double couple has the form

$$\begin{array}{}\text{(8)}& \left[\begin{array}{ccc}{M}_{\mathrm{0}}& \mathrm{0}& \mathrm{0}\\ \mathrm{0}& \mathrm{0}& \mathrm{0}\\ \mathrm{0}& \mathrm{0}& -M_{\mathrm{0}}\end{array}\right],\end{array}$$

with values of the principal axes of the same magnitude although of opposite sign to conserve the volume. Strictly speaking, a double couple corresponds to a plane strain ellipsoid with no strain on the orthogonal plane to the maximum and minimum moment axes $m_T=-m_P$, m_B=0. If the intermediate moment axis is different from 0, then the compensated linear vector dipole component appears as shown in Eq. (3).

To represent the combined seismic moment tensors in the Flinn diagram, we defined the ordinate and abscissa as M₁-M₂ (or m_T-m_B) and M₂-M₃ (or m_B-m_P), respectively, where $M_{\mathrm{1}}\ge M_{\mathrm{2}}\ge M_{\mathrm{3}}$ (we used the logarithm of these values to improve the data presentation). The shape of the tensor can then be defined in an equivalent way to Eqs. (5) and (6):

$$\begin{array}{}\text{(9)}& k={\displaystyle \frac{M_{\mathrm{1}}-M_{\mathrm{2}}}{M_{\mathrm{2}}-M_{\mathrm{3}}}}.\end{array}$$

3.2 Kinematic analysis: slip model

Focal mechanisms provide valuable insights into earthquake rupture kinematics, including the strike, dip, and rake of the two nodal planes. However, most of the time, the selection of the true fault plane among the two possible ones is not straightforward. The strain orientation derived from thrust or normal faulting focal mechanisms may remain the same irrespective of the true fault plane, but the dip direction of the fault would not be constrained. On the other hand, for strike-slip faulting focal mechanisms, the strike of the fault plane is crucial to define the strain field properly.

The slip model (Reches, 1983; de Vicente, 1988) identifies which of the nodal planes is more prone to slip from a mechanical point of view, as it requires less energy to mobilise (the neo-formed plane, not a reactivated one). The slip model proposed by Capote et al. (1991), based on de Vicente (1988) and Reches (1983), defines the maximum shortening trend (Dey, E_Hmax) and the shape factor (k^′) of the deformation ellipsoid for each focal mechanism. Thus, areas under similar strain conditions can be readily defined, improving the results of stress inversion, based on plane populations. In this study, we apply the workflow suggested by de Vicente et al. (2008), Olaiz et al. (2009), and Arcila and Muñoz-Martín (2020). This method, based on the Navier–Coulomb fracture criterion, assumes that the brittle strain and stress axes are parallel and that one of the axes is close to vertical. According to the slip model, under the triaxial strain conditions of brittle strain, fractures are arranged in orthorhombic symmetry concerning the fundamental axes of the strain ellipsoid.

$$\begin{array}{}\text{(10)}& k^{\prime }=e_y/e_z,\end{array}$$

where e_z is the axis of the vertical strain and e_y is the axis of the maximum horizontal shortening.

Accordingly, we replace e_y and e_z in Eq. (10):

$$\begin{array}{}\text{(11)}& {\displaystyle }{k}^{\prime }=\left({\sin }^{\mathrm{2}}D{\cos }^{\mathrm{2}}B\right)/\left(\mathrm{1}-{\sin }^{\mathrm{2}}D{\cos }^{\mathrm{2}}B\right),\text{(12)}& {\displaystyle }B={\sin }^{\mathrm{2}}D{\cos }^{\mathrm{2}}P,\end{array}$$

where D is the dip and P is the pitch of the slip vector on the fault plane.

Two sequences of strain are established as a function of k^′, from reverse to normal through strike-slip faulting, and k^′ is rescaled to plot values continuously (Table 2).

Table 2 k^′ values obtained from the slip model.

Additionally, based on the relationship between D and P proposed by de Vicente (1988), when the nodal plane coincides with the character of the focal mechanism, frictional energy is dissipated more efficiently. Therefore, the selected plane can be effectively utilised in stress inversion methods that rely on fault plane orientations and their associated slip directions (Angelier and Mechler, 1977). Hence, the quality of the stress inversion results is improved compared to those obtained using both planes (neo-formed and reactivated) (Michael, 1987; de Vicente, 1988; Giner-Robles et al., 2006).

3.3 Dynamic analysis: stress inversion

For the stress inversion, we apply the method proposed by Reches et al. (1992). The process incorporates two constraints: firstly, the stresses in the slip direction satisfy the Coulomb yield criterion; secondly, the slip occurs in the direction of maximum shear stress along the fault. The computations yield the complete stress tensor, normalised by the vertical stress, and evaluate the mean coefficient of friction (μ) and the mean cohesion (C) of the faults during the time of faulting (Reches, 1987). Thus, for every selected population, two angular quality criteria are obtained: the slip misfit (SLIP), which is the mean angle between the observed and calculated slip axes of all faults in the cluster, and the principal angles misfit (PAM), which is the angle between the ideal stress axes of each nodal plane and the general stress axes of the entire group according to the optimal mechanical condition for faulting (Reches, et al., 1992). In addition, the stress ratio (R) is established as proposed by McKenzie (1969), Etchecopar et al. (1981), Gephart and Forsyth (1984), and Delvaux et al. (1997), among others (Eq. 13, Table 3).

$$\begin{array}{}\text{(13)}& R=\left({\mathit{\sigma }}_{\mathrm{2}}-{\mathit{\sigma }}_{\mathrm{3}}\right)/\left({\mathit{\sigma }}_{\mathrm{1}}-{\mathit{\sigma }}_{\mathrm{3}}\right)\end{array}$$

Here σ₁, σ₂ and σ₃ are the largest, intermediate and smallest principal stress axes of the stress tensor. To assess the statistical representativeness of the population of focal mechanisms within each tectonic zone, a Monte Carlo bootstrapping approach was employed to determine the value of the friction coefficient with the fewest errors. This technique enables us to determine the potential variability in the principal stress axes, particularly the possible permutations between two principal stress axes when they have similar magnitudes.

Table 3 Relation between stress tensor (R shape factor ratio) and the stress regime.

4 Tectonic zonation for stress–strain analysis

To define the tectonic zones required for stress inversion and strain analysis, we utilise the slip model (De Vicente, 1988). This model provides unique values of the shape factor (k^′) and the orientation of the shortening (or minimum extension) axis (Dey) for each focal mechanism. Interpolation of these values enables the generation of continuous maps that show the variation of both parameters (e.g. de Vicente et al., 2008; Olaiz et al., 2009; Arcila and Muñoz-Martín, 2020). In this study, we built interpolated maps of the shape factor (k^′) and the value for Dey using the blockmean module of the Generic Mapping Tools (Wessel and Smith, 1995; Wessel et al., 2013). The shape factor (k^′) is a scalar that varies between 0 and 300. Therefore, the values are normalised to the average for each node and subsequently interpolated onto a continuous surface. These maps are a powerful tool for better defining different strain regions based on homogeneous shape factor values and similar Dey trends. Thus, the grouping of the focal mechanisms is straightforward, allowing the optimisation of results for techniques designed for populations.

The three fundamental pieces of information that we considered for the delineation of the tectonic zones in the Iberian Peninsula are (a) the available information on the neotectonic (in this case, Alpine) structural deformational style (Fig. 1), (b) the density of the available data (Fig. 2), and (c) the dominant type of focal mechanism. The global and interpolated analysis of the data using the slip model allows us to consider these parameters simultaneously (Figs. 3 and 4). Different search radii have been tested to balance highly populated areas and those containing isolated information while maximising the overall data representation.

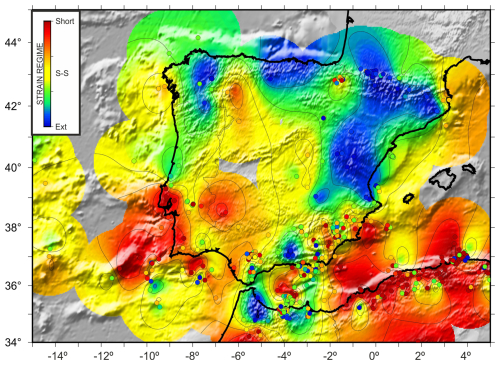

Figure 3 Style of active deformation (strain regime) for Iberia determined from focal mechanisms. The map shows the shape factor (k^′) determined using the slip model (Reches, 1983; de Vicente, 1988). Each dot represents a focal mechanism. Search radius of 150 km. Short: shortening. S-S: shear strain. Ext: extension.

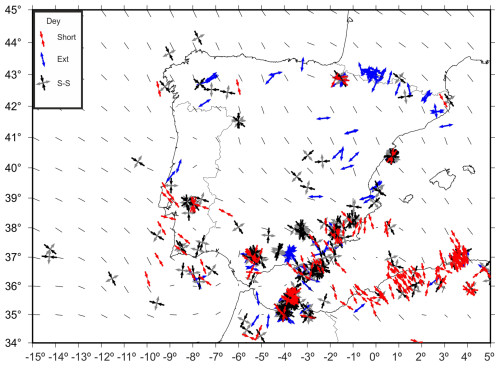

Figure 4 Solutions of the slip model (by assuming that one principal strain axis is vertical) for all analysed focal mechanisms. Short and Ext denote the principal horizontal shortening and extension axes, respectively, and S-S denotes the shear strains. Black bars are Dey (E_Hmax) trend interpolations.

Considering these criteria, we subdivided Iberia into several zones (Fig. 5). In the Pyrenees, we identified three zones: the Central Pyrenees (CP), characterised by mostly normal faulting focal mechanisms, and two additional zones at the eastern and western ends, where there are more focal mechanisms, the Western Pyrenees (WP) and the Eastern Pyrenees–Northern Catalan Coastal Range (EPCE). Further west, on the northern edge, we grouped the earthquakes in Northwestern Galicia (NWG), with numerous focal mechanisms in the central area and offshore. In the east of the peninsula, offshore near the coast, we differentiated two tectonic zones: the Western Valencia Trough (WVT) and the Southern Valencia Trough (SVT). Onshore, we separated the focal mechanisms in the Iberian Chain (IC) and south of the eastern SPCS (Central Basins, CB), along with those in the tectonic zone near Lisbon, which we refer to as the Western Central System (WCS). Further south but not yet at the active plate boundary, we defined the Algarve (AL) as a tectonic zone. In the offshore Atlantic to the west, although the data are very scattered, the focal mechanisms are similar, and several correspond to earthquakes that occurred at mantle depths but are not well constrained. Therefore, we grouped them in the tectonic zone Offshore Atlantic (OA). Further south, primarily offshore and along the plate boundary, we examined the Gorringe–Horseshoe (GH) and Gulf of Cádiz (GC) tectonic zones. The large number and variability of focal mechanisms in the Betics require smaller tectonic zones. Thus, considering the predominance of normal faulting in the Granada Basin (GB), we differentiated the Western Betics (WB) to its west, the Betics Antequera (BA) to its north, and the Western Alcaraz Arch (WAA) and the Eastern Betics (EB) to its east. In the Alboran Sea, we considered the North Alboran (NA), which also has onshore focal mechanisms, and the Alboran Ridge (AR), located at the probable plate boundary. Further south, on the African Plate, in the Rif, we considered the tectonic zones of Al Hoceima (ALH) and Rif (RF). Finally, in the Algerian Atlas, we analysed two populations: one located further east, the Eastern Tell Atlas (ETA), and the other located further west, the Western Tell Atlas (WTA). Figure 5 shows the focal mechanisms in different colours for each area. We utilised the Rif (RF) focal mechanisms in the slip model analysis (Figs. 3 and 4). However, any stress inversion yielded a high-quality solution; therefore, we will not comment on RF active tectonics (Fig. 5).

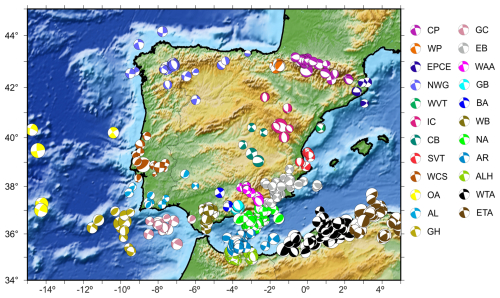

Figure 5 Colour-coded focal mechanisms for every considered tectonic zone: Central Pyrenees (CP); Western Pyrenees (WP); Eastern Pyrenees–Northern Catalan Coastal Range (EPCE); Northwestern Galicia (NWG); Western Valencia Trough (WVT); Iberian Chain (IC); Central Basins (CB); Western Spanish–Portuguese Central System (WCS); Offshore Atlantic (OA); Gorringe–Horseshoe (GH); Southern Valencia Trough (SVT); Algarve (AL); Eastern Betics (EB); Western Alcaraz Arch (WAA); Granada Basin (GB); Northern Alboran (NA); Alboran Ridge (AR); Al Hoceima (ALH); Western Tell Atlas (WTA); Eastern Tell Atlas (ETA); Gulf of Cádiz (GC); Western Betics (WB); Betics Antequera (BA).

5 Results

The results obtained following the methodologies described above are summarised in Tables 4 and 5 for all considered tectonic zones. For additional information, see Appendices A and B.

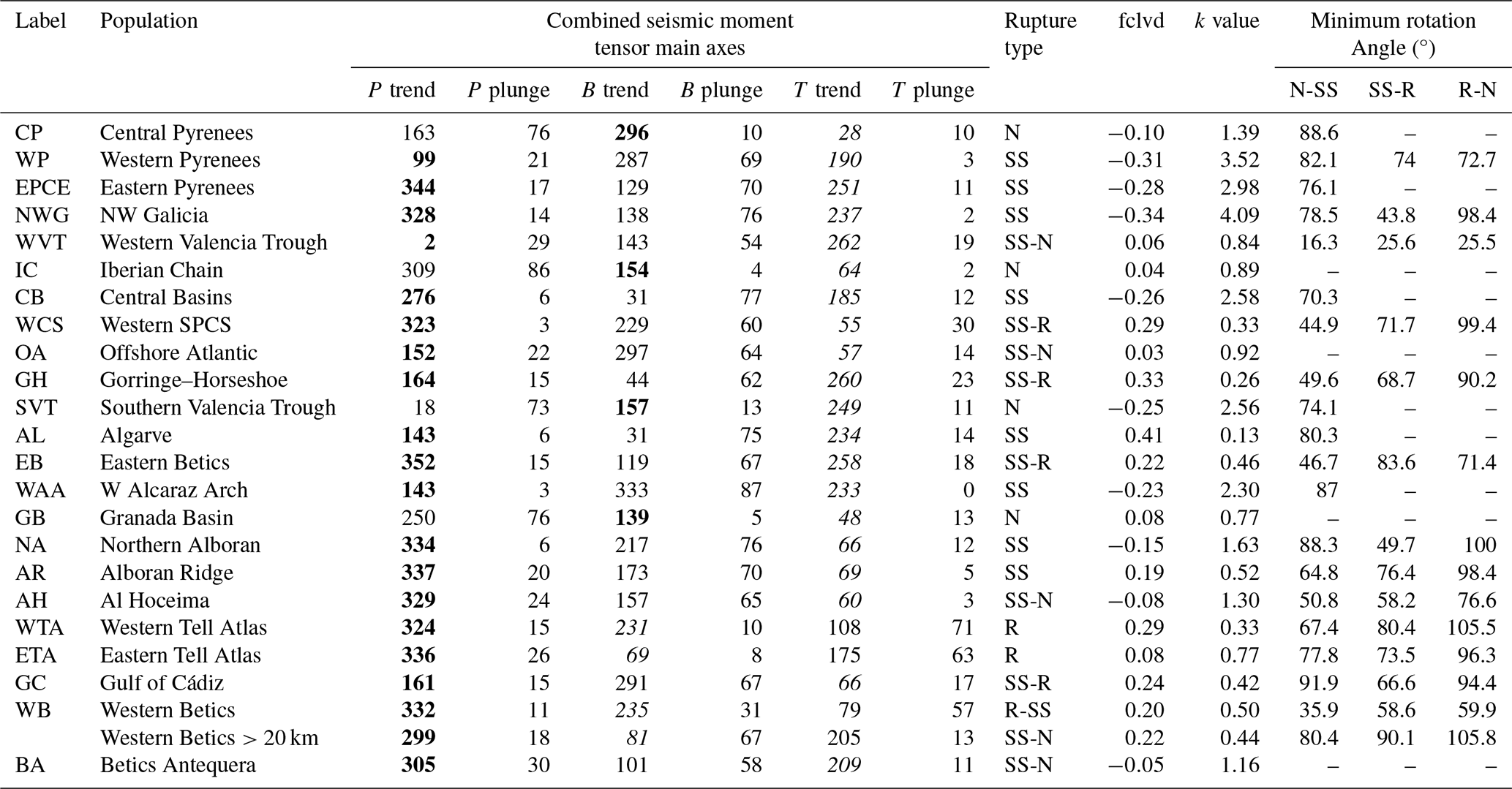

Table 4 Summary of the combined seismic moment tensor results for all considered zones. Bold numbers represent the trend in the greatest horizontal shortening axis (E_Hmax), and italic numbers represent the trend in the greatest horizontal extensional axis.

Table 5 Summary of the stress inversion results for all considered zones. Dey defines the maximum shortening trend from the slip model. S_Hmax is the maximum horizontal stress (σ₁ or σ₂ with radial normal faulting stress regime). R represents the stress ratio. Tr is the trend of the axis, and pl is the plunge of the axis. N denotes the number of events, and Nad is the number of events for the given solution (adjusted). PAM is the principal angles misfit, and SLIP is the slip misfit.

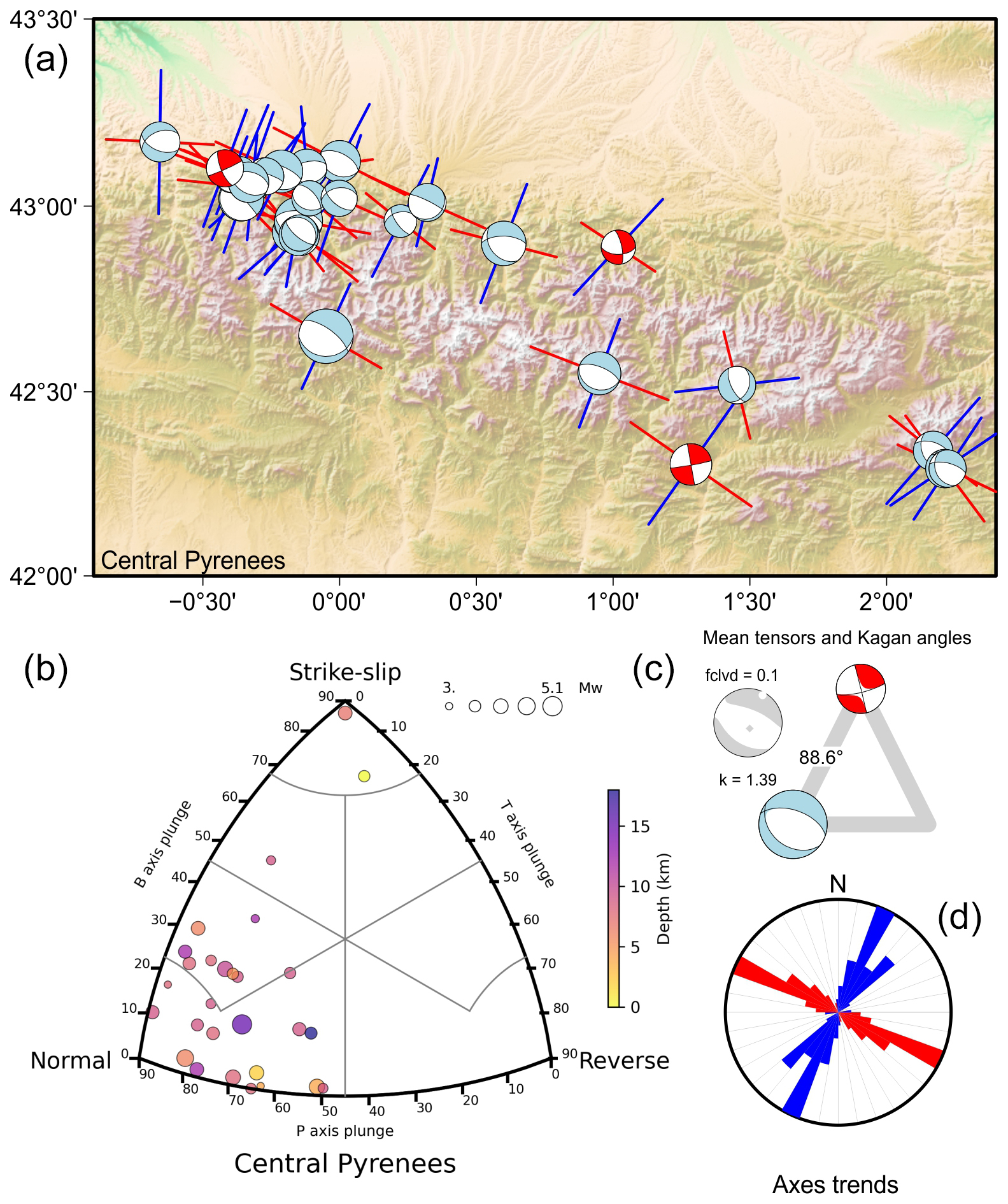

5.1 Central Pyrenees (CP)

The majority of the focal mechanisms in this area are predominantly normal, although some strike-slip faults are also observed. The seismic moment release is controlled by the normal fault events giving rise to a combined moment tensor close to a double couple, with a k value of 1.39 and an fclvd of 0.1. The Kagan angle between the combined moment tensors of normal and strike-slip earthquakes has a value close to 90°, indicating an almost pure permutation between the B and P axes. The orientations of the principal strain axes (T and B) are consistent with each other and orthogonal to the strike of the mountain range. However, these axes show some variability with two predominant families, one N020-030° E and the other N040-050° E, which could indicate the activation of normal fault families with slightly different orientations (see Appendix A).

The 28 focal mechanisms located in the central part of the Pyrenees provide a very consistent stress inversion solution (Fig. 7 CP) that indicates a nearly uniaxial normal faulting stress regime, with a σ₃ direction of N005-030° E, sub-perpendicular to the topographic axis of the range. The solution agrees with that obtained by de Vicente et al. (2008) and Asensio et al. (2012). The latter authors also analysed GPS data with similar results (extension perpendicular to the range of 2.5 ± 0.5 nanostrain yr⁻¹), which they attributed to post-orogenic collapse. This normal faulting stress regime would account for the seismic activity of the main active normal faults present in the area, such as the Lourdes Fault (1, Fig. 1), which has a 50 km trace and a 50 m high fault scarp (Alasset and Meghraoui, 2005; Lacan and Ortuño, 2012), and the Bedous, Laruns, Pierrefitte, and Pic de Midi du Bigorre faults (Lacan, 2008) (2, Fig. 1). The latter author attributes the seismicity in this part of the Pyrenees to a process of isostatic adjustment. In this area, we also include the focal mechanisms in the easternmost part of the area, obtained close to the Têt Fault (3, Fig. 1), which is 120 km long and accommodated right-lateral movement from the Miocene to the Upper Pliocene (Cabrera et al., 1988) and which seems to have had mainly extensional movement during the Pliocene–Quaternary (Briais et al., 1990). In any case, the three nearby focal mechanisms show normal faulting, consistent with the other mechanisms used for the inversion. Recent studies, calculated with polarities and temporary seismic networks, provide very similar focal mechanisms (Ruiz et al., 2023).

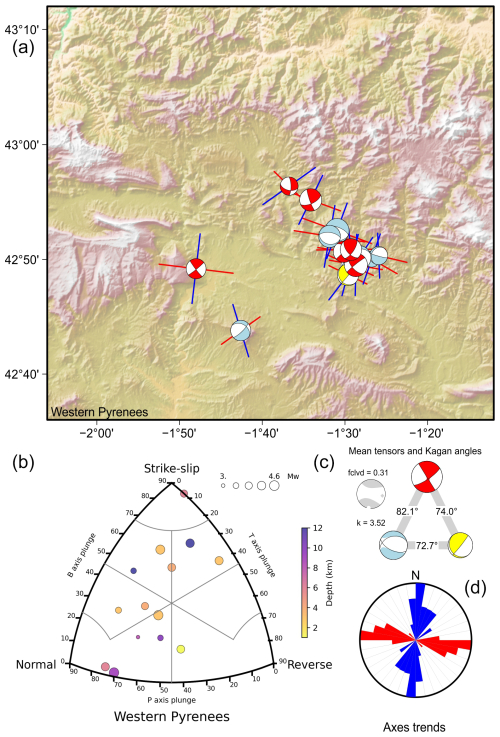

5.2 Western Pyrenees (WP)

Seismicity in the Western Pyrenees is clustered in the south of the mountain range, in the vicinity of the city of Pamplona. This seismic activity is characterised on the one hand by normal faulting, with a strike-slip component, and on the other by a series of oblique events with a significant strike-slip displacement. This component is essential in the area, with the combined moment tensor having mainly shearing characteristics, although with fclvd values of 0.31 and a k of 3.52, which indicates a prolate-type seismic deformation tensor shape. The strain extensional axis of the combined mechanism is N011° E, and that of maximum horizontal shortening (B- and P-permuting) is between N090° E–N110° E.

The stress inversion (Fig. 7 WP) also results in a normal faulting stress regime, as in CP (N098° E). However, the stress tensor shows characteristics closer to strike-slip, with σ₂ at N103° E, which allows the activation of WNW–ESE to E–W normal faults, such as those of Leiza, Aralar, and Roncesvalles (Lacan and Ortuño, 2012), but also NE–SW strike-slip faults, such as the Pamplona Fault (4, Fig. 1), which is 125 km long (Ruiz et al., 2006). This is a vertical fault, inherited from the Late Variscan period, which also controlled Mesozoic and Tertiary sedimentation (Ruiz et al., 2006) and was reactivated as an oblique ramp during the Pyrenean shortening (Vergés, 2003).

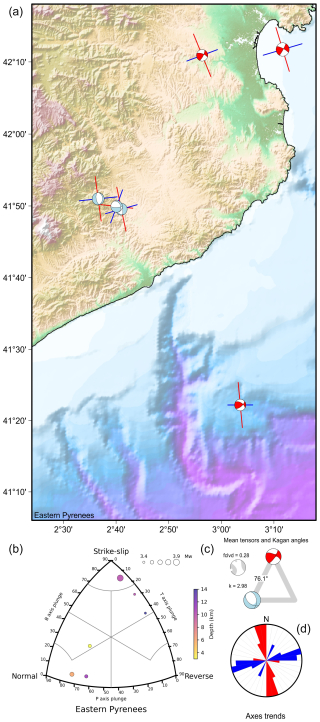

5.3 Eastern Pyrenees–Northern Catalan Coastal Range (EPCE)

This tectonic zone, which contains only six focal mechanisms, was differentiated from the Central Pyrenees population because, here, as in the westernmost part, there seem to be more strike-slip faulting mechanisms (as opposed to the easternmost ones). Half of the population, with epicentres close to the axis of the mountain range, present pure normal faulting mechanisms, while the other half has a thrust faulting component. The Kagan angle between the combined normal and strike-slip faulting mechanisms is close to 80°, suggesting a permutation between the P and B axes. The combined moment tensor departs from a pure double couple, with an fclvd of 0.28 and a k value of 2.98. The shape of the ellipsoid is therefore of prolate type, with the extensional strain axis oriented at N72° E and the maximum shortening almost horizontal at N163° E.

The stress inversion (Fig. 6 EPCE) indicates a more normal faulting stress regime (σ₂ at N165° E) concerning CP, similar to that obtained by Goula et al. (1999) with normal strike-slip stresses, which differs from the one provided by these authors, which was more thrusting. The onshore focal mechanisms would indicate that the structures associated with the recent NW–SE Olot volcanism, the Amer and Empordà faults (5, Fig. 1) (Souriau and Pauchet, 1998; Lacan and Ortuño, 2012), present normal-type movements, which would have been responsible for the seismic crisis between 1427 and 1428 that caused considerable damage (Olivera et al., 2006). Active faults further south, in the Catalan Coastal Range, such as El Camp (6, Fig. 1) (Masana, 1996), Montseny, and Pla de Barcelona (7, Fig. 1) (Perea et al., 2020), seem to be more closely related to the opening of the Valencia Trough than to the Pyrenees. The El Camp Fault can be regarded as part of the NVT. In any case, the stress solution is very similar to those found to the south in IC, WVT, and SVT, so it seems to be less related to the local processes affecting the Pyrenees.

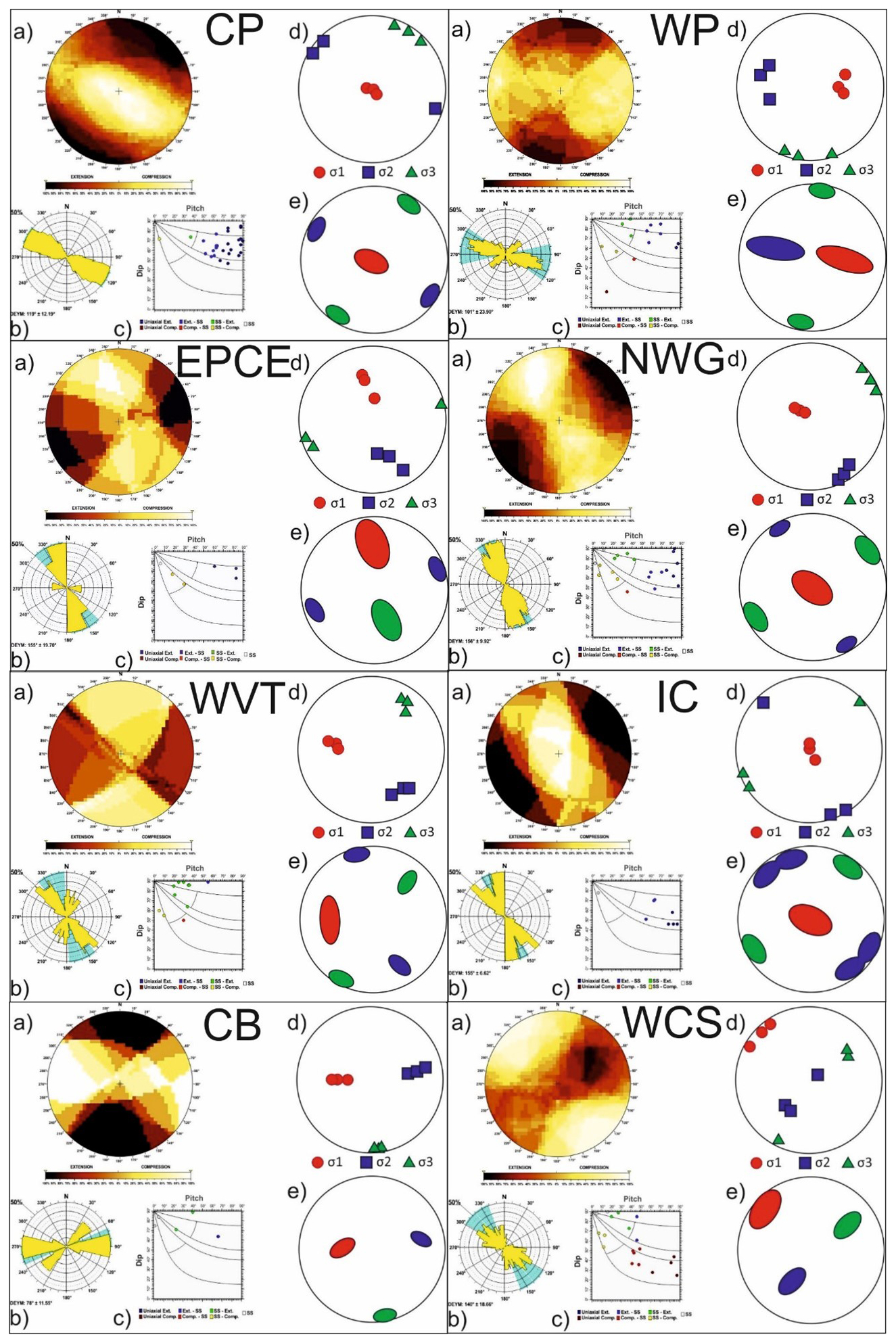

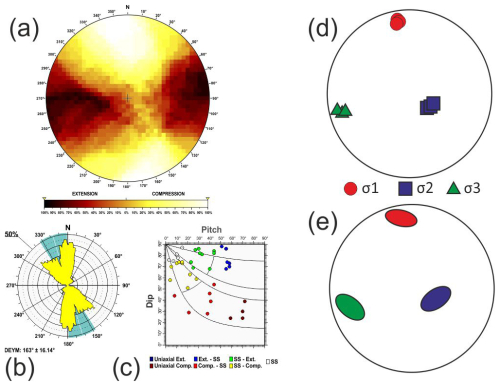

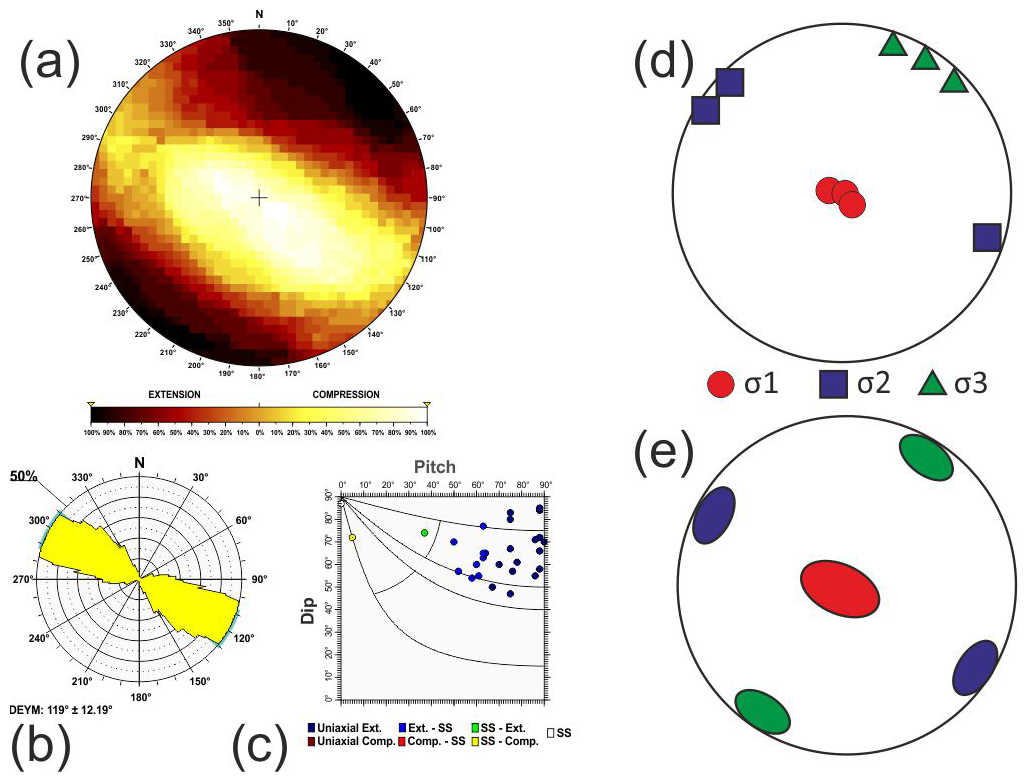

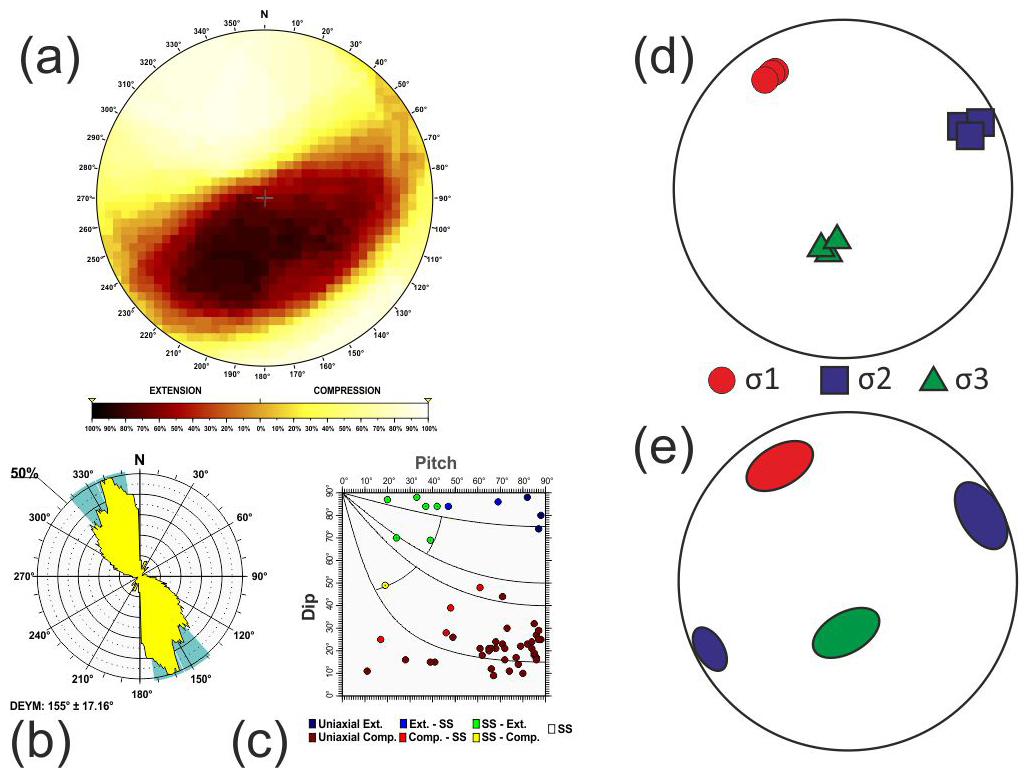

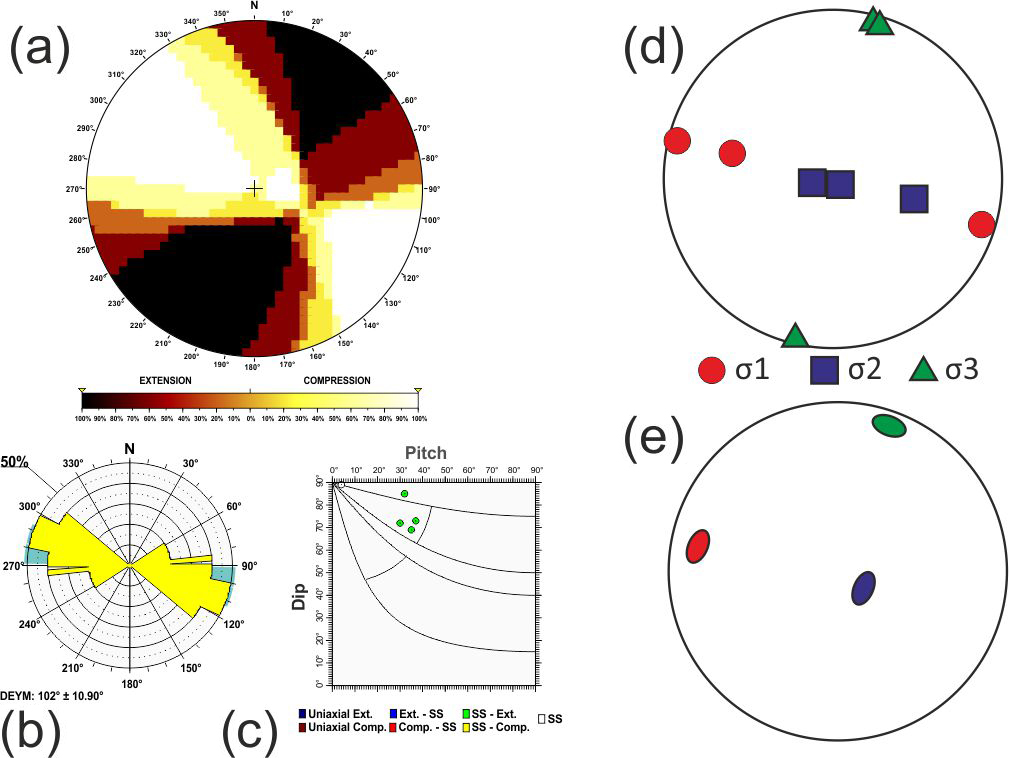

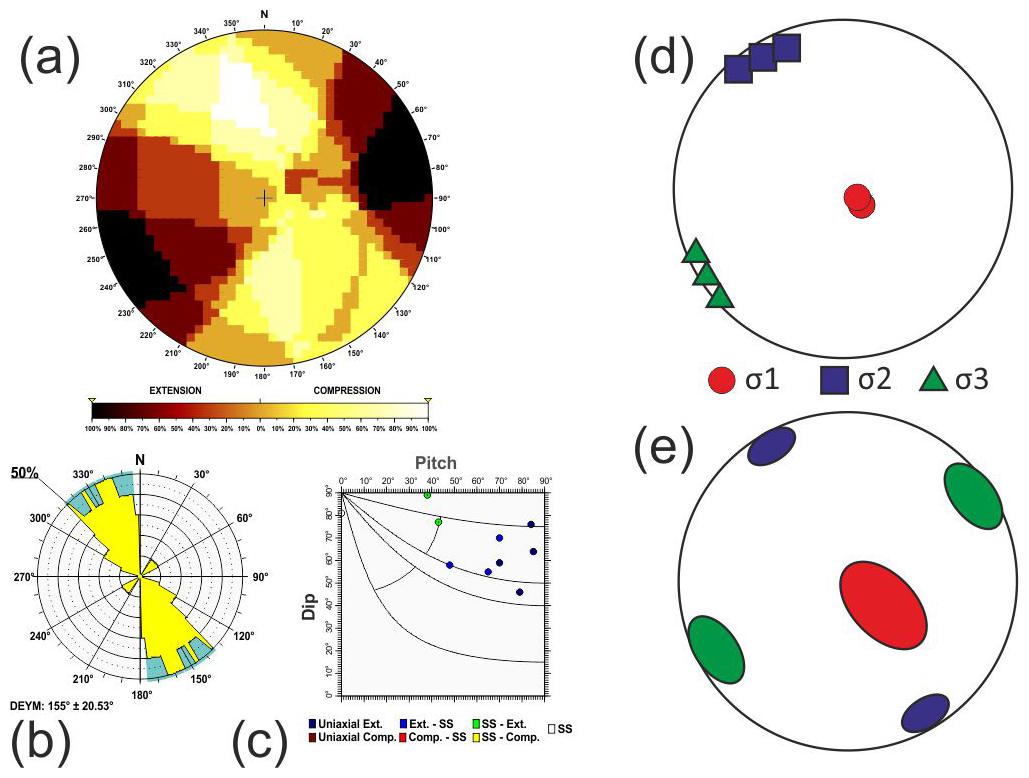

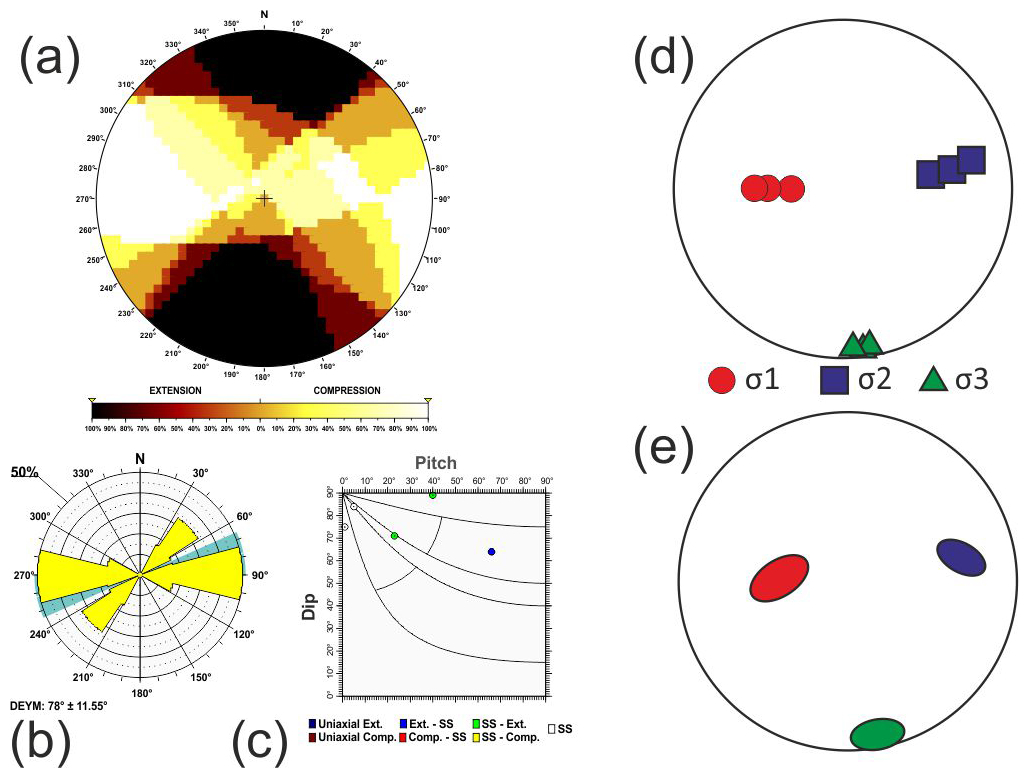

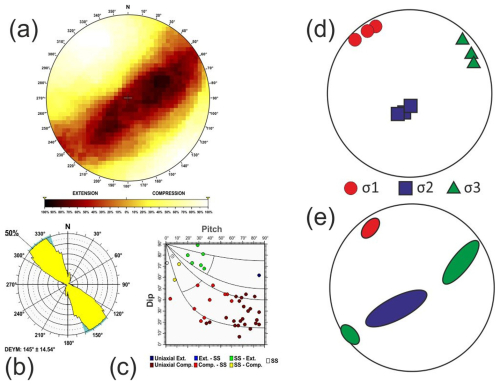

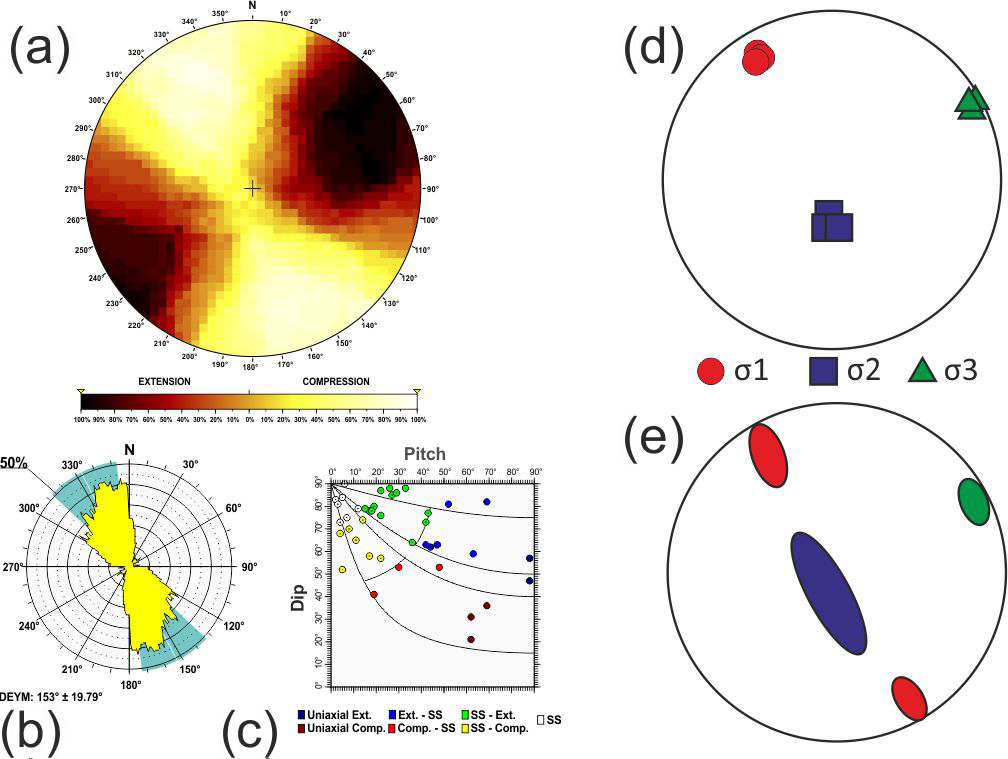

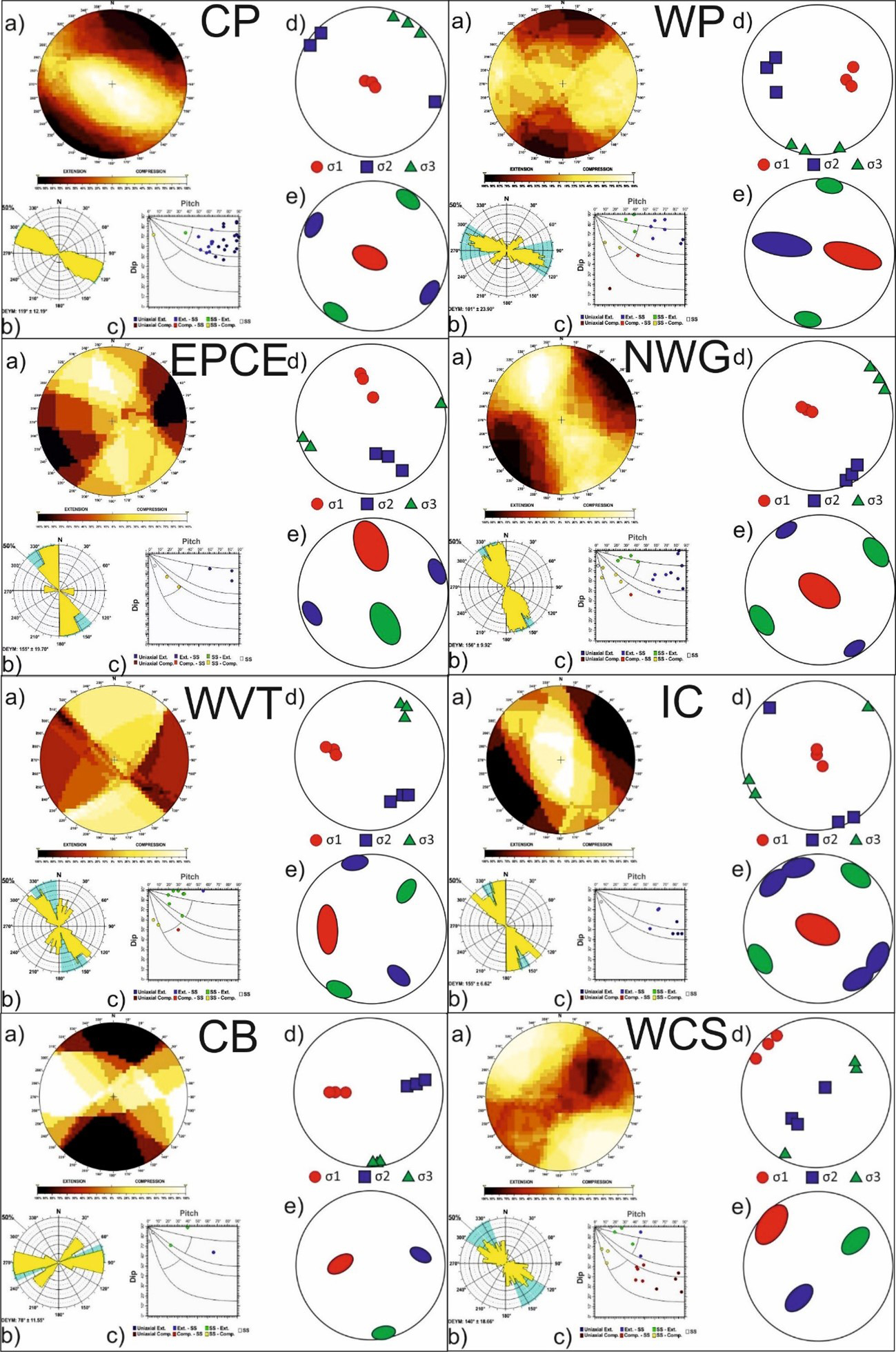

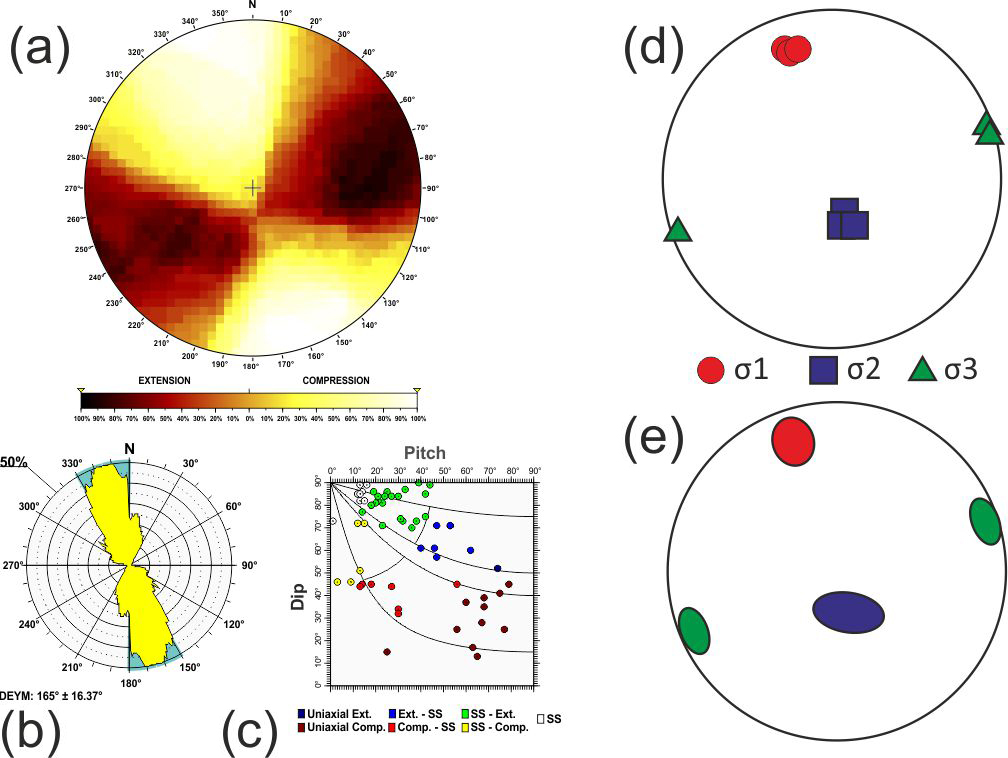

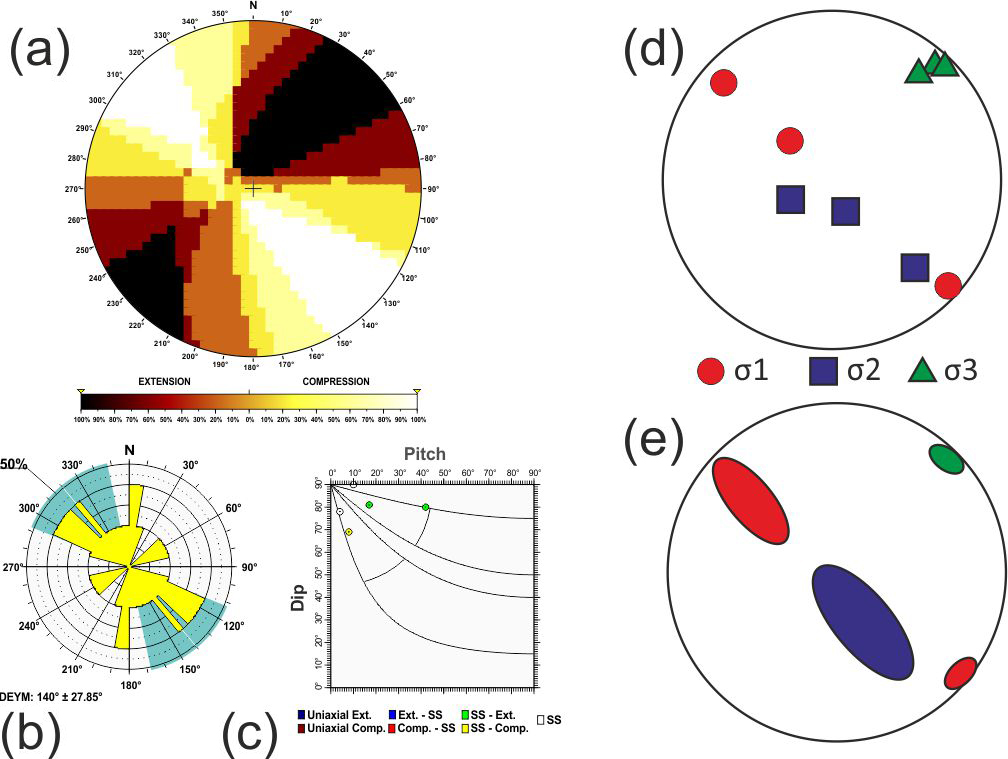

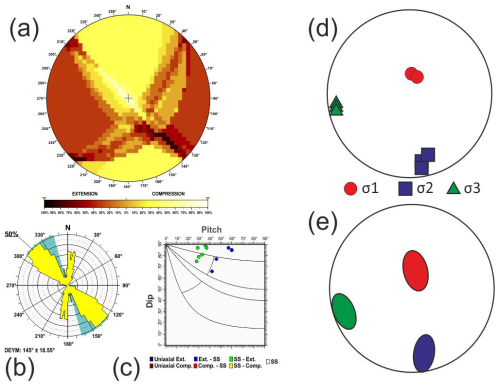

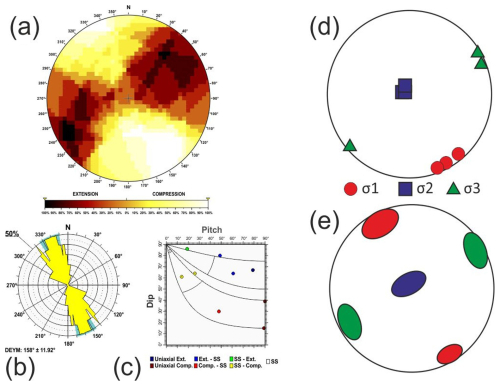

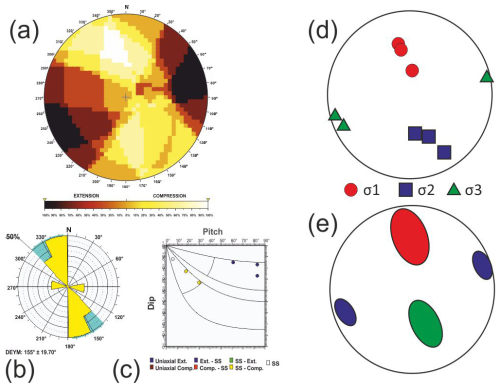

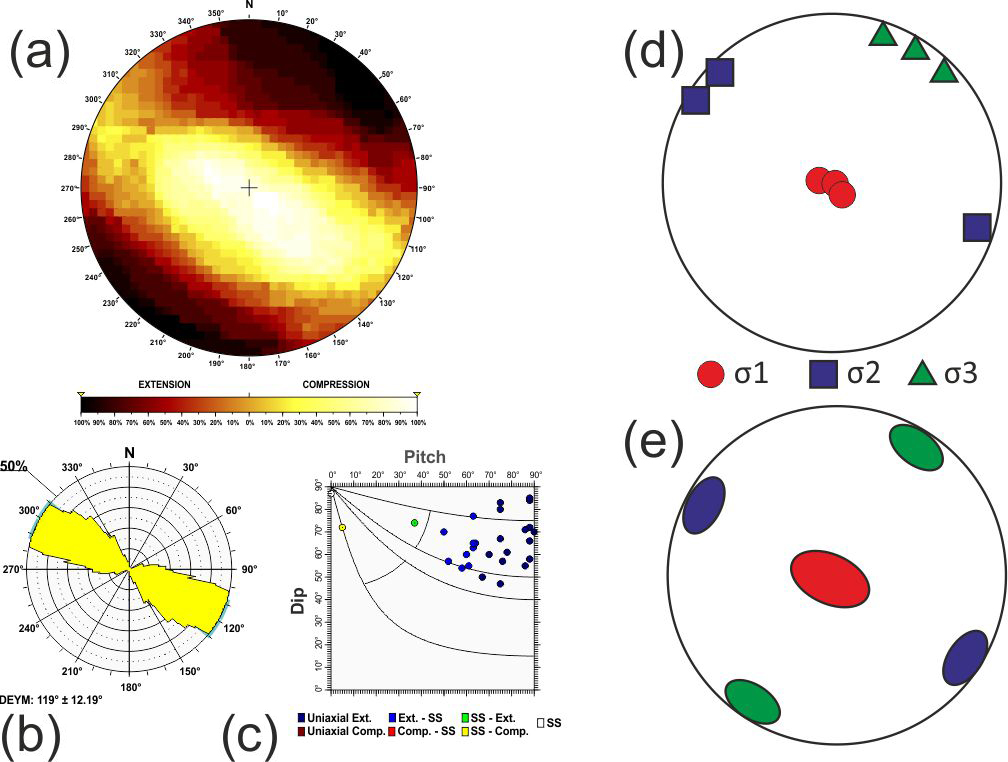

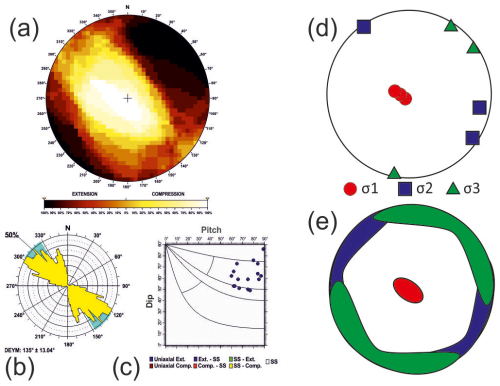

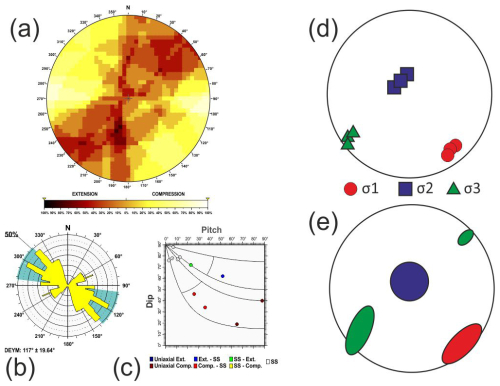

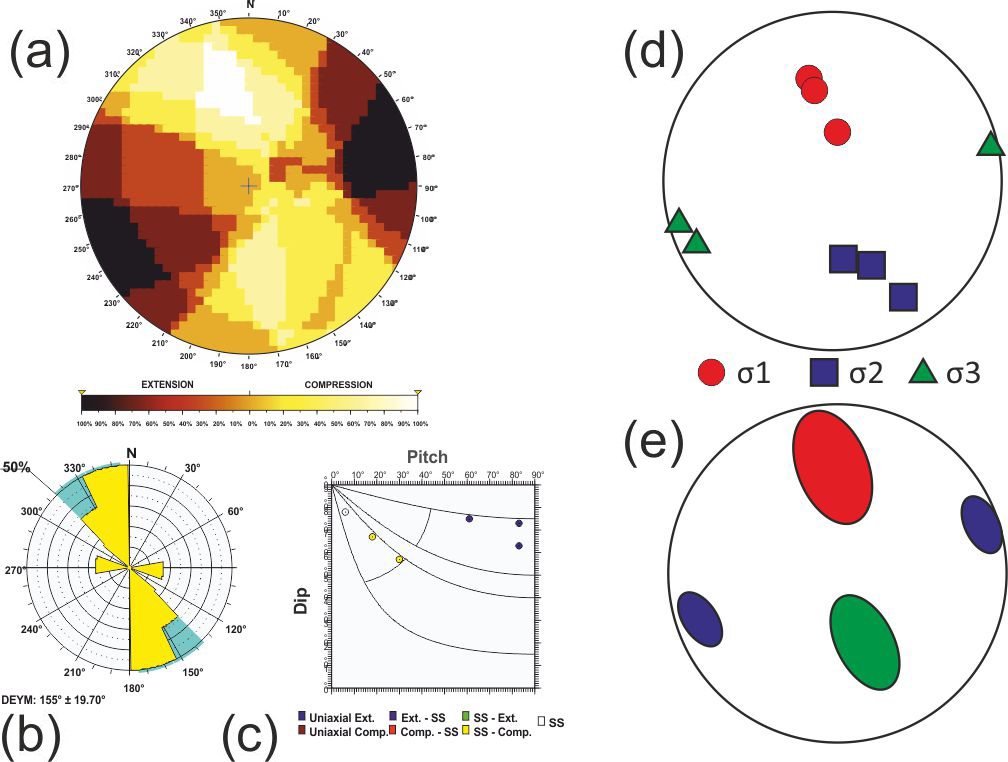

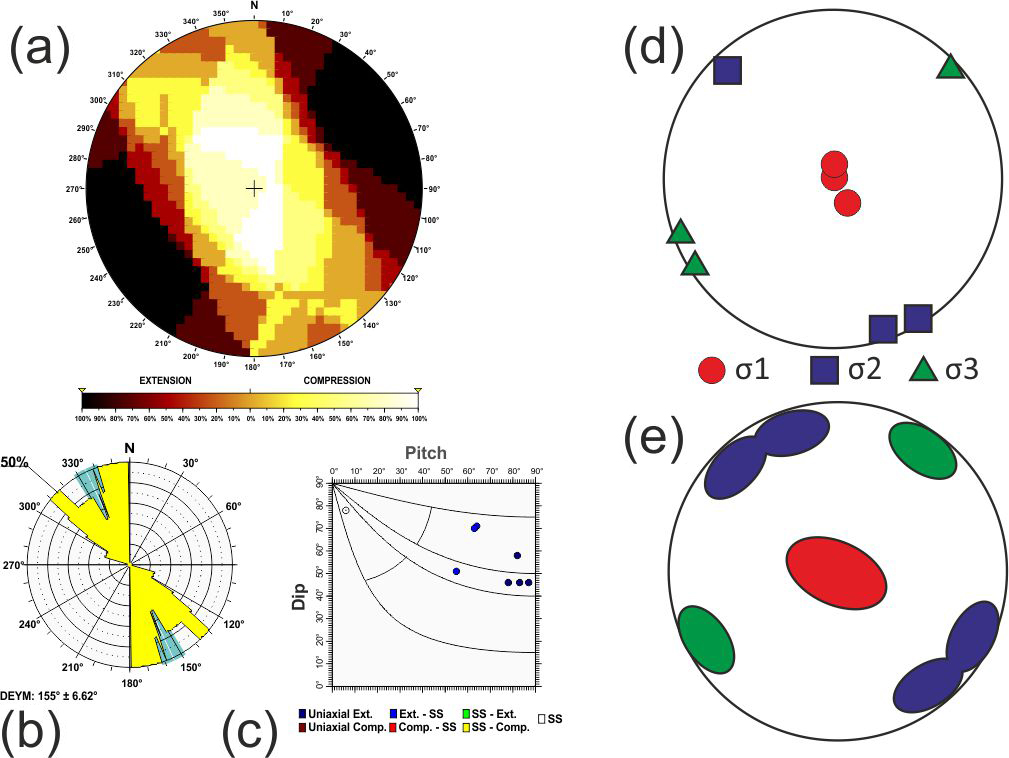

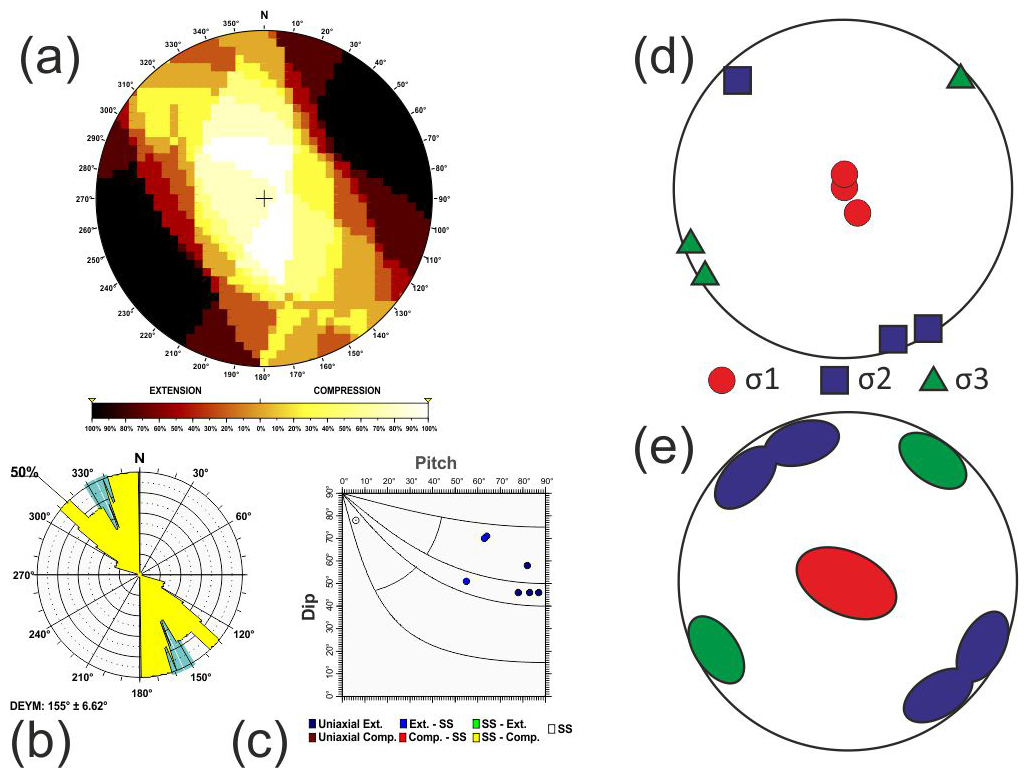

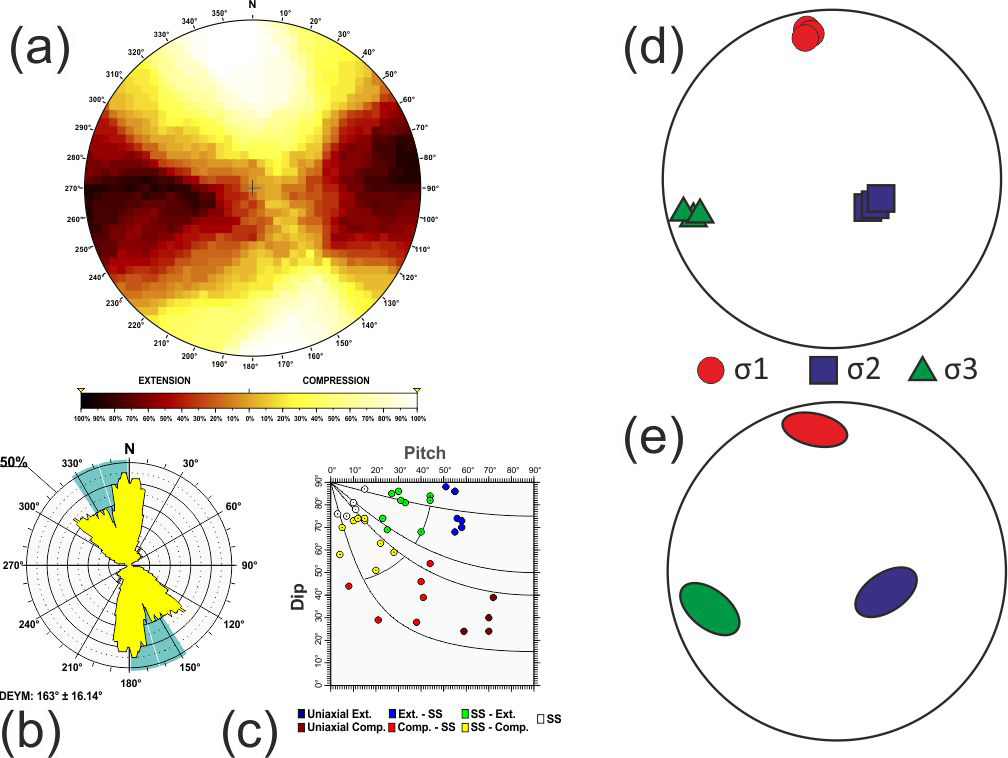

Figure 6 Results of the stress–strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Deys obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion. CP Central Pyrenees; WP Western Pyrenees; EPCE Eastern Pyrenees–Northern Catalan Coastal Range; NWG Northwestern Galicia; WVT Western Valencia Trough; IC Iberian Chain; CB Central Basins; WCS Western Spanish–Portuguese Central System.

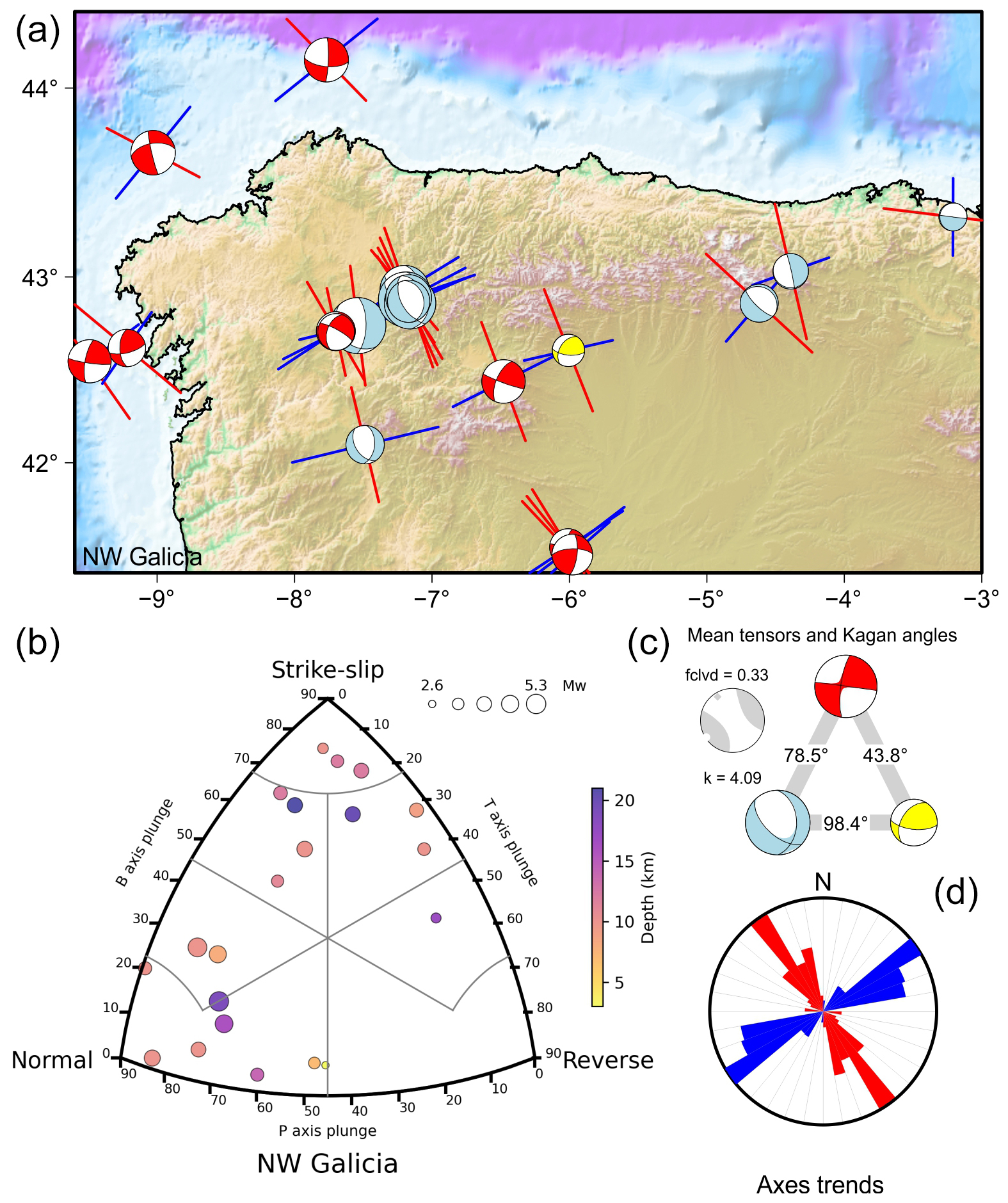

5.4 Northwestern Galicia (NWG)

The Pyrenean orogen spans across northern Iberia to the Cantabrian Mountains (Cantabrian Pyrenees), Galicia, and offshore, as far as the Galicia Bank (Fig. 1). The southern part of the Bay of Biscay, the closest to Iberia, also appears to be affected by the deformation of the Pyrenees (e.g. Boillot and Malod, 1988) where the shortening took place from the Upper Eocene to the Middle Miocene (Gallastegui and Pulgar, 2002). After the Middle Miocene, much of the neotectonic activity in Galicia and northern Portugal was concentrated in the left-lateral strike-slip NNE–SSW fault system of Vilariça–Bragança (8, Fig. 1), Règua–Verín (9, Fig. 1), and Monforte–Orense (10, Fig. 1) (Cabral, 1989; de Vicente and Vegas, 2009; Martín-González and Heredia, 2011), which, although not strictly part of the Pyrenees, is closely related to its evolution and to that of the SPCS.

The focal mechanisms in this zone can be grouped into two families: one of normal faulting type, releasing most of the seismic moment, and the other of oblique strike-slip faults, some with normal components and others with reverse faulting components (see Appendices A and B). By using the Kiratzi and Papazachos (1995) approximation, which gives equal weight to all combined events in the tensor, we avoid the dominance of events with a much higher energy release than the others. The resulting combined moment tensor shows a prolate form, with k values close to 7 and an fclvd of 0.39, dominated by ENE–WSE extension. The extensional strain axes are very coherent in all focal mechanisms, with the combined one having an orientation of N057° E. In the horizontal shortening axes (P- and B-permuting with a rotation angle of 84°), there is more variability, with the P axis showing an orientation of N147° E.

The 18 focal mechanisms included in the stress inversion (Fig. 6 NWG) are of strike-slip and normal-directional types, resulting in a normal faulting stress regime, with a σ₂ strike between N147° E and N150° E. It should be noted that the most normal faulting mechanisms are concentrated in the area where small sedimentary basins developed during the Miocene, specifically in the interior of Galicia (de Vicente et al., 2011). In contrast, the offshore region is dominated by strike-slip faulting.

We were only able to obtain one focal mechanism in the Cantabrian Mountains (Cantabrian Pyrenees), which shows NW–SE normal faulting. This focal mechanism could indicate that critical faults in that orientation, such as the Ventaniella–Ubierna faults (11, Fig. 1), accommodate normal faulting deformation today. A study using a local seismic network (10 stations) on the Ventaniella Fault determined focal mechanisms for earthquakes with M_w<2 but without obtaining a consistent pattern (López-Fernández et al., 2018); therefore, the results in this area are not conclusive. The two focal mechanisms with the highest double-couple component (above 80 %) calculated by del Pie Perales (2016) are normal faulting solutions, and the focal nodal planes are compatible with the strike-slip fault system. Recently, on 30 September 2023, a M_w=3.6 thrusting focal mechanism was reported by the IGN in Villamejil (León).

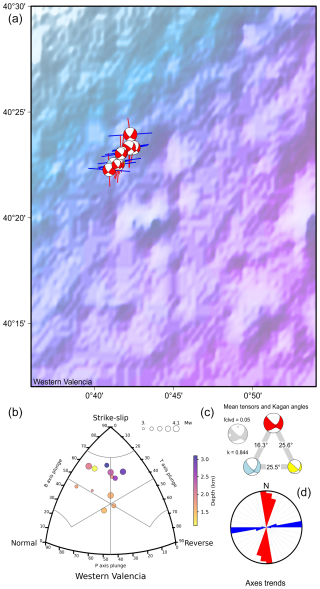

5.5 Western Valencia Trough (WVT)

The Valencia Trough, between the Mediterranean margin of Iberia and the Balearic Islands, shows a complex succession of partially inverted Mesozoic rifting events during the Cenozoic (Etheve et al., 2018). During the last 30 Myr, the emplacement of the Calabrian–Tyrrhenian subduction zone with trench retraction and back-arc extension produced intense extension in the Levantine sector of Iberia (Faccenna et al., 2004) during the Neogene (Roca and Guimerà, 1992), forming a broad rifting zone with the development of many horsts and grabens. This extension is moderately active today (Perea et al., 2020).

The Castor CO₂ storage project generated a sequence of apparently triggered seismicity. In addition to the moment tensors calculated by the IGN, several groups published focal mechanisms (Cesca et al., 2021; Villaseñor et al., 2020). The moment tensors present mainly similar solutions in both studies, in terms of plane orientations, although the depth and epicentral location vary significantly. Due to the better epicentral relationship with the previously identified NE–SW-striking faults, the results used here were those by Villaseñor et al. (2020). These mechanisms exhibit strike-slip fault displacements with a substantial normal component, very similar to those obtained by Goula et al. (1999) for the 1991 and 1995 events, based on P-wave polarities. The combined moment tensor shows an N082° E-trending T axis and an immersion of 19°. The P axes show somewhat more scatter; still, the P axis of the combined moment tensor is oriented N002° E, with an immersion of 28°. The value of k obtained is 0.8, which indicates an oblate-type tensor shape, with N–S shortening and E–W extension.

The stress inversion of the 12 focal mechanisms (Fig. 6 WVT) yields a very consistent solution, indicating a normal faulting stress regime compatible with strike-slip and σ₂-oriented N170° E. This stress regime activates moderately dipping NE–SW and NW–SE faults, such as those of the Gulf of Rosas (12, Fig. 1), the Amposta Basin (13, Fig. 1), Cape Cullera (14, Fig. 1), and the Columbretes Basin (Perea et al., 2020), which affect Pliocene–Quaternary sedimentary units (Perea et al., 2012). Onshore, the El Camp Fault (6, Fig. 1) (Masana, 1996) can also be activated by this type of stress. The stress solution for this zone is very similar to that of the SVT.

5.6 Iberian Chain (IC)

The IC is part of the Iberian intraplate orogen, characterised by a main Oligocene–Early Miocene age of deformation, which involved the inversion of Permian–Mesozoic rifts (Álvaro et al., 1979). From the Late Miocene onwards, its activity is linked to the opening of the Valencia Trough (Roca and Guimerà, 1992) and therefore shows a similar evolution to the WVT. To the west, the extension deactivated the thrusts that uplifted the SPCS north of Madrid. The recent extensional process formed Neogene–Quaternary basins associated with N–S to NW–SSE normal fault activity (Simón, 1989). The related stress field, based on recent fault data, indicates triaxial normal faulting, with σ₃ oriented ENE–WSW (Arlegui et al., 2005). The most important active faults are those bounding the Jiloca graben (15, Fig. 1) (Sierra Palomera, Calamocha, Daroca, Munébrega faults) and the Teruel graben (16, Fig. 1) (Sierra del Pobo, Valdecebro, and Concud) (Simón, 2020).

The eight focal mechanisms in this tectonic zone are normal faulting events, with a few showing a strike-slip component, which combined give rise to a pure double-couple tensor with a horizontal T axis oriented N064° E and a B axis oriented N154° E. The individual moment tensors are divided into two distinct families (see Appendices A and B), with T- and B-axis rotations of about 30°, probably due to the activation of complementary normal fault families.

The focal mechanisms used for the stress inversion, located in the north and centre of the IC, yield a triaxial normal faulting stress regime solution (Fig. 6 IC), with σ₃ oriented N058° E, similar to that of the WVT and compatible with the results obtained from recent fault analyses (Arlegui et al., 2005). Thus, the active stress field can activate the aforementioned normal faults (Simón, 2020).

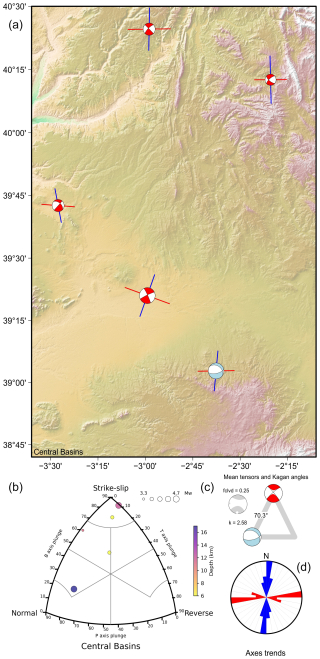

5.7 Central Basins (CB)

In central Iberia, south of the SPCS and west of the IC, in the Cenozoic basins of Madrid and La Mancha (CB), we find six focal mechanisms, mainly showing strike-slip and normal faulting. Most of the strike-slip solutions correspond to minor seismic moment releases. The combined moment tensor shows an fclvd of 0.25 and a value of k of 2.58, corresponding to a prolate-type tensor shape dominated by an extensional strain axis oriented N005° E and an axis of maximum shortening nearly E–W-oriented.

The stress inversion of the focal mechanisms (Fig. 6 CB) indicates a normal faulting stress regime solution with a small strike-slip component, with σ₃ almost perpendicular to that obtained for the CI, at N173° E, which also differs from most of the considered areas. However, geodetic velocities derived from GPS data in this region indicate a clear westward displacement – assuming a fixed Eurasian reference frame – at rates of 2 to 3 mm yr⁻¹ (Cannavò and Palano, 2016; Neres et al., 2018a). This motion contrasts with the NW–SE trend observed farther south. The results published by Khazaradze et al. (2019) further support a dominant strike-slip faulting regime. On the other hand, and as a differential element, the area is characterised by volcanism (Campos de Calatrava volcanism), mainly sodic alkaline and ultra-alkaline rocks, with radiometric ages between 4 Ma and less than 0.7 Ma (Ancochea and Huertas, 2021) (17, Fig. 1), which has been related to a gentle folding of the Iberian lithosphere and the presence of an anomalous low-density sub-crustal block below the volcanic zone (Granja Bruña et al., 2015). It is therefore possible that this recent volcanic activity somehow influences the calculated stress tensor. An edge effect related to large-radius extension and uplift in the CI cannot be ruled out (Casas-Sáinz and de Vicente, 2009), even if it is an indentation effect about the Betics (Vegas and Rincón-Calero, 1996).

5.8 Western Spanish–Portuguese Central System (WCS)

As mentioned before, the central orogenic belt extends to the west, reaching as far as Lisbon and offshore into the Estremadura Spur. In its Portuguese stretch, the SPCS is an active mountain range (Cabral, 2012). Documented structural damage from seismic events and digitalised seismograms have been used to convert observed effects into intensity estimates and moment magnitude calculations, as in the case of the 1909 Benavente earthquake, which reached M_w=6.0 and exhibited a significant thrust faulting component. (Stich et al., 2005; Fonseca and Vilanova, 2010). The thrust faults have predominantly NE–SW strikes with associated NW–SE shortening (de Vicente et al., 2018). East of Portugal, in the westernmost Spanish sector and along the NE part of the Messejana–Plasencia Fault (18, Fig. 1), instrumental seismicity is scarce. However, there is evidence of end-Cenozoic and Quaternary deformation (de Vicente et al., 2022a).

The focal mechanisms in this tectonic zone are predominantly reverse or strike-slip faulting events, the former showing a higher release of seismic energy. There are some normal faulting events whose T and B axes are kinematically compatible with each other. Considering the combined mechanisms of strike-slip and reverse faulting, we calculated the value of the minimum rotation angle close to 70°, thus constituting a T and B permutation. The orientation of the axis of maximum shortening of the combined moment tensor is N146° E, and the axis of maximum extension is oriented N056° E. The overall combined moment tensor, considering all earthquakes in this zone, is of oblate type, with a low k value of 0.325 and an fclvd of 0.29; thus, it is dominated by NW–SE shortening.

The stress inversion for this tectonic zone (Fig. 6 WCS) was computed using 20 focal mechanisms. It resulted in a clear thrust faulting stress regime solution with a small strike-slip component, with σ₁ oriented N134° E. This stress regime activates NE–SW-striking thrust faults and left-lateral NNE-striking and right-lateral ESE-striking strike-slip faults. Examples include the Vilariça–Bragança (8, Fig. 1) and Régua–Verín (9, Fig. 1) faults, which exhibit left-lateral movement. Additionally, there are faults from S Galicia (NWG, with σ₂ at N150° E) to the Serra da Estrela (19, Fig. 1) with a thick-skinned tectonic style without tectonic inversion and the SPCS (Cabral, 2012) with σ₁ at N134° E. The thrusts bordering the Lusitanian Basin to the south and the Cenozoic Lower Tagus Basin to the north are also active with kinematics that are directly related to the inferred stress tensor. Focal mechanisms to the east show mainly strike-slip faulting in the Arraiolos and Évora seismic zones (20, Fig. 1) within the Ossa–Morena zone of the Variscan basement, consistent with right-lateral motion on N065° E faults (Matos et al., 2018).

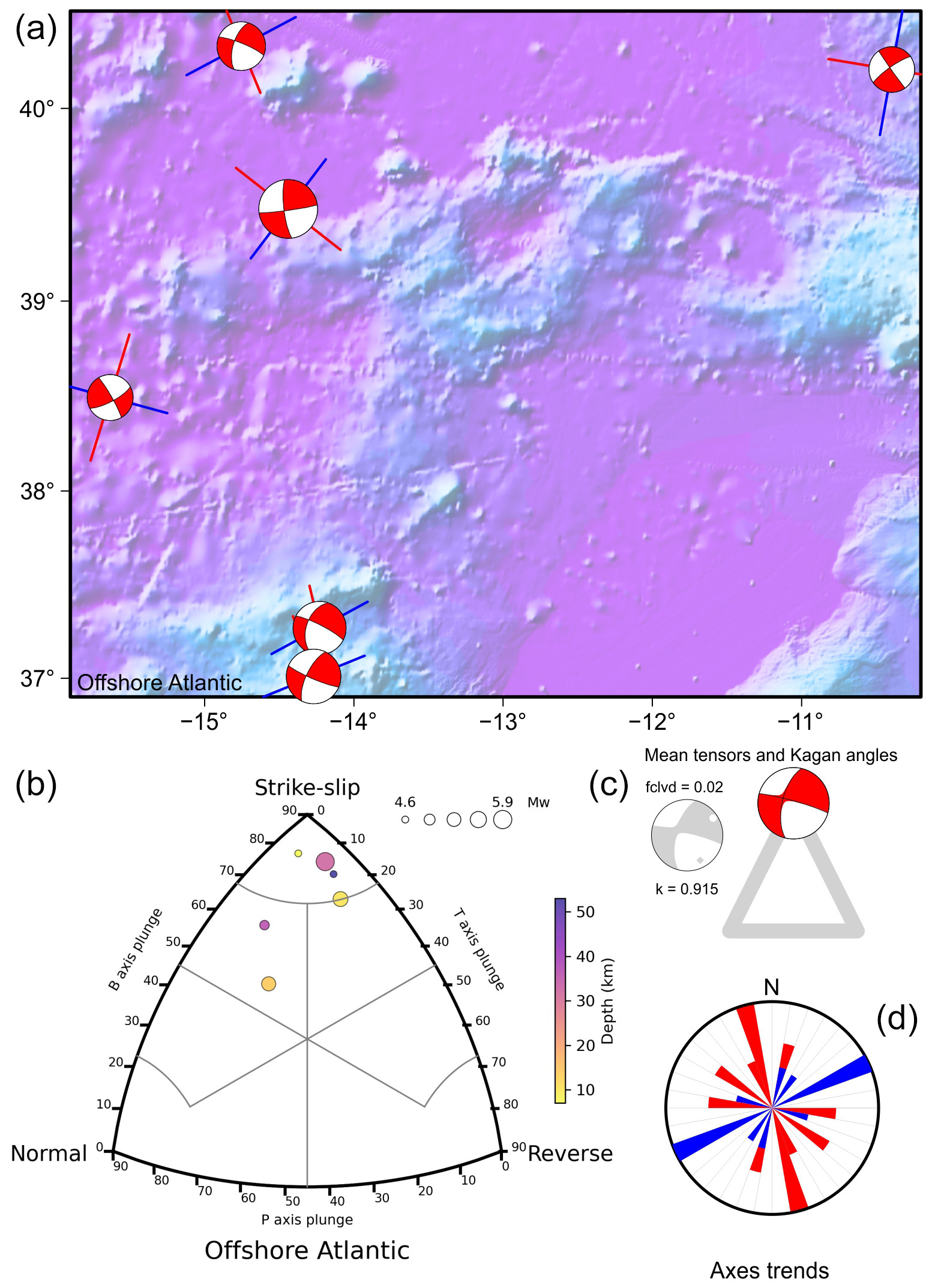

5.9 Offshore Atlantic (OA)

The focal mechanisms in the Atlantic offshore, to the north of the active plate boundary, are spatially scattered over a wide area, and some appear to be deeper than the Moho (although the mainland seismic networks poorly constrain the depth of these earthquakes). We grouped all these events based on their similar characteristics. Between the Tagus and the Iberian abyssal plains, there is a structural high, the Estremadura Spur, with E–W to NE–SW thrusts, which is the offshore extension of the SPCS, affecting the intermediate crust (Terrinha et al., 2009). Between this tectonic uplift and the Galicia Bank to the north, NNE–SSW faults seem to dominate, with kinematics similar to those onshore (Vilariça–Bragança (8, Fig. 1) and Régua–Verín (9, Fig. 1) fault systems). In the south, there are some focal mechanisms close to the Hirondelle structural high, to the north of the Gloria Fault (21, Fig. 1). In the Estremadura Spur, an NNW–SSW-shortening regime dominated the main structuring of the range during the Palaeocene–Miocene (Pereira et al., 2021). However, the most recent and active deformation appears to be transpressional (Neves et al., 2009).

There are six strike-slip focal mechanisms in this zone, some of which have a small normal component. These moment tensors show some variability in their principal axes, especially in the P axis. Therefore, the combined moment tensor presents k values below 1, an fclvd greater than 0 (Fig. 7 OA), and a tendency to have an oblate shape, with the P axis having a dominant N152° E orientation. The extension T axis is in the N057° E direction. The stress inversion indicates a strike-slip stress regime with a normal component, characterised by σ₁ at N131° E and σ₃ at N044° E, which activates right-lateral ESE–WNW faults, such as the significant major strike-slip Gloria Fault (21, Fig. 1) in the North Atlantic, which defines the present-day plate boundary between Eurasia and Africa.

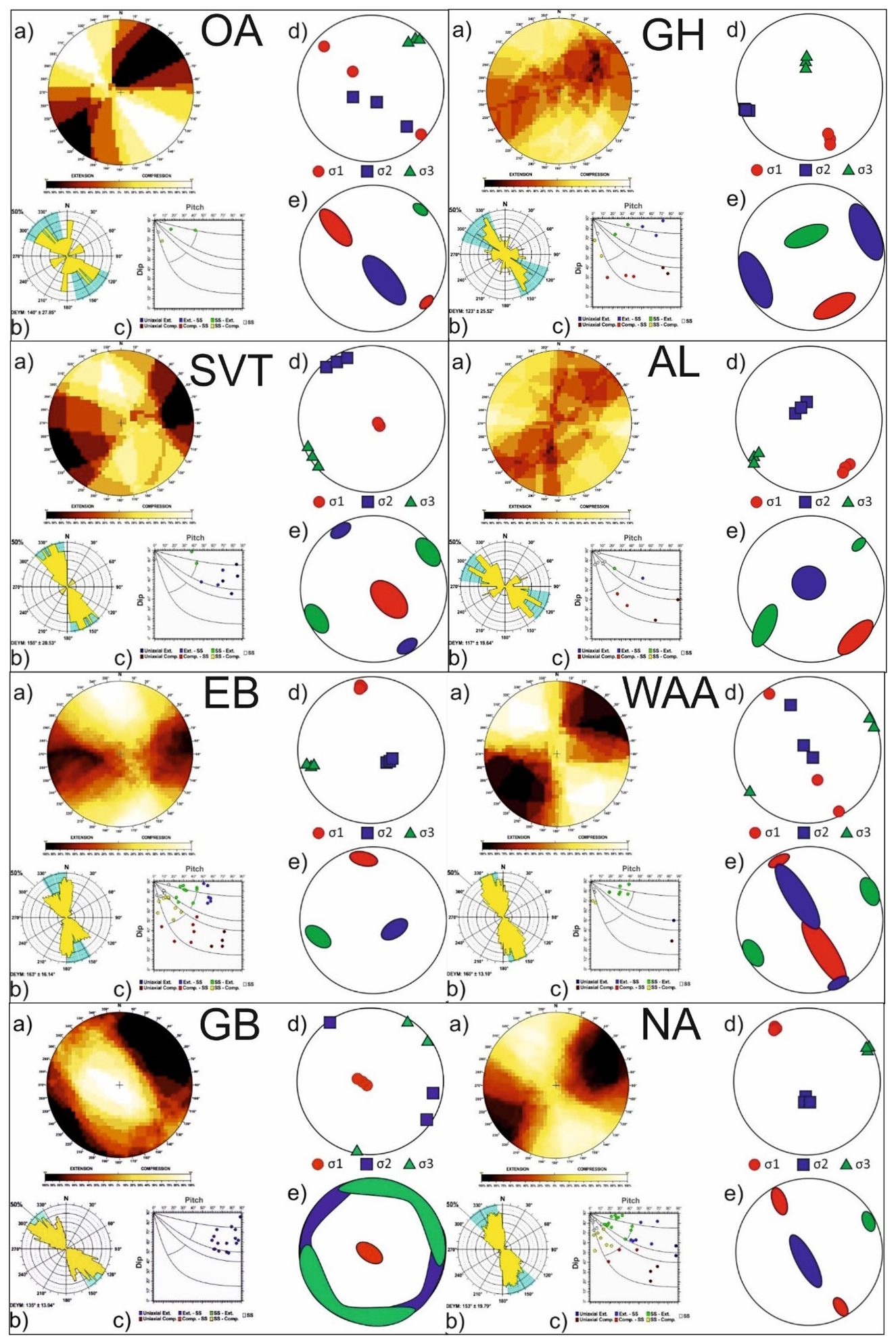

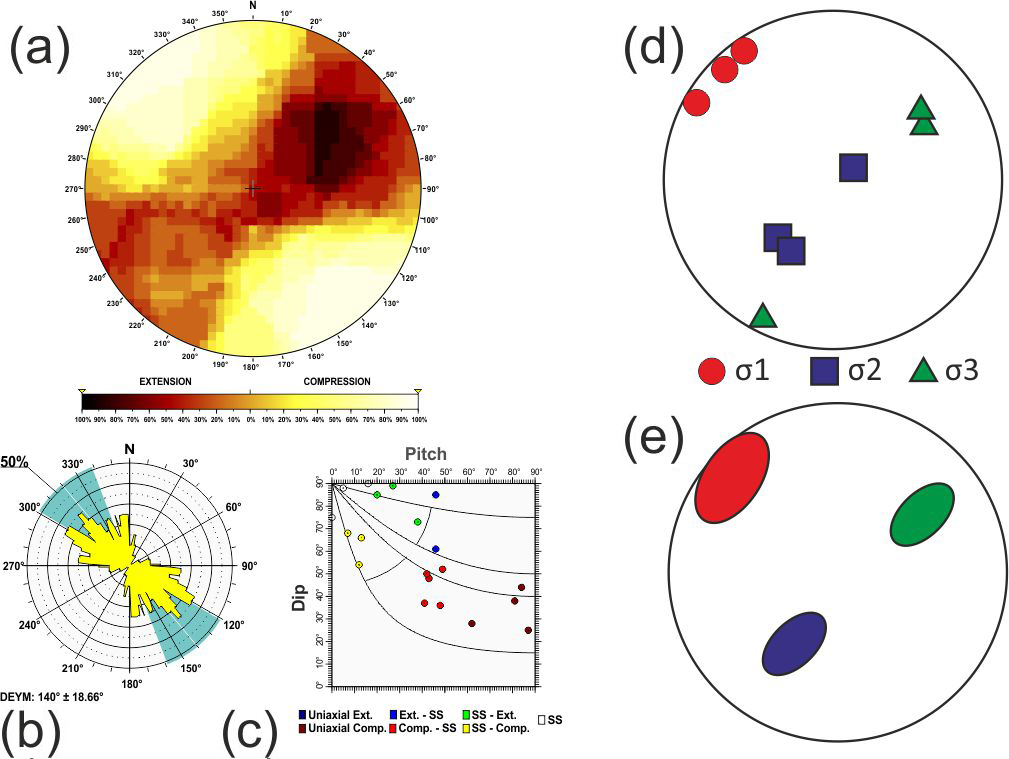

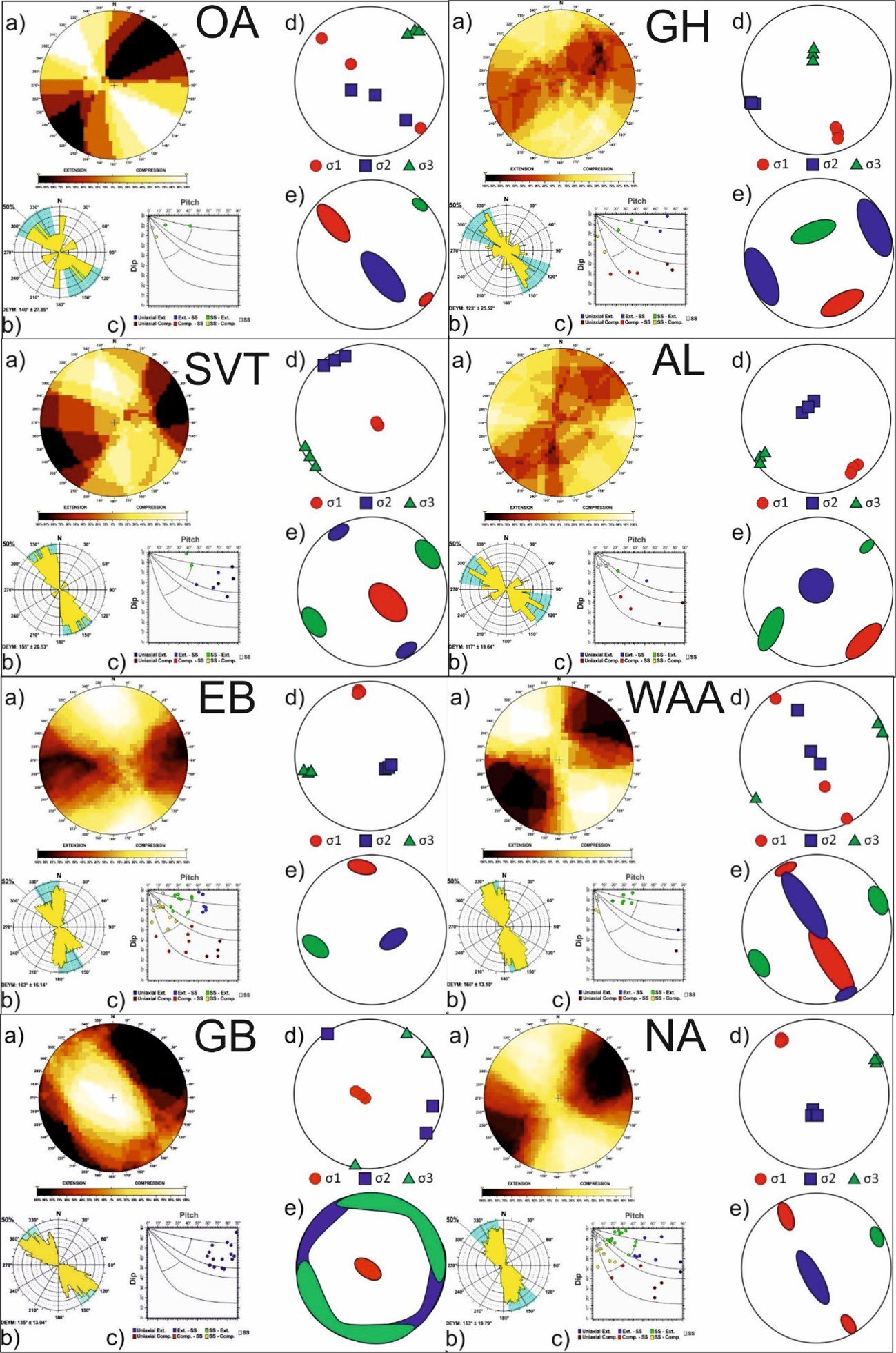

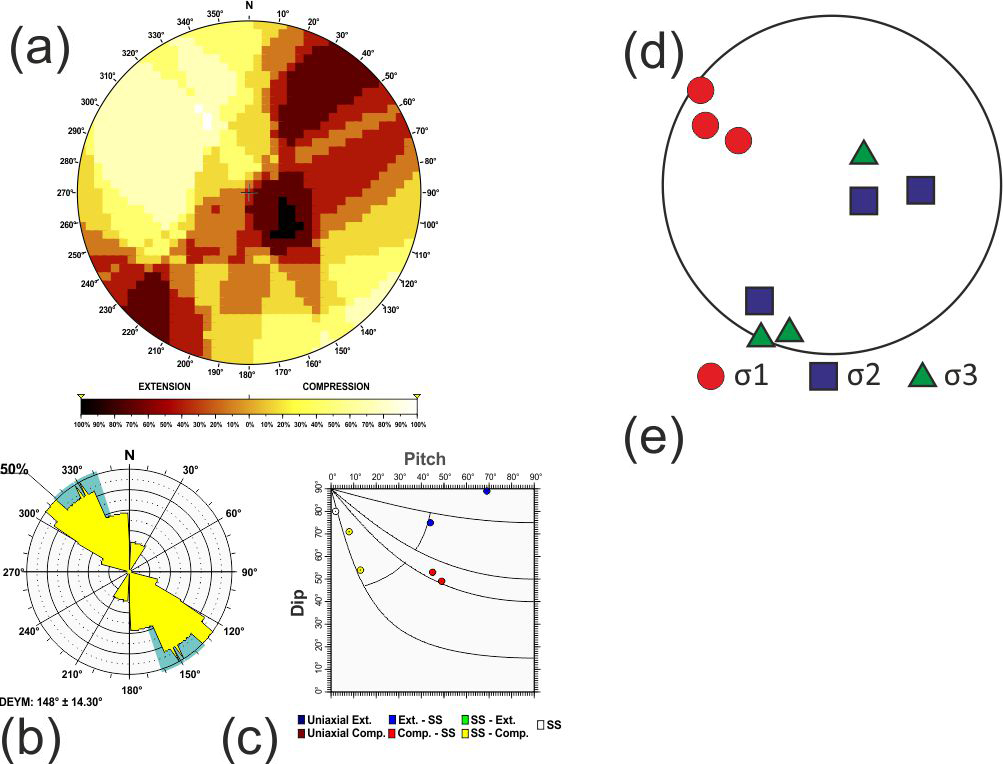

Figure 7 Results of the stress–strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Deys obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three main stress axes of the stress inversion. OA Offshore Atlantic; GH Gorringe–Horseshoe; SVT Southern Valencia Trough; AL Algarve; EB Eastern Betics; WAA Western Alcaraz Arch; GB Granada Basin; NA Northern Alboran.

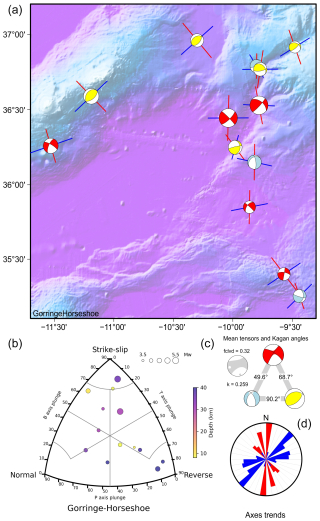

5.10 Gorringe–Horseshoe (GH)

At the active plate boundary and between the NE–SW structural highs (pop-ups and restraining steps with thick-skinned tectonic styles) of Gorringe and Horseshoe, there are 13 reverse and strike-slip focal mechanisms, several of which are below the Moho, that indicate a thrust faulting stress regime (Fig. 7 GH) with σ₁ at N159° E. These focal mechanisms are mainly strike-slip with a vertical component and reverse faults with some horizontal component. There are also normal-type mechanisms whose T axes are kinematically compatible with the T axes of the other events. The orientations of the axes of maximum horizontal shortening and extension exhibit considerable variability, with the T axes giving rise to two well-differentiated families: one N040-060° E and the other N070-090° E (see Appendices A and B). The more E–W-trending axes seem to be more associated with the strike-slip faults in the centre and south of the region, while the reverse fault events in the northern part have NE–SW B-axis orientations. The combined moment tensor presents an oblate shape, dominated by shortening, with a k value of 0.623 and an fclvd of 0.14, indicating a significant distribution of deformation across different structures. The orientations of the P and T axes are N155° E and N65° E, respectively.

Deformation along the Gloria Fault (21, Fig. 1) (zone OA) is purely strike-slip and locally transtensional. In contrast, between the Gorringe and Horseshoe tectonic uplifts (zone GH), it is compressional (Zitellini et al., 2009). The most prominent structure, the Gorringe Bank, is bounded by NE–SW crustal thrusts, the most significant one located on its northern edge. This structure was the source of destructive landslides during the Miocene, with renewed activity in the Pliocene–Quaternary period (Gamboa et al., 2021). Several earthquakes have hypocentres at upper-mantle depths (>20 km), implying that the observed surface thrusts must be linked to structure at mantle levels (Grevemeyer et al., 2017). Active deformation has reactivated and inverted former Mesozoic normal faults (García-Navarro et al., 2005) and appears partitioned between NW–SE thrusts and WNW–ESE to W–E strike-slip faults (Terrinha et al., 2009). Further south, the Coral Patch Ridge shows a similar tectonic structuring (Martínez-Loriente et al., 2013). The inferred stress tensor activates pure NE–SW thrusts and right-lateral NW–SW reverse-strike-slip and WNW–ESE strike-slip faults, which may be the tear faults of the thrusts (Ferranti et al., 2014).

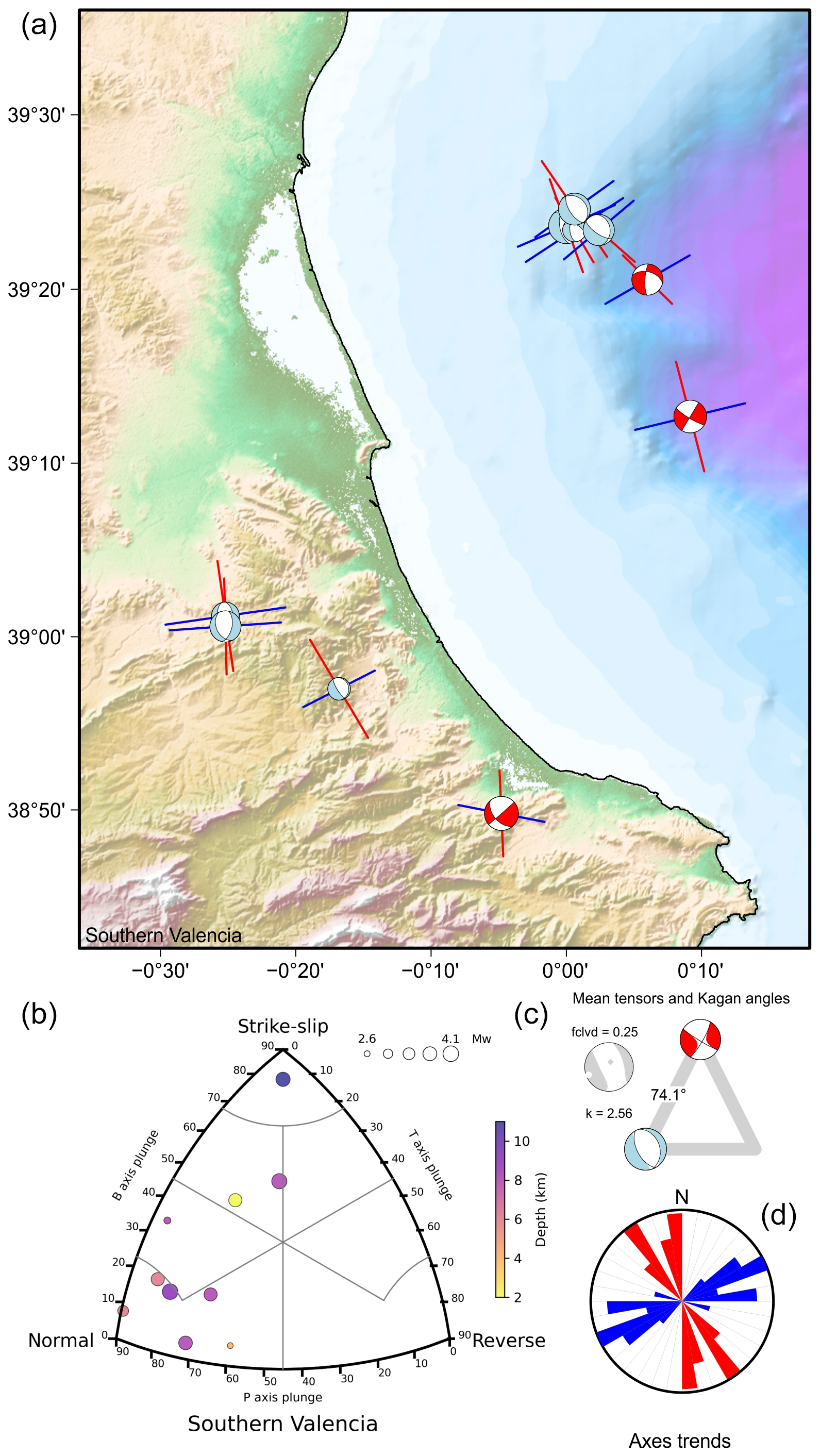

5.11 Southern Valencia Trough (SVT)

In the easternmost onshore part of the Prebetic front, on the undeformed foreland, Betic compression ceased approximately 10 Myr ago. This area is structured in a series of horsts and grabens, about 25 km long and 5 km wide (Navarrés, Tous) (22, Fig. 1), which triggered a diapirism of the Triassic salt (Keuper facies) when the extension associated with the opening of the Valencia Trough was imposed in the area (De Ruig, 1995). The primary trend of the grabens is perpendicular to the Betic front (NW–SE), although there are also parallel grabens, indicating triaxial extension. Their position explains why they are not plug-type diapirs, but rather linear ones, which were controlled by multiple faulting episodes (Jackson and Hudec, 2017). The diapirism is still active, affecting Quaternary materials (Gutiérrez et al., 2019). The coastline also changes in this sector to NW–SE, while, further north, up to the Pyrenees, it has an NE–SW orientation, which is the same as that of the primary faults in the Valencia Trough, as in the WVT. This orientation, which is transverse to the main trough, is likely influenced by the Betic front. The offshore Cabo de la Nao Fault (23, Fig. 1) would be one of the primary faults of this transverse fault system (Maillard and Mauffret, 1999).

We have 10 focal mechanisms in this tectonic zone. Most of them indicate normal faulting, but there are also strike-slip focal mechanisms. The combined tensors present minimum rotation angles of 74°, showing a permutation between the B and P axes. The combined tensor has an fclvd value of −0.25 and a prolate tensor shape with k=2.56, showing the predominance of the N069° E-oriented extension. The stress tensor obtained from the inversion (Fig. 7 SVT) indicates a normal faulting stress regime, with σ₃ at N058° E, which can activate the transverse fault system of the southernmost part of the Valencia Trough, located in the foreland of the Betic orogen. The stress tensor solution is very similar to those of IC, WVT, and EPCE.

5.12 Algarve (AL)

The southwestern corner of the Iberian Massif, in the Portuguese Algarve, also comprises a series of Mesozoic and Cenozoic materials, known as the Algarve Basin, which was inverted during the Cenozoic due to N–S to NW–SE shortening. The NW–SE shortening developed later, from the Miocene to the present (Terrinha, 1998; Ramos et al., 2015), and activated E–W- to NE–SW-striking thrust faults. Still in this zone but north of the basin, there are significant strike-slip faults, such as the southernmost part of the Messejana–Plasencia Fault (18, Fig. 1) (NE–SW, left-lateral) and the São Marcos–Quarteira Fault (24, Fig. 1) (NW–SE, right-lateral). According to GPS data, the southern block of this fault exhibits notable movement to the northwest relative to the northern block (Cabral et al., 2017). It displays apparent activity during the Quaternary (Cabral et al., 2019). Offshore, the most relevant tectonic structure is the Portimão Bank, bounded by E–W thrusts and co-located with a Cretaceous magmatic intrusion (Terrinha et al., 2009; Vázquez et al., 2015; Neres et al, 2018b). Throughout the Algarve Basin, there is active salt tectonics (Matías et al., 2011).

We can group the focal mechanisms in this zone into pure and reverse strike-slip faulting. Although there is some scatter in the orientation of the T axes, the P axes are very consistent, with the combined strain tensor having an orientation of the maximum shortening axis at N143° E. The combined moment tensor, however, is far from a double couple, showing a very high fclvd of 0.4 and an oblate tensor shape, with a k value of 0.132. This k value is the lowest value of all obtained solutions, showing the dominance of the shortening deformation tensor.

The inversion of the 11 mechanisms indicates a thrust faulting stress regime (Fig. 7 AL) with σ₁ at N140° E, which activates NE–SW-striking thrust faults and left-lateral N–S- and NW–SE-striking right-lateral strike-slip faults. The solution is very similar to that obtained for the WCS, showing that this type of stress predominates throughout the SW corner of Iberia to the west of the Betic front. This observation, together with the absence of thrust faulting stresses in the Iberian Betic foreland, indicates that one of the effects of the emplacement of the Alboran Domain to the west was the mechanical decoupling between Iberia and Africa (de Vicente and Vegas, 2009).

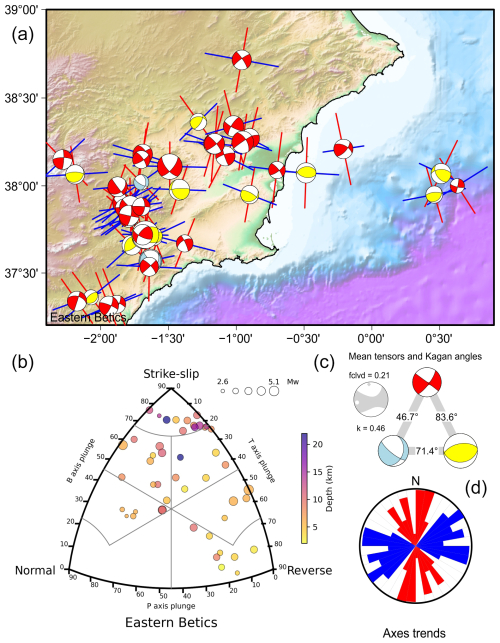

5.13 Eastern Betics (EB)

The easternmost part of the Betics shows a significant level of seismic activity. This area was affected by extensional tectonics during the opening of the Algero-Balearic Basin throughout the Miocene, the most significant extensional episode occurring in the Serravallian–Tortonian (Comas et al., 1999). However, it may have maintained a specific transcurrent character (Montenat and d'Estevou, 1999). Since the Late Miocene, the dominant tectonics in the region has been characterised by shortening, resulting in the tectonic inversion of the Miocene basins (Sanz de Galdeano, 1990; Martínez-Díaz, 1998). The active continental indentation of the Águilas Arc to the northwest is related to this shortening, which is linked to the collision of Africa and Eurasia, in which the arc forms part of the African crust (Ercilla et al., 2022; Tendero-Salmerón et al., 2022). The overthrusting arc is bounded to the east by the right-lateral strike-slip Mazarrón Fault (25, Fig. 1) and to the west by the left-lateral strike-slip Palomares Fault (26, Fig. 1). The latter extends southwestwards on the Carboneras Fault (27, Fig. 1) to the offshore Alborán Sea. The indentation implies a progressive tilting towards the SE of the whole arc (Ercilla et al., 2022; Tendero-Salmerón, 2022). In the frontal part of the arc, once in the Iberian crust, the deformation is accommodated in a left-lateral NE–SW transpressional corridor, the Eastern Betic Shear Zone (EBSZ), specifically the Alhama de Murcia Fault (28, Fig. 1), in continuity with the Trans-Alboran Transpressional Shear Zone (TASZ). It is in this shear zone that the most active faults of the Iberian Peninsula are found, with deformation rates between 0.5–1.5 mm yr⁻¹ as indicated by palaeoseismological and geodetic methods (Grácia et al., 2006; Herrero-Barbero et al., 2020; Gómez-Novell et al., 2022; Moreno et al., 2015; Echeverría et al., 2015; Martín-Banda et al., 2016). The simultaneous activity of these two macrostructures implies the presence of a deformation partitioning process (sensu stricto), potentially with a certain degree of mechanical decoupling between the African and Iberian crust.

The focal mechanisms in this tectonic zone are dominantly strike-slip and reverse events, with the most frequent having a specific oblique character. At the same time, some normal faulting events with a strike-slip component are also present. The minimum rotation angle between the strike-slip moment tensor and the extensional moment tensor is about 47°, indicating the predominance of a transcurrent character in the normal mechanisms (see Appendices A and B). The combination of all the mechanisms results in an oblate-shaped strain tensor, dominated by shortening, with fclvd values of 0.21 and a k value of 0.46. The P axis has an N172° E orientation, although the P axes of all mechanisms have a large scatter, which is controlled by the location of the events (see Appendices A and B). This variability in the shortening axes may be influenced by the presence of large crustal structures that generate local block rotations (Martínez-Díaz et al., 2012) or by local deformation distribution patterns in the area (Alonso-Henar et al., 2019).

The inversion of the 47 focal mechanisms (Fig. 7 EB) provides a thrust to strike-slip faulting stress regime with σ₁ at N171° E, which can activate NE–SW- to ENE–WSW-striking thrust faults, as well as right-lateral NW–SE- and left-lateral NNE–SSW-striking strike-slip faults. There are also three NW–SE-striking normal fault mechanisms in the area, which have a common σ₃ (NE). This stress tensor solution explains the simultaneous movement of the Águilas Arch and Alhama de Murcia fault (28, Fig. 1).

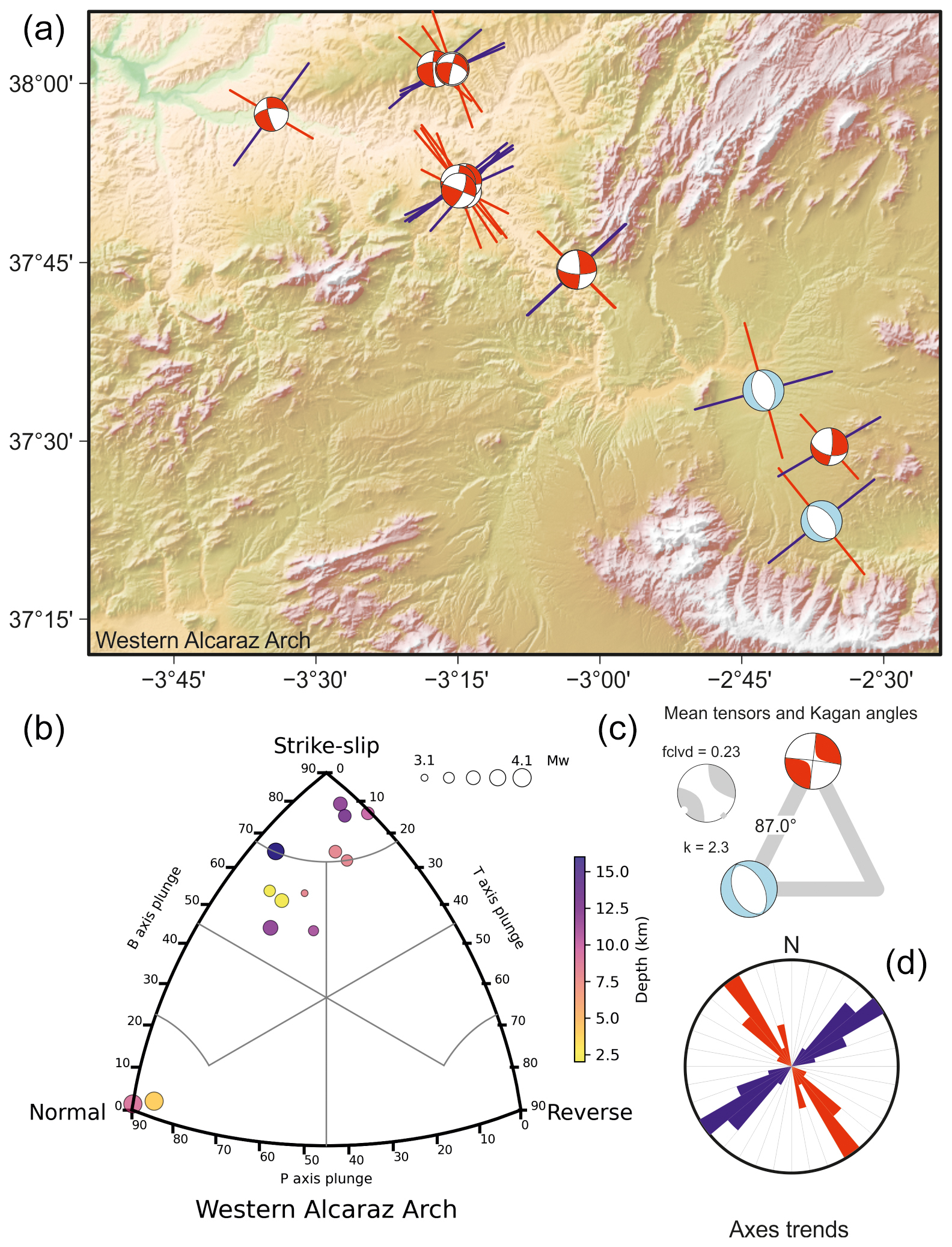

5.14 Western Alcaraz Arch (WAA)

This tectonic zone includes the westernmost part of the Alcaraz (or Prebetic) Arch and a sector of the Guadix Basin, which has recorded intense seismic activity in recent years. The structural morphology is similar to that of other arcs in the Betics (Águilas) and the Alborán Sea, which are interpreted as resulting from tectonic indentation processes, in this case, incipient (Tendero-Salmerón, 2022). The seismicity is concentrated along two NW–SE to ESE–WNW right-lateral strike-slip faults, the Tiscar and Guadiana Menor (29, Fig. 1) faults (Tendero-Salmerón et al., 2020), which affect Quaternary materials and the Cenozoic sediments of the Cenozoic Guadalquivir Basin. The Torreperogil–Sabiote seismic series, characterised by strike-slip focal mechanisms, also appears to be related to faults possibly rooted in the basement (Pedrera et al., 2013). To the south, the intramountain Guadix Basin (30, Fig. 1), with a general NW–SE trend, is filled with Tortonian to Pleistocene sediments (Pla-Pueyo et al., 2009) bounded by NW–SE normal faults (Alfaro et al., 2008; Sanz de Galdeano et al., 2012).

Of the 14 focal mechanisms, 2 are normal faulting events (in the Guadix Basin) and the rest are strike-slip events (also one in Guadix). The orientation of the T axes in both types of mechanisms is consistent with the minimum rotation angle between strike-slip and normal events being close to 90°. The combined strain tensor has a prolate shape, dominated by the T axis, with an fclvd value of −0.23 and a k of 2.3. The orientation of the T axis is N052° E, while the P axis has an orientation of N142° E.

The stress tensor obtained by inversion (Fig. 7 WAA) indicates a strike-slip stress regime with a normal component, characterised by σ₁ at N153° E. This stress regime activates left-lateral N–S and right-lateral ESE–WNW strike-slip faults, as well as NW–SE normal faults. The inferred stress tensor is like that obtained by Tendero-Salmerón et al. (2020) from five mechanisms in the Tiscar and Guadiana Menor faults (strike-slip stress regime with σ₁ at N143° E).

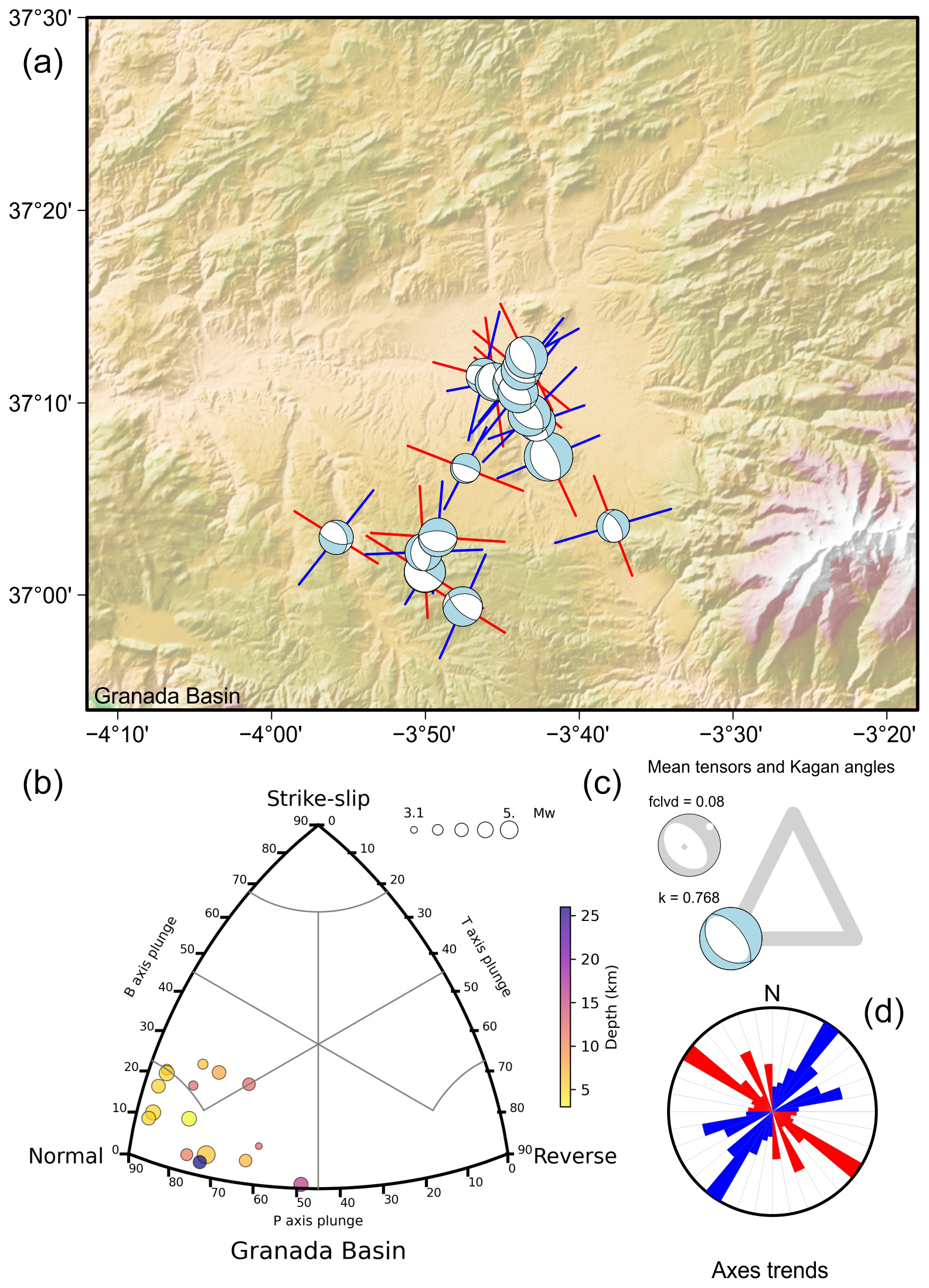

5.15 Granada Basin

Within the tectonic context of NW–SE convergence between Africa and Eurasia (Iberia) and the westward emplacement of the Alboran Domain, accompanied by the rollback of the southern Iberian slab, the presence of NW–SE extensional basins within the orogen appears to be kinematically necessary. The easternmost part of the Betic Orogen is dominated by processes of thrust arc indentation with tectonic transport to the northwest (Tendero-Salmerón, 2022), while the westernmost arc formed by the Betic and Rif arcs surrounding the Strait of Gibraltar is located to the west. This kinematic pattern is supported by the presence of an NW–SE extensional basin within the orogen, which is dominated by the presence of NW–SE normal faults related to radial extension (Reicherter and Peters, 2005). This kinematics is confirmed by GPS data (Cannavò and Palano, 2016; Neres et al., 2018a, 2019). The boundary between these two zones within the Betic Orogen is marked by extensional basins aligned and bounded by NW–SE normal faults, such as the Guadix Fault in WAA, and by the Granada Basin. The age of deformation in the Granada Basin ranges from Late Miocene to present, defining a seismicity corridor approximately 300 km wide (Galindo-Zaldivar et al., 1999). The most prominent faults here are the Granada (31, Fig. 1), Sierra Elvira-Dílar (31, Fig. 1), and Padul–Dúrcal (32, Fig. 1) faults (Sanz de Galdeano et al., 2012).

The focal mechanisms in the Granada Basin are extensional and cluster into two families, whose T-axis orientations form an angle of 30–40° with each other. The combined moment tensor is of oblate type, dominated by vertical shortening and with fclvd values of 0.08 and k of 0.768. The T axis has an orientation of N048° E, and the B axis has an orientation of N139° E, which is consistent with the dominant stress regimes in the surrounding zones.

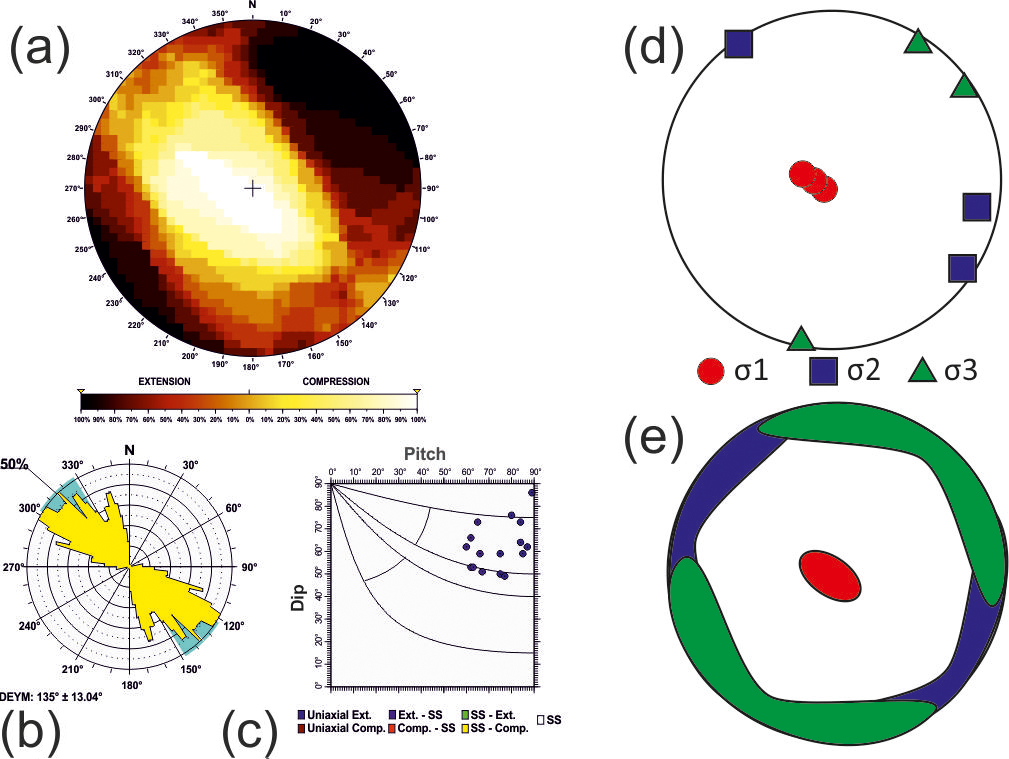

The seismic sequence that occurred in 2021 enabled the determination of the stress tensor from five focal mechanisms of normal faulting stress regime (R=0.28), with σ₃ at N049° E (Madarieta-Txurruka et al., 2022). In our stress inversion (Fig. 7 GB), we utilised 16 focal mechanisms that yield a highly consistent triaxial normal faulting stress regime with σ₃ striking at N033° E. Therefore, this stress orientation is congruent with that obtained from the east (WAA and EB), facilitating the emplacement of WB to the west. The most recent calculated palaeostress, σ₁ subvertical and σ₃ subhorizontal trending NE–SW, activates normal faults but coevally, while that of σ₁ subhorizontal NW-directed and σ₃ NE–SW subhorizontal has a strike-slip faulting regime that has been interpreted as periodic strike-slip and normal faulting events due to a permutation of the principal stress axes (Reicherter and Peters, 2005).

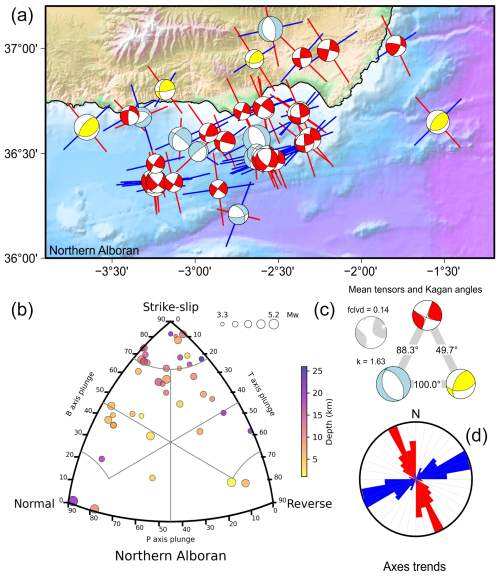

5.16 Northern Alboran (NA)

The offshore deformation of the northern margin of the Alborán Sea has been explained because of the ongoing slab rollback in the Alborán Domain, in the Gibraltar Arc (Betics–Rif), and of the indentation tectonics that predominates to the east and south, giving rise to a complex faulting pattern (Galindo-Zaldivar et al., 2022). On the other hand, in the easternmost part of this zone, the most important tectonic structure is the Carboneras Fault (27, Fig. 1), with the same kinematics as the Palomares Fault (26, Fig. 1) (EB). This structure has an NE–SW strike, extends offshore, and has been active since the Late Miocene. This fault shows a left-lateral strike-slip movement that occurs at a rate of 1.3 mm yr⁻¹ (Moreno et al., 2015) and an offset of more than 15 km (Gràcia et al., 2006; Rutter et al., 2012): four palaeoseismic events have been identified (Masana et al., 2018). Among the 42 focal mechanisms analysed, we find reverse and normal solutions but mainly strike-slip ones. Except for three normal faulting focal mechanisms indicating N–S extension, the others show a T (or B) axis towards NE–SW. The shortening axes in the focal mechanisms are very consistent, with orientations between N130° E and N180° E. The minimum rotation angles between the normal faulting mechanisms and the strike-slip and thrust mechanisms are high, ranging from 90–100°; in contrast, the minimum rotation angle between the reverse and strike-slip mechanisms is approximately 50°, indicating a strong strike-slip component in the thrust earthquakes (see Appendices A and B). The combined moment tensor is a slightly prolate strike-slip deformation tensor, with a k value of 1.63 and an fclvd of −0.14. The extensional stress axis, which would be dominant in the deformation of the zone, has an N065° E trend, while the shortening axis has an N154° E trend. The stress inversion result is similar to those of WAA and EB. The obtained solution (Fig. 7 NA) does not seem to reflect the structural complexity indicated by the field and GPS data (Galindo-Zaldivar et al., 2022). The solution exhibits a strike-slip stress regime with a normal component, characterised by σ₁ in N149° E and σ₃ in N064° E. Therefore, in this zone, the indentation process would predominate over the rollback process.

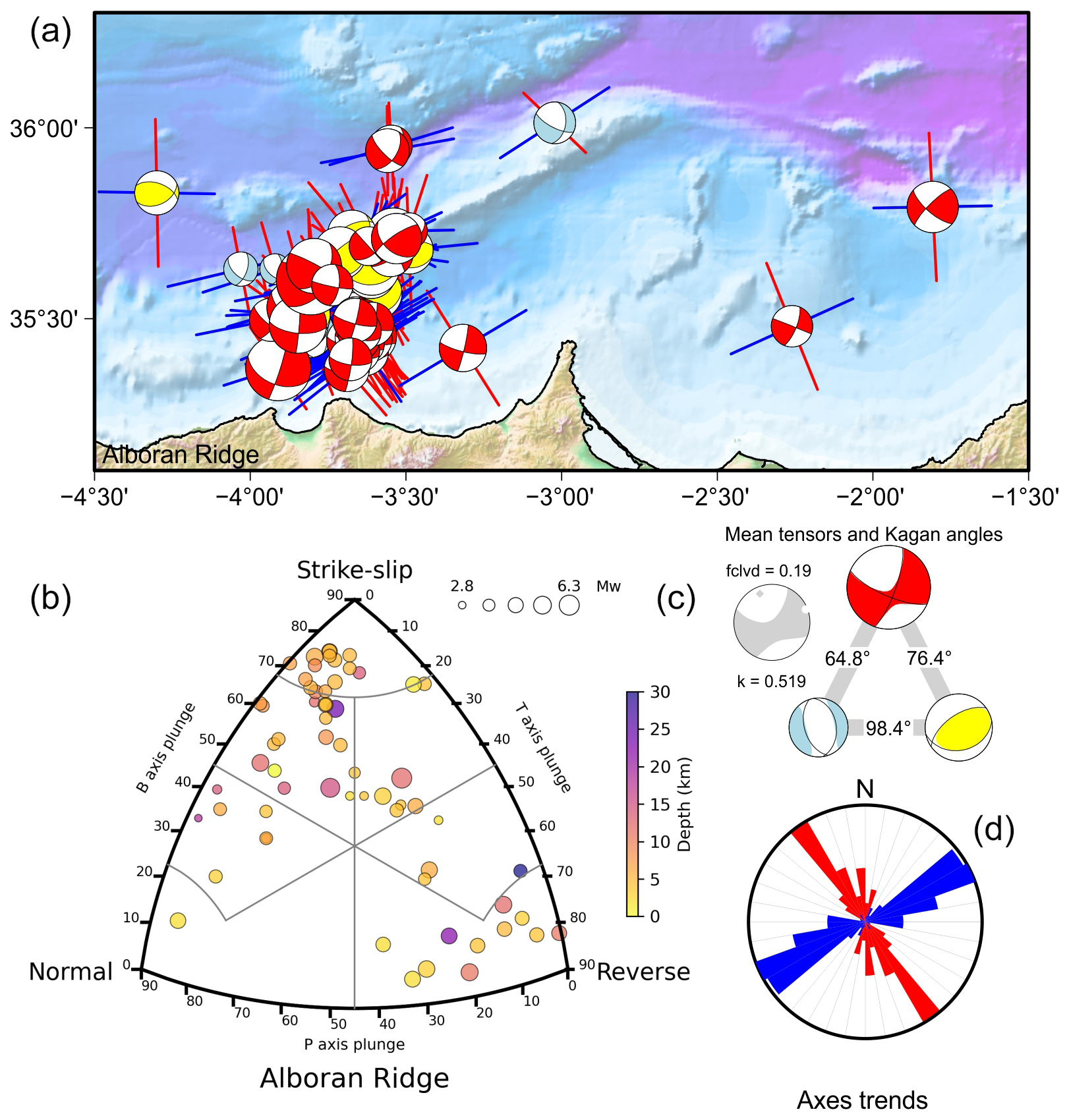

5.17 Alboran Ridge (AR)

The most prominent structures in the Alborán Sea, in the central part of the Alborán Domain, are the Alborán Ridge (33, Fig. 1), a crustal pop-up with the main tectonic transport to the NW and outcropping Neogene volcanic materials; the left-lateral Al Idrissi Fault (34, Fig. 1); and the right-lateral Yusuf Fault (35, Fig. 1). The three structures draw an indentor with similar kinematics to those of Águilas and Cazorla (in EB and WAA) (e.g. Tendero-Salmerón, 2022). Since the Late Miocene, magmatic intrusions in the Alborán Ridge seem to have acted as a backstop that favoured its uplift relative to the indentation (Tendero-Salmerón, 2022). The continental crust to the south of the structures above appears to belong to the African Plate, so these faults are considered to constitute the active plate boundary between Africa and Eurasia (Iberia), with the Yusuf Fault (35, Fig. 1) extending to the Tell Mountains orogen in Algeria (Martínez-García, 2012; Gómez de la Peña, 2017). The seismic crisis of 2016, which included an M_w 6.4 earthquake located at the southern limit of the Al Idrissi fault system (34, Fig. 1), enabled the definition of its trace by connecting it with the Bokkoya and Trougout faults, which enter Africa onshore and connect with the Nekor Fault (36, Fig. 1). It is therefore a very recent plate boundary (Gràcia et al., 2019). The seismic sequence indicates the presence of restraining steps along the strike-slip fault (Stich et al., 2020).

The focal mechanisms in this tectonic zone include pure reverse faulting, oblique faulting with a mainly normal component, and normal faulting with a strike-slip component. The minimum rotation angles between the three fault types are high, showing the activation of different structures in response to a consistent strain tensor. The orientation of the T axes is very congruent in all mechanisms, with directions between N050° E and N080° E. The shortening axes show somewhat more variability. The combined moment tensor has an oblate shape, with k 0.519 and fclvd 0.19, and is dominated by shortening with an N157° E orientation. The mean T strain axis is N069° E.

The inversion of the 63 focal mechanisms (Fig. 8 AR) indicates a transpressive strike-slip faulting stress regime, with σ₁ at N161° E, which activates mainly N–S to NNE–SSW left-lateral faults, NW–SW right-lateral strike-slip faults, and E–W to ENE–WSW thrust faults. There are also five normal faulting mechanisms with nodal planes sub-parallel to the inferred σ₁ orientation, indicating the presence of secondary normal faulting steps along faults in the principal direction. The stress solution is intermediate to that of the Águilas (EB) and Alcaraz (WAA) indentors.

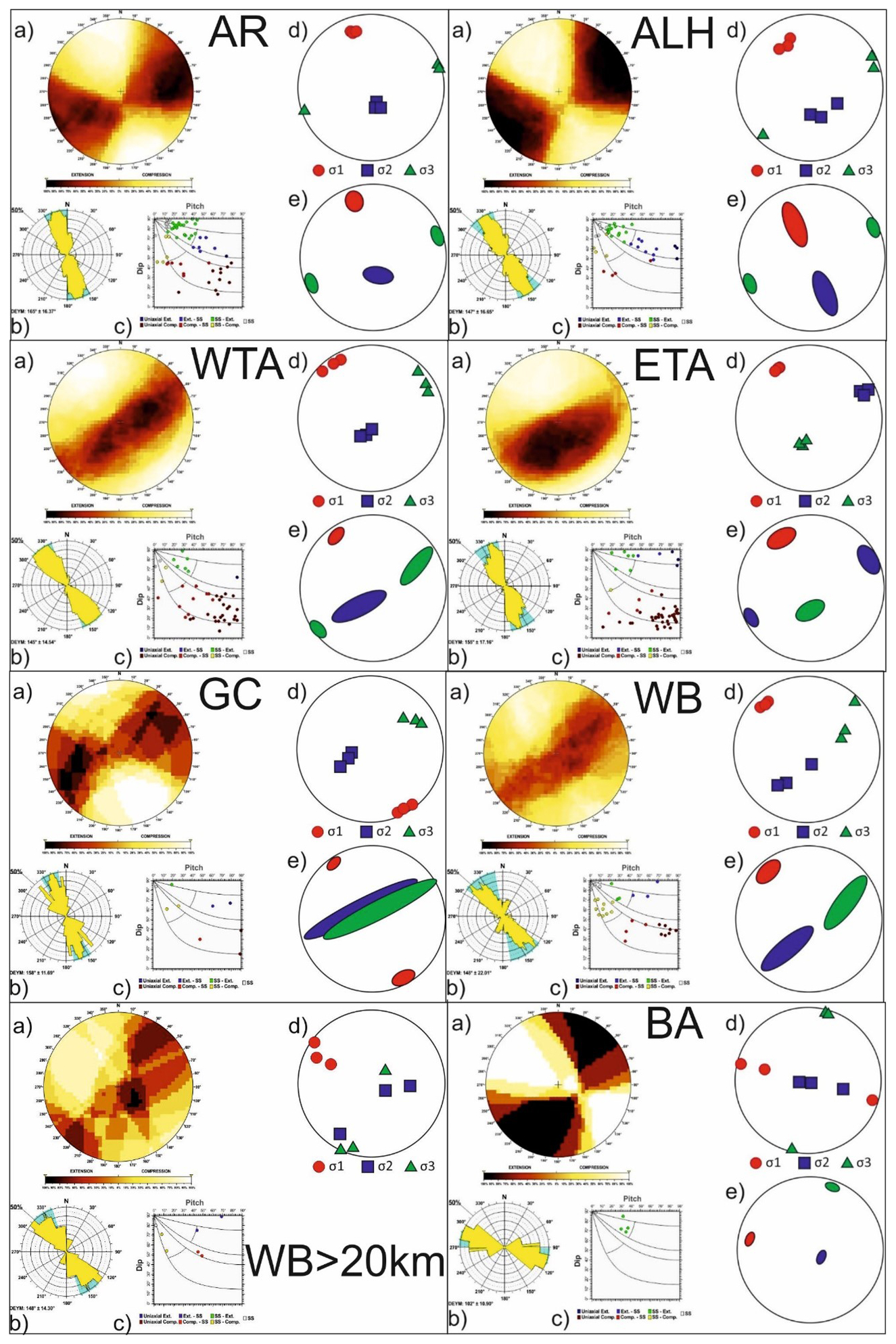

Figure 8 Results of the stress–strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Deys obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion. AR Alboran Ridge; ALH Al Hoceima; WTA Western Tell Atlas; ETA Eastern Tell Atlas; GC Gulf of Cádiz; WB Western Betics (WB depth >20 km); BA Betics Antequera.

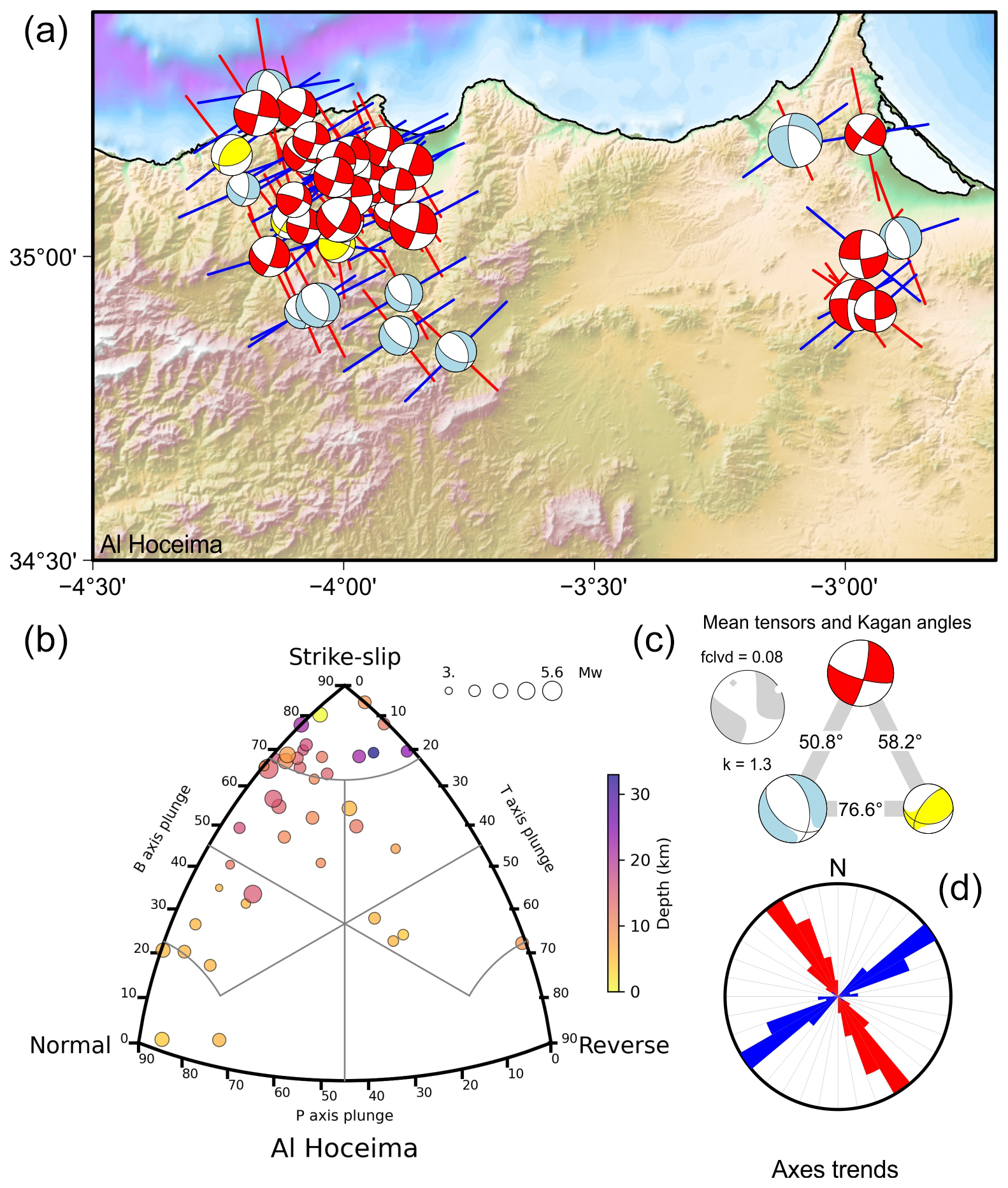

5.18 Al Hoceima (ALH)

The southern sector of the Alboran Domain, on the northern coast of Morocco, shows significant seismic activity (2004 M_w 6.4 and 1994 M_w 5.9 earthquakes) in the Al Hoceima area (37, Fig. 1) with ruptures up to 20 km, which allowed us to infer an associated strike-slip stress regime (R=0.5) with σ₁ at N161° E and σ₃ at N071° E (van der Woerd et al., 2014). However, the Trougout (N171° E) and Bokkoya (N030° E) faults, which continue offshore in AR, together with the Bousekkour–Aghbal (N020° E) Fault, bound the Pliocene–Quaternary Nekor Basin and define a transtensional area between the Nekor (36, Fig. 1) and Al-Idrissi (34, Fig. 1) faults (d'Acremont et al., 2014). Backstripping analyses of the sediments of Al Hoceima Bay during the last 280 Kyr indicate a westward migration of deformation with vertical throw rates of 0.47 mm yr⁻¹ because of the interaction between the northwestward movement of the Alboran indentor and the southwestward displacement of the Rif (Tendero-Salmerón et al., 2021). Further to the east, the NE–SW Kert and Nador faults (38, Fig. 1) appear to have a normal component (Ammar et al., 2007), although the considered focal mechanisms are mainly strike-slip faults like those of Al Hoceima. Therefore, we grouped them into a single population.

The focal mechanisms indicate mainly strike-slip and normal faulting, with a significant population of oblique faults with both components. Reverse-type events with strike-slip components are also present. All focal mechanisms exhibit highly consistent axes of maximum shortening and horizontal extension, with minimal variability. The combined moment tensor indicates a strike-slip deformation with an extension component close to a double couple, with an fclvd value of −0.08 and a k value of 1.3. The P axis of the combined moment tensor has an orientation N143° E, and the T axis has an orientation of N060° E.

As there are more normal fault-type focal mechanisms in this population than in AR, the stress tensor shows a strike-slip faulting solution (Fig. 8 ALH) with a normal component, with σ₁ at N152° E and σ₃ at N064° E. Therefore, the tectonics in this zone is presently transtensional.

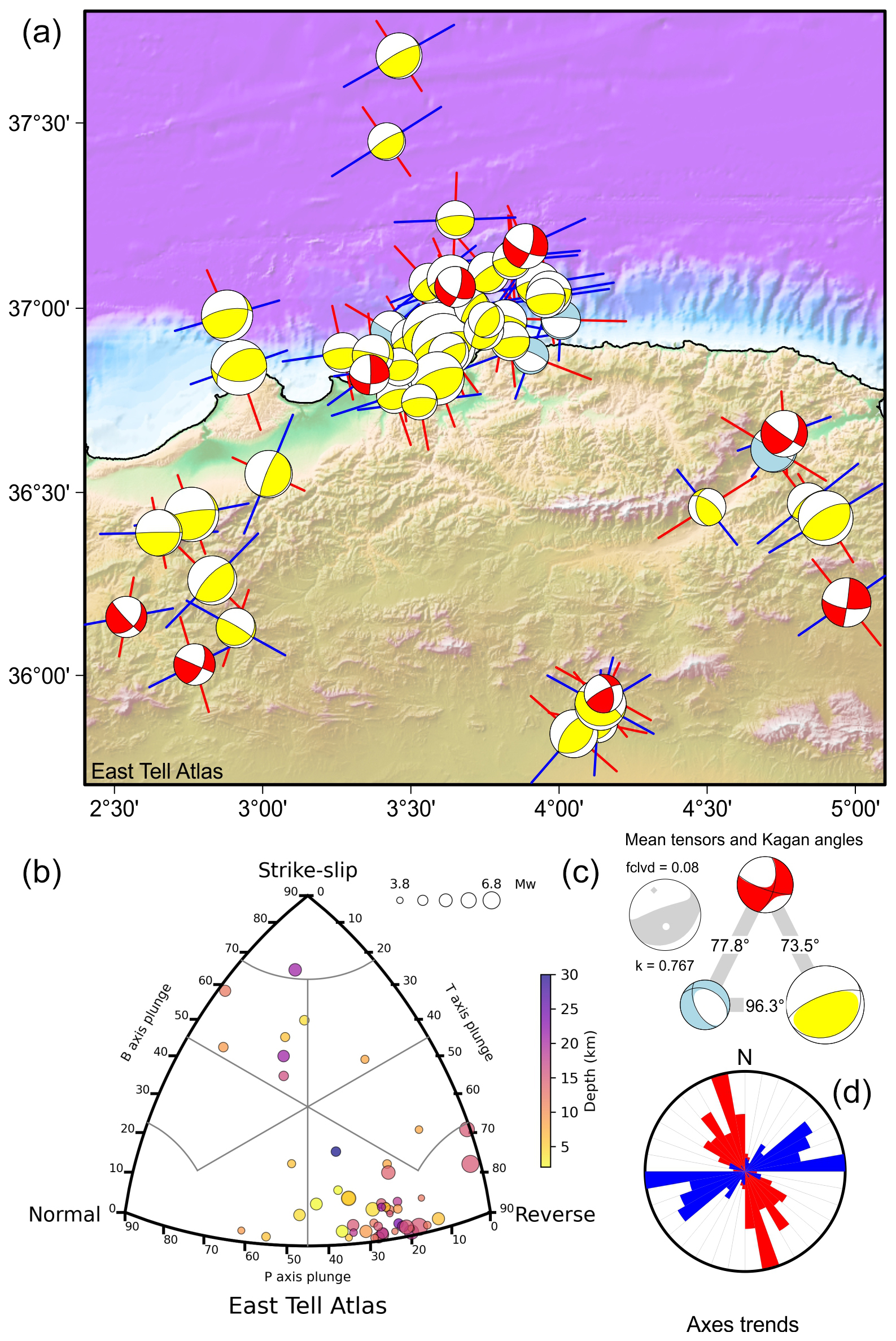

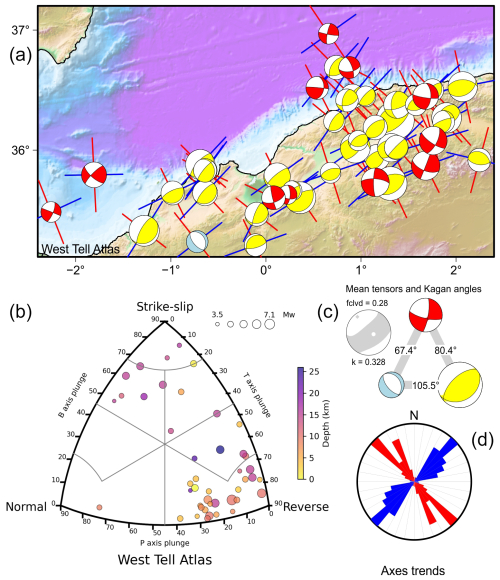

5.19 Western–Eastern Tell Atlas (WTA–ETA)

The Algerian Tell Atlas is the most seismically active area in the western Mediterranean, including, among others, the 1980 El Asnam earthquake, M_w 7.3, which occurred on a 36 km long thrust linked to an NE–SW fault propagation anticline (39, Fig. 1). The focal mechanism of this earthquake indicated the presence of an NW-dipping thrust plane (Meghraoui et al., 1986). In general, this is in good agreement with the tectonics of the range, characterised by dipping faults related to fault adaptation–propagation anticlines. These main neotectonic structures correspond to E–W-striking to NE–SW-striking thrusts that cut Quaternary rocks. The main intramountain basins are the Cheliff, Mitidja, Soummam, Hodna, and Constantine basins (Maouche et al., 2019, and references therein). The coast shows evidence of folding and uplift, with marine terraces uplifted during the Pleistocene and Holocene (Maouche et al., 2011).

In the WTA, the most frequent focal mechanisms are reverse, coexisting with strike-slip and some normal faulting, all of them kinematically compatible with NW–SE horizontal shortening axes. The combined moment tensor is oblate reverse, with k=0.328 and fclvd 0.28, showing the predominance of horizontal shortening. The P axis has an orientation N143° E, and the B axis has an orientation N050° E. Further east, the population of focal mechanisms is similar, primarily characterised by thrusting events. The combined moment tensor is therefore of a shortening type and oblate, although it is closer to the double couple, with k=0.767 and fclvd = 0.08. The P axis is oriented N155° E, and the B axis is oriented N069° E; therefore, the shortening is more northerly in this area than it is further to the west.

Because the inferred moment tensor vectors and shortening directions are not coaxial, it has recently been suggested that, from the Alboran Domain to the east, transpressional tectonics predominates, activating E–W-striking right-lateral strike-slip faults and NE–SW-striking thrusts (Meghraoui and Pondrelli, 2012). Stress inversions based on earthquake focal mechanisms indicate that the deformation is accommodated by E–W-striking reverse-strike-slip faults in the Eastern Tell. In contrast, the Western Tell is dominated by strike-slip faults (Soumaya et al., 2018). The stress inversions obtained in this study (Fig. 8 WTA, ETA) show a very similar σ₁ orientation for the eastern and western parts of the Tell-Atlas, N149° E (west) and N145° E (east), with a thrust faulting stress regime to the east and with a larger strike-slip component in the west, contrary to Soumaya et al. (2018). Both solutions activate NE–SW-striking thrust faults and NW–SE right-lateral and N–S left-lateral strike-slip faults.

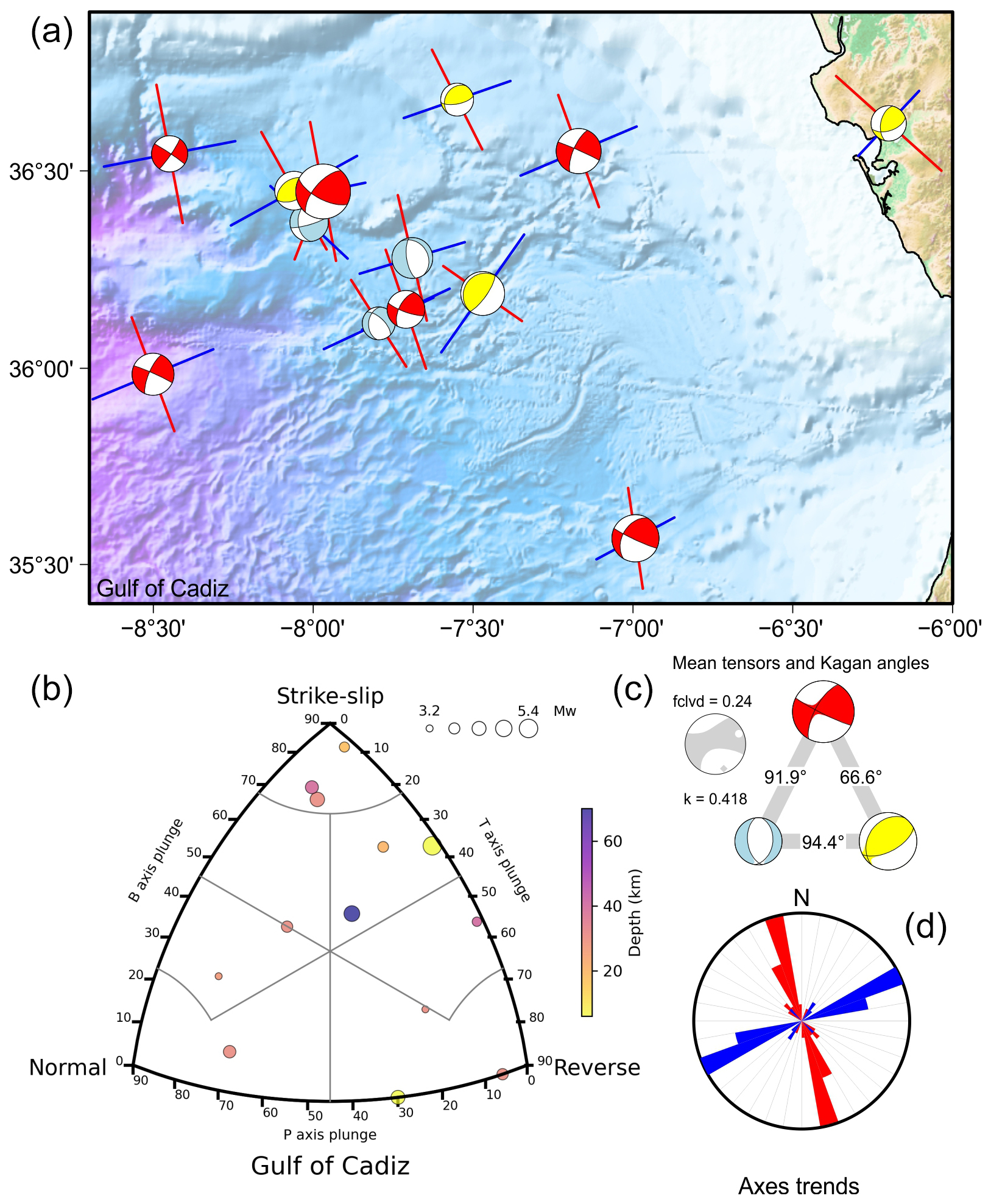

5.20 Gulf of Cádiz (GC)

The Gulf of Cádiz appears to be dominated by the southwestward movement of the Betic–Rif orogen, which has built up a sediment stack that is up to 12 km thick in an accretionary prism characterised by west-verging thrust-spreading anticlines (40, Fig. 1). The prism is related to the subduction of the southern margin of Iberia below the Rif–Betic–Alboran microplate. Subduction appears to have slowed down significantly during the last 5 Myr, although deformation in the accretionary prism still affects recent sediments (Gutscher et al., 2012). Thermo-mechanical modelling indicates that, although the subduction process has ceased, deep slab motion still induces a mantle flow that produces a west-directed basal drag of the Alboran Domain lithosphere (Gea et al., 2023; Neres et al., 2019). Some of the selected focal mechanisms are located in the southern margin of the Algarve Basin, south of the Portimão Bank (AL) (Ramos et al., 2015; Neres et al., 2018b), providing a relatively homogeneous population.

The focal mechanisms in this tectonic zone are mainly strike-slip, although normal and reverse faulting events are also present. The combination of the mechanisms results in a strike-slip seismic moment tensor but with an oblate shape, characterised by k=0.417 and fclvd = 0.24. The P axis has an orientation of N161° E, and the T axis has an orientation of N066° E. The inversion provides a strike-slip stress regime (Fig. 8 GC) with σ₁ at N150° E, with less thrusting component than that obtained for AL, GH, and WCS. Therefore, it does not seem that there is significant seismicity related to thrusting with tectonic transport to the west, but rather to the southeast or northwest.

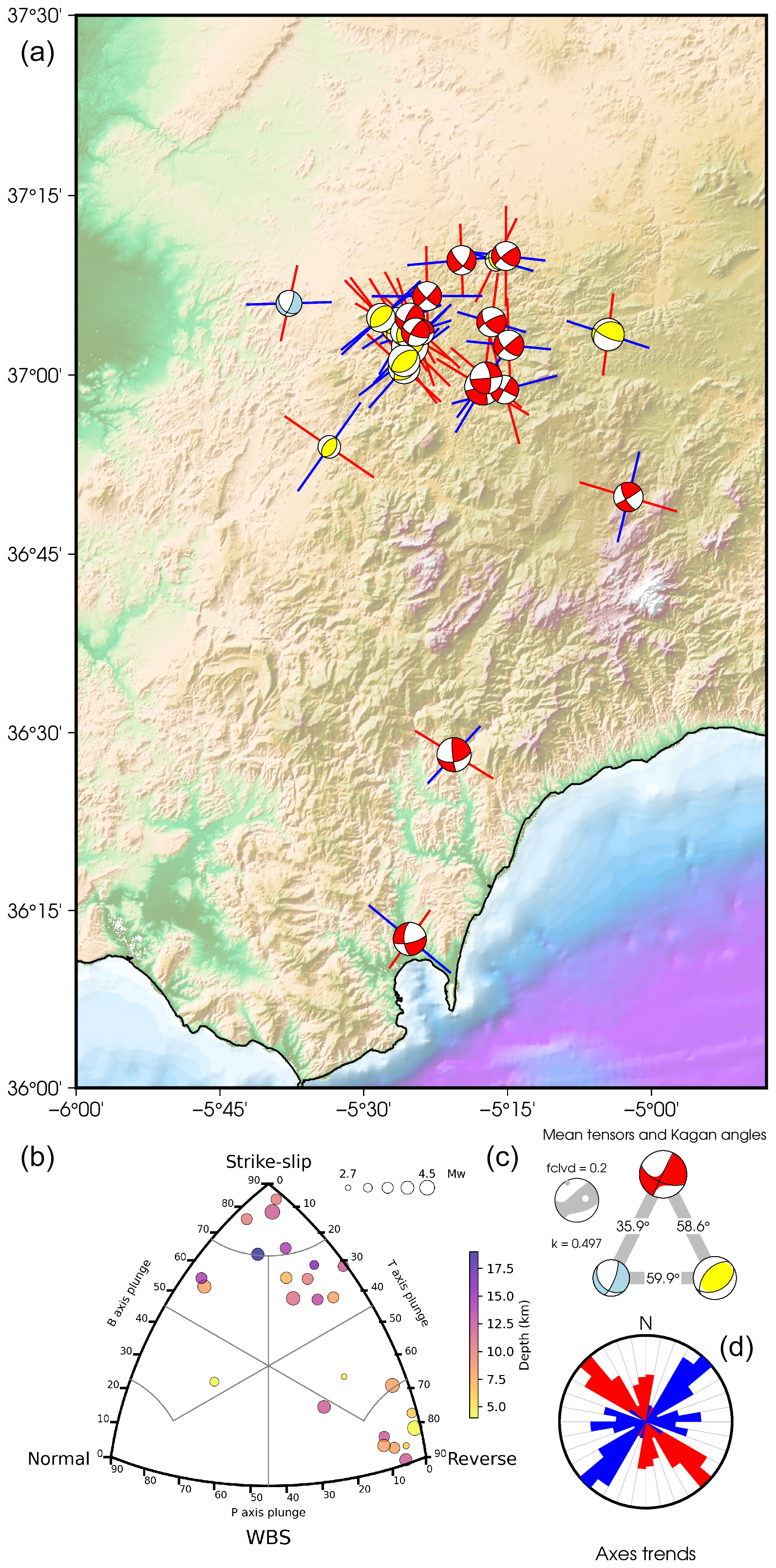

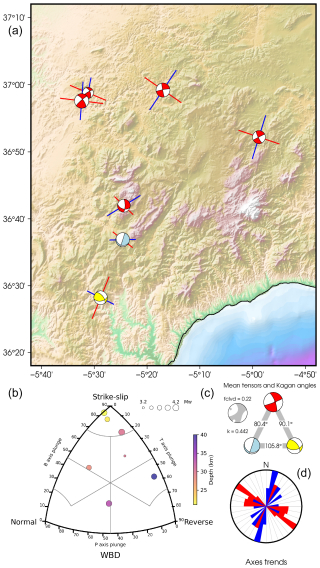

5.21 Western Betics (WB)

The emplacement of the Rif–Betic–Alboran Domain to the west during the Early to Middle Miocene, together with the NW–SE oblique convergence between Eurasia and Africa, has influenced the structuring of the Betic Orogen. However, since the Late Miocene, it is the latter process that seems to have dominated (Ruiz-Constán et al., 2011). The NW Betic Mountain front is the seismically most active sector. Although seismogenic structures do not outcrop at the surface, moderate-depth earthquakes indicate the presence of NE–SW thrusts with some related tear faults (41, Fig. 1) (Ruiz Constán, 2009).

In our analysis, we only used earthquakes at crustal depths. The population of focal mechanisms is dominated by strike-slip faulting, with several of these mechanisms exhibiting an oblique orientation and a reverse component. However, a significant number of thrust faulting events are also observed. The orientations of the axes of maximum shortening and horizontal extension are scattered, characterised by two families: a major one with a shortening direction N120-150° E and a minor one with an N–S-shortening direction. The combination of the focal mechanisms gives rise to a shortening strike-slip seismic moment tensor with an oblate shape, exhibiting a k value of 0.376 and an fclvd of 0.26. The shortening axis P has an orientation of N143° E, and the B axis has an orientation of N046° E, although with a 28° plunge.

The total population of 32 mechanisms provides a well-constrained stress inversion result (Fig. 8 WB). The inferred stress tensor indicates a strike-slip stress regime with σ₁ at N139° E, which activates NE–SW-striking thrusts and strike-slip faults. These faults exhibit right-lateral displacement when striking east-northeast to west-southwest (ENE–WSW) and left-lateral displacement when striking north-northeast to south-southwest (NNE–SSW).

Stress inversions in this area are considered in terms of the hypocentral depth, as the deepest stresses/deformations could be related to the Iberian slab under the Alboran Domain. Ruiz-Constán et al. (2011) obtained σ₁ trends for shallow seismicity at N166° E (4 mechanisms) and N018° E (4 mechanisms). For the intermediate earthquakes, we received a σ₁ trend between N113° E and N126° E, encompassing 29 mechanisms. The σ₁ trend is located more towards the ESE–WSW concerning the surrounding areas, likely influenced by ongoing motion of the deeper portion of the slab which induces a mantle flow that causes basal drag of the lithosphere (Gea et al., 2023), which is more evident at depth (Ruiz-Constán et al., 2011). To test this effect, we inverted the 7 focal mechanisms corresponding to earthquakes with hypocentral depths of more than 20 km in this zone (WBD), obtaining a σ₁ of N114° E trend, more E–W than the shallow ones (Fig. 8 WB > 20). Therefore, our results confirm that the slab effect is more pronounced at greater depths, being negligible in shallow earthquakes.

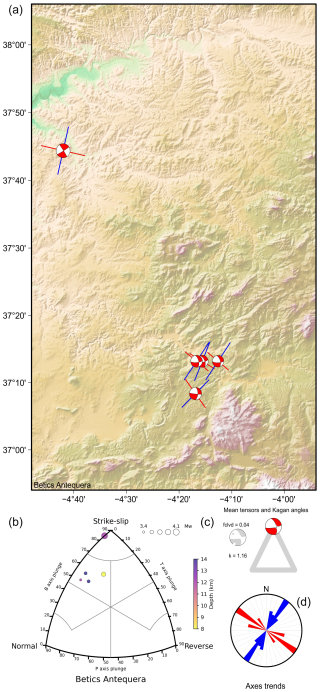

5.22 Betics Antequera (BA)

Between the Granada Basin (GB) and the thrusts at the NW edge of the Betics (WB), there is a 70 km long right-lateral transpressional brittle–ductile shear zone. The Torcal Shear Zone (42, Fig. 1) has been active from the Late Miocene (Barcos et al., 2015). In 1989, a seismic series (117 earthquakes) was reported between Loja and Palenciana, which indicated that the fault zone had a strike of N070-080° E (Posadas et al., 1993). From the focal mechanisms obtained for this crisis, a strike-slip stress regime with σ₁ at N135° E was previously determined by Vadillo Muñoz (1999).

The focal mechanisms in this tectonic zone are of strike-slip type with an extensional component, as observed in five events. The combination of these events results in a strain tensor very close to a double couple, with a value of k=1.16 and fclvd = −0.04. The orientation of the P axis is N125° E, and the orientation of the T axis is N028° E. The inversion of the five focal mechanisms (Fig. 8 BA) reveals a strike-slip stress regime with a normal component, characterised by σ₁ at N105° E, which activates ESE–WNW right-lateral strike-slip-normal (transtensional) faults. This σ₁ orientation is more likely to be that of the WB than that of the other adjacent areas and could indicate a greater effect of the rollback process of the Iberian slab, from here to the west. The extension–normal faulting in the Granada Basin (GB) may therefore be explained by the greater effect of the westward remanent movement of the Alboran Domain, which is partially decoupled from the indentation zone of the Betic arcs further to the east.

6 Stress map of Iberia

The new compilation of earthquake focal mechanisms and the results from the stress inversions can be used to update the stress map of Iberia using the quality-ranking scheme of the World Stress Map (WSM) project. The WSM is the global resource for stress information on the present-day stress field of the Earth's crust (Heidbach et al., 2016a; Heidbach et al., 2018; Zoback, 1992) and compiles the orientation of maximum horizontal stress (S_Hmax) from a wide range of stress indicators, such as earthquake focal mechanism solutions (FMS), drilling-induced tensile fractures (DIF), borehole breakouts (BO), hydraulic fracturing tests (HF), overcoring (OC), and geologic data from seismogenic fault-slip analysis (GFI, GFS) and volcanic vent alignments (GVA) (Amadei and Stephansson, 1997; Ljunggren et al., 2003; Sperner et al., 2003). The stress information is compiled in a standardised data format and quality-ranked to make data from very different methods comparable (Heidbach et al., 2010).

The various stress indicators reflect the in situ stress of different rock volumes ranging from 10³ to 10⁹ m³. Furthermore, except for the earthquake focal mechanisms and a few very deep boreholes, all stress indicators sample only the stress patterns within the upper 6 km of the Earth's crust, with deep boreholes as a major contributor. The most common visualisation of stress data is through stress maps, where data from depths between 0 and 40 km are integrated (Heidbach et al., 2004; Heidbach and Höhne, 2008), assuming that the S_Hmax orientation does not change significantly with depth. This assumption was initially tested qualitatively at the beginning of the WSM project (Zoback, 1992) and subsequently confirmed with significantly higher data density on both global (Heidbach et al., 2018) and regional scales (Pierdominici and Heidbach, 2012; Rajabi et al., 2017a).

For the new stress map of Iberia, we re-evaluate all data records from geological data (n=141), borehole breakouts (n=129), overcoring (n=16), and hydraulic fracturing (n=5) and combine these with the S_Hmax orientations derived from the new compilation of earthquake focal mechanisms (FMS) and stress inversion results (FMF) obtained in this study. Given that the majority of the WSM data records have not been revisited for almost 30 years, our re-evaluation resulted in a reduction in data records due to double entries and typos (from n=295 to n=271) and down-ranking in quality due to a stricter data assessment. Therefore, the number of stress data records with A–C quality decreased from n=172 to n=132. A–C quality means that the S_Hmax orientation is reliable within ± 25°. D-quality data records are only reliable within ± 40° and should thus be used with caution (Rajabi et al., 2024; Tingay et al., 2006, 2005). E-quality data are of poor quality, and X-quality data have insufficient or missing information to assign a quality. The latter is a new assignment class that is already used in the new WSM quality ranking for stress magnitude data records (Morawietz et al., 2020) and will also be used in the next WSM database release for stress orientation data records (Table 6).

Table 6 Overview of data quality and stress indicators in the new compilation of stress in Iberia shown in Fig. 10. Note that most of the down-ranking of data records from borehole breakouts (BO), hydraulic fracturing (HF), overcoring (OC), and geological indicator (GFI, GFS) is due to missing information in the papers and reports where data are presented. The other abbreviations are FMS for single focal mechanisms, FMF for stress inversion from population of focal mechanisms, and FMA for composite focal mechanisms.

The resulting stress map shows that, at first order, the data records from boreholes agree with earthquake focal mechanism data from greater depths. An exception is the borehole data in the Aquitaine Basin north of the Pyrenees, where some S_Hmax orientations from borehole breakouts confirm the prevailing WNW–ESE strike but others show different orientations. These data result from a comprehensive study of 55 wells by Bell et al. (1992). The authors discuss in detail the somewhat controversial result of varying S_Hmax orientations on local scales, which has not been observed in other foreland basins (Reinecker et al., 2010; Reiter et al., 2014). However, for the remaining areas, there is an overall agreement between the S_Hmax orientations inferred from borehole data and those from earthquake focal mechanism results.

To analyse the prevailing S_Hmax orientation pattern, we estimate the mean S_Hmax orientation on a 0.5° grid using the tool stress2grid from Ziegler and Heidbach (2019) with a 150 km search radius. For the estimation, a minimum of five data records is required within the search radius. Weights are applied considering data quality and distance to the grid point. The distance weight is cut off when the data record is within 15 km of the grid point to avoid an overrepresentation of data records close to the grid point. Furthermore, we distinguish the resulting mean S_Hmax orientations according to their standard deviation (SD). Dark-grey bars in Fig. 9 denote mean S_Hmax orientations with SD ≤ 25°, and light-grey ones denote mean S_Hmax orientations with SD > 25°. The resulting mean S_Hmax orientation in Fig. 9 shows that, in the centre of Iberia in particular, the stress pattern does not show a clear trend, in contrast to almost all the other regions, except the Pyrenees. This is reflected in the rotations of the mean S_Hmax orientation and the significantly higher standard deviation (SD) values in the centre of Spain. The changes in the mean S_Hmax orientation on short scales could be due either to low data density, which allows a single outlier or local deviation from the stress pattern to have a high impact on the mean trend, or to the stress pattern being indeed quite variable, for example, due to low anisotropy of the horizontal stresses, which results in less stable horizontal stress orientations (Heidbach et al., 2007; Lundstern and Zoback, 2020; Rajabi et al., 2017b).

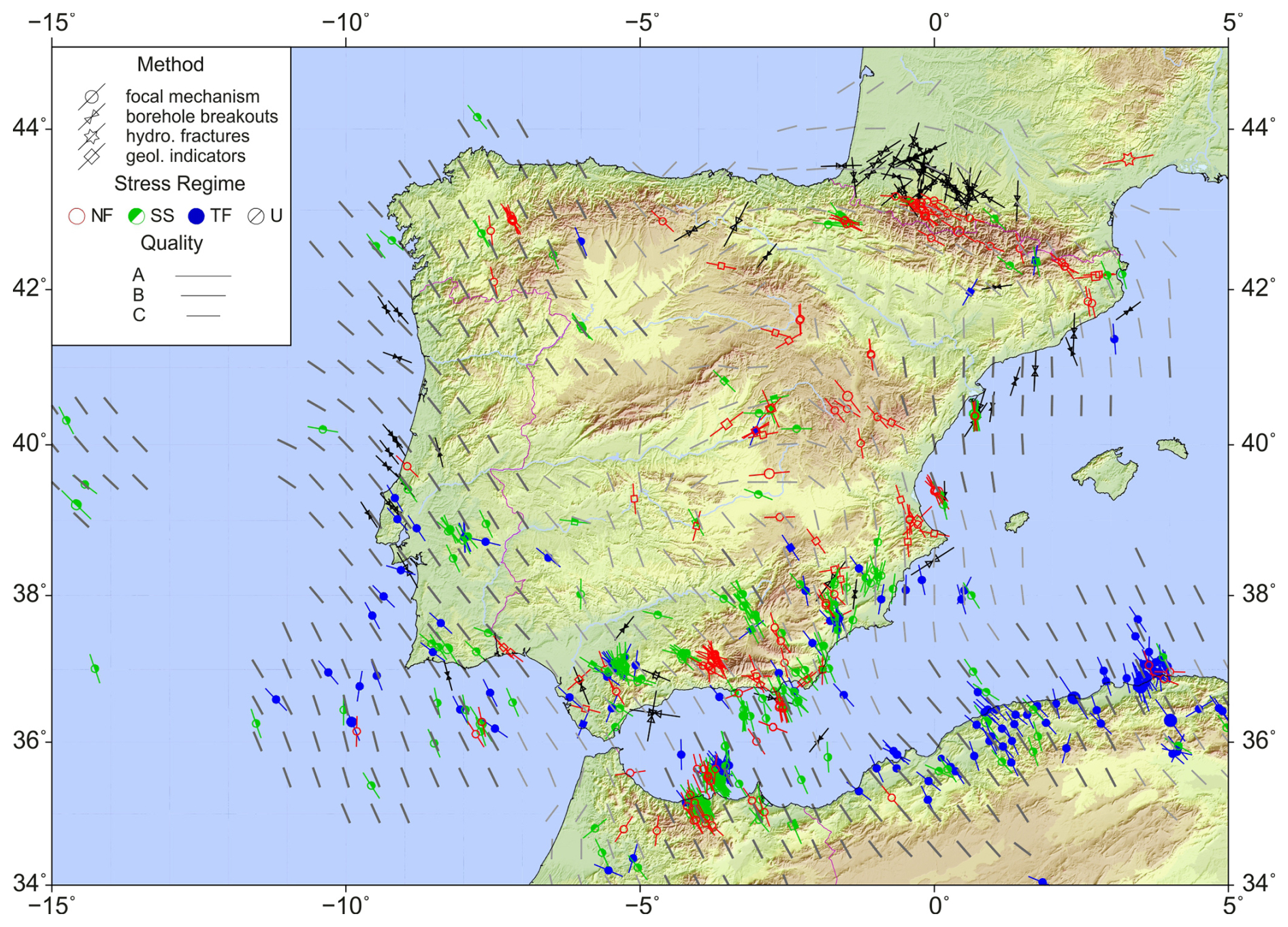

Figure 9 Stress map of Iberia based on A–C-quality data records from this study and from re-evaluated data of the WSM database release 2016 (Heidbach et al., 2016b). Plotted is the orientation of maximum horizontal stress S_Hmax for depths between 0–40 km. See the inset legend for details on data types and stress regime (NF = normal faulting, SS = strike-slip, TF = thrust faulting, U = unknown). Data symbols indicate the type of stress indicator and line length are proportional to data quality. Grey bars on a 0.5° grid show the mean S_Hmax orientation that is estimated with a search radius of 150 km using weights for data quality and distance to the grid point. Dark-grey bars on the grid show mean S_Hmax orientations with a standard deviation ≤25°, and light-grey bars show mean S_Hmax orientations with a standard deviation >25°. Topography and bathymetry are taken from SRTM15+ (Tozer et al., 2019).

7 Discussion

Our analysis focuses on the Iberian Peninsula, excluding the Gloria Fault, which lies between the Terceira Ridge in the Azores Islands and the Gorringe Bank. Along the Gloria Fault, tectonic stresses responsible for seismicity are primarily associated with strike-slip faulting, with localised thrust components at restraining bends to the east (e.g. de Vicente et al., 2008).

As illustrated in Fig. 10a, the combined focal mechanism tensors exhibit distinct characteristics depending on their tectonic setting. Thus, in the plate boundary zone, the tensors typically reflect reverse or reverse strike-slip faults with positive fclvd values. In contrast, the tensors from the Pyrenees and the central eastern Iberian Peninsula display normal or normal-directional focal mechanisms, characterised by negative fclvd values. An exception is observed in the Granada Basin, where the combined tensor indicates a nearly pure normal faulting regime.

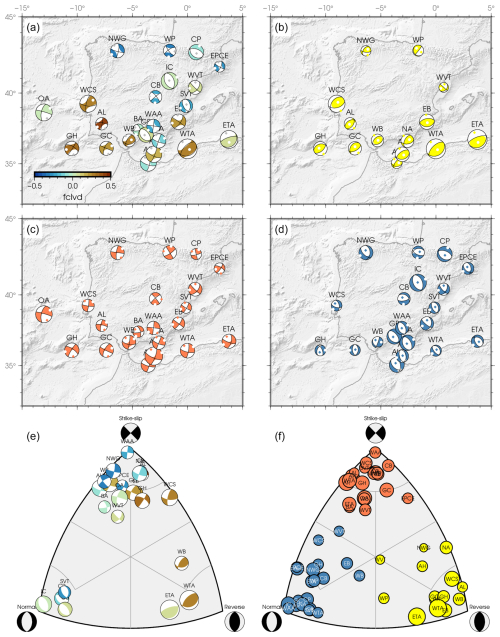

Figure 10 (a) Combined strain focal mechanisms for each of the tectonic zones. The colour of each beach ball represents the compensated linear vector dipole factor fclvd. (b) Combined focal mechanism for reverse faulting earthquakes in each zone. (c) Combined focal mechanism for strike-slip earthquakes in each zone. (d) Combined focal mechanism for normal earthquakes in each zone. (e) Focal mechanism classification diagram for the combined mechanisms shown in panel (a). (f) Focal mechanism classification diagram for the different rupture type combined mechanisms shown in panels (b), (c), and (d).

When analysing the combined moment tensor by rupture type, the reverse component (Fig. 10b) reveals a predominant NW–SE-shortening orientation across the area, with nodal planes striking approximately N040° E to N070° E. This general NE–ENE orientation is consistently observed in all combined plate boundary tensors from northern Algeria to the Gulf of Cádiz. An exception is found at the easternmost tip of the Betic Cordillera (EB), where the nodal planes exhibit a more E–W orientation, indicative of N–S shortening. These fault orientations are characteristic of the northern sector of the Aguilas Arch and the Alhama Fault system. In contrast, reverse faulting in the northern Iberian Peninsula contributes significantly less to the overall seismic moment release. In this area, the tensors are predominantly oblique, with P axes aligned with the regional shortening directions – more clearly expressed in the combined strike-slip faulting tensors. The combined strike-slip tensors (Fig. 10c) present nodal planes oriented from N000° E to N050° E for the left-lateral kinematics, which is compatible with the NW–SE-shortening orientation described above. All the strike-slip tensors share these characteristics, except the tensors from the Western Pyrenees (WP) and Central Basins (CB), which display right-lateral kinematics along NE–SW-striking planes. These two cases are also distinguished by E–W-shortening axis orientations and prolate tensor shapes (k values > 1, fclvd < 0), having the highest k values alongside the tensor from the northwest of the Iberian Peninsula (NWG). While strike-slip tensors are dominant throughout the peninsula (Fig. 10e), they are particularly prevalent within the Alboran domains.

The combined normal faulting tensors can be grouped into two distinct categories. The first includes tensors with extension axes oriented E–W to NE–SW, while the second comprises those with N–S-oriented extension axes. The latter are observed in the Central and Western Pyrenees (CP, WP) and in the Central Basins (CB). Across the rest of the Iberian Peninsula, normal faulting tensors present nodal planes that are approximately parallel to the axes of maximum horizontal shortening. The normal tensors are particularly prominent along a band that connects the Al Hoceima (ALH) area in northern Africa to the Central Pyrenees (CP), passing through the Iberian chain (IC) (Figs. 10d and 11b). Also, in the northwest of the Iberian Peninsula (NWG), normal faulting mechanisms play a dominant role in the combined tensor (Fig. 12b).

Figure 11 (a) Strain principal directions derived from the combined moment tensors. Black shows the orientation of the shortening (P) axis, white shown the stretching axis (T), and grey shows the intermediate axis. The orientations are simplified, showing only the trend in the principal axes and omitting the plunge. Note that the intermediate axis (in grey) can be a shortening or a stretching axis; when it is the vertical axis, it is represented by a circle with a cross or with a dot, respectively. (b) Pie diagram showing the proportion of seismic moment released by strike-slip (red), reverse (yellow), and normal (blue) events on each zone. (c) Representation of the minimum rotation angle (Kagan angle) between combined focal mechanisms for the different rupture types in each zone. A 90° angle represents a pure axis permutation. (d) Flinn diagram adapted to the combined seismic strain tensor. Each circle represents the position on the diagram of each zone considered in the study. The colour is proportional to the k value as is shown in the colour scale. The grey tensors represent the seismic strain tensors for prolate, double-couple (plane strain), and oblate ellipsoids. The diagonal line represents the plane strain shapes, pure double couple in seismic tensor terminology. Note that the scales used for colour and graph axes are logarithmic.

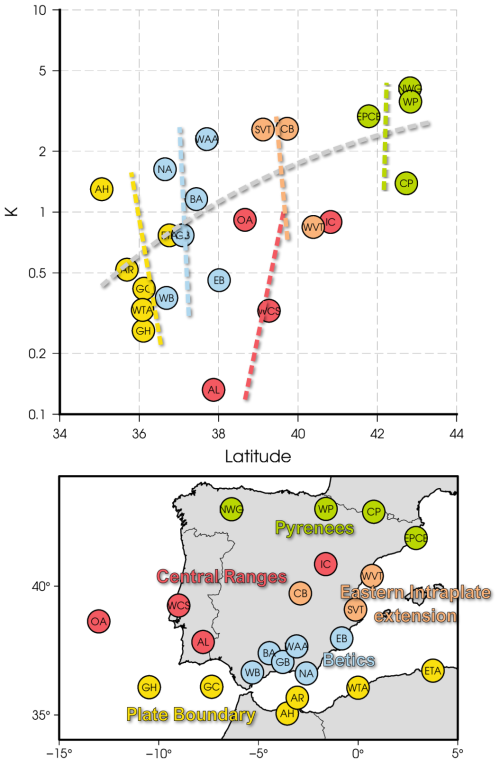

Figure 12 Relationship between the k value of the strain tensor and the latitude of the zone. The colours are related to the tectonic setting as shown on the map. The coloured dashed lines show the trend in each population, while the grey dashed line shows the general trend in k-value increment with latitude.

When the combined tensors are projected onto the classification diagram (Fig. 10e), most are located within the fields corresponding to pure rupture types, with a predominance of strike-slip mechanisms – often accompanied by compressional or extensional components. When the tensors are further categorised by rupture type for each zone (Fig. 10f), pure mechanisms remain dominant. This suggests that the coexistence of different rupture styles arises from permutations of principal stress axes that are mechanically compatible, thereby reflecting a regime of distributed deformation. The orientations of the principal axes for each zone are shown in Fig. 11a. NW–SE shortening is predominant in northern Africa, the Alboran Sea, and the western half of the Iberian Peninsula. In contrast, in the eastern part, the shortening trends tend to be N–S, except in the areas where extensional regimes dominate (Fig. 11b), i.e. in the Pyrenees and the Central Basins, where extension is oriented N–S, implying maximum horizontal shortening in the E–W direction.

For each zone where focal mechanisms have determined across different faulting types, we computed the minimum rotation angle between pairs of tensors (Fig. 11c). Most of the rotation angles fall between 60 and 110°, suggesting the activation of a fault system governed by a common strain field, where the permutation of principal stress axes, particularly 90° rotations, reflects a coherent tectonic framework. A typical example is the permutation between the shortening axis of reverse faults and the intermediate axis of normal faults. The results for the WVT zone warrant special mention. It includes focal mechanisms related to the Castor Project seismic crisis, a natural gas submarine storage project (Villaseñor et al., 2020; Cesca et al., 2021). In this case, the rotation angle between the tensors of the different rupture types is minimal, indicating a consistent rupture type across all events. These are characterised by oblique focal mechanisms located near the centre of the classification diagram (Fig. 10f).

In Fig. 11d, the combined tensors are plotted on a Flinn-type diagram for moment tensors, with the colour showing the k value. Zones characterised by prolate ellipsoids (k>1), located above the plane strain diagonal, correspond to areas with a significant normal faulting component, namely Pyrenean zones (EPCE, WP, NWG), the Valencia Trough (SVT), and the Central Basins (CB). These results evidence the relationship of these prolate ellipsoids with extensional and transtensional tectonic settings. Conversely, regions exhibiting oblate ellipsoids are linked to transpressional tectonic settings, particularly along the southwestern margin of the Iberian Peninsula (AL, GH, WB, GC, WCS). This relationship between strain tensor shape and proximity to the plate boundary becomes more evident when plotting the k value as a function of latitude (Fig. 12). Near the plate boundary, the shapes of the strain tensors are predominantly oblate, with k<1, whereas, farther north, beyond the Betics, k values increase, indicating a prevalence of prolate strain tensors.

The results of the slip model analysis regarding active deformation types are presented in Fig. 3. Variations in data density lead to poorly constrained interpolations in areas with sparse coverage. Nevertheless, the inferred E_Hmax (Dey, maximum horizontal shortening/minimum horizontal extension) for each analysed zone (Fig. 13a) provided a coherent image of the progressive rotations of E_Hmax in Iberia. Composed right dihedra plots yield qualitatively similar patterns (Fig. 13b).

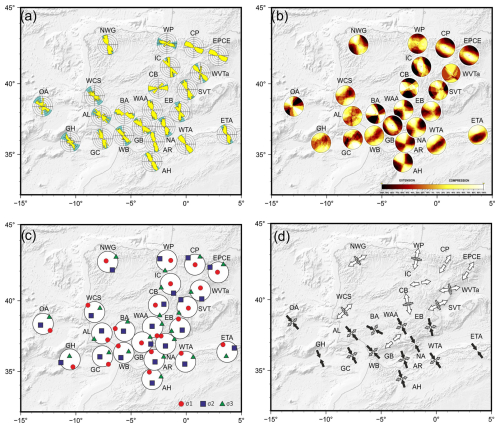

Figure 13 (a) Deduced E_Hmax (Dey, maximum horizontal shortening/minimum horizontal extension) in every considered zone from the slip model. (b) Combined right dihedra plots. (c) Stress inversions from focal mechanism populations in all the zones. (d) Scaled sizes of the stress horizontal axes: σ₁ (black), σ₂ (grey), and σ₃ (white).

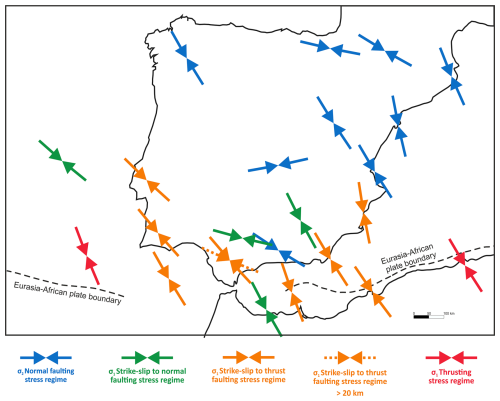

The stress inversion solutions (Figs. 13c, d, and 14) indicate that the most clearly defined thrust faulting stress regimes occur at the margins of the study area, specifically in the Gorringe and Eastern Atlas, characterised by a vertical σ₃ and a stress ratio (R) around 0.4. In between, much of southern Iberia is dominated by strike-slip faulting stress regimes with a thrusting component (transpression), marked by vertical σ₂ and $\mathrm{0.5}<R>\mathrm{0}$. This pattern also extends into WCS and AL. An exception is the Granada Basin, where the stress regime is nearly radial, dominated by normal faulting. This extensional regime influences nearby areas to the east and west, namely Western Alcaraz (WAA) and Antequera (BA), where transtensional stress fields prevail (vertical σ₂ and $\mathrm{0.5}<R<\mathrm{1}$) (Fig. 14). Similar transtensional regimes are also observed in Al Hoceima (AL) and the Offshore Atlantic (OA). The remaining inversions in the northern and northeastern sectors yield normal faulting stress regimes, with vertical σ₁ and R close to 0.5. Along the plate boundary (yellow in Fig. 14), the σ₁ orientation remains remarkably consistent, trending close to N154° E. In the Betic Cordillera (blue in Fig. 14), some variability is observed, although the mean σ₁ orientation remains near N155° E, except in the Granada Basin, Antequera (BA), and the deeper seismicity of the Western Betics, where σ₁ trends shift toward N114° E, likely reflecting the residual influence of the Alboran Slab.

Figure 14 R (stress tensor ratio) vs. S_Hmax trend (σ₁ for thrust and strike-slip fault stress regimes, σ₂ for normal faulting stress regimes). The N–S direction is marked by 0 and 180°, while the E–W direction coincides with the value of 90. The areas considered are grouped into those at the plate boundary (yellow: AR, GH, ETA, GC, WTA, and ALH), those in the Pyrenees (green: EPCE, NWG, CP, and WP), those in the Central Ranges (red: OA, WCS, AL, and IC), those in the Betics (blue: separated BA, GB, and WBD from the strike-strike solutions BA, GB, and WBD), and those related to the intraplate extension in eastern Iberia (Mediterranean) (orange: WVT, SVT, and IC. The latter is also included in the Central Ranges solution). CB (in pink) does not seem to be related to any of the previous groupings. The dashed rectangles mark each group's maximum and minimum values of R and S_Hmax, with their corresponding colour. The lower arrows indicate the average values of S_Hmax for each group.

In the Central Ranges and Offshore Atlantic (red in Fig. 14), σ₁ rotates slightly anticlockwise to approximately N140° E, aligning with the Euler pole of Africa–Eurasia plate motion. In the Pyrenees, the eastern and western flanks of the range exhibit σ₁ orientations similar to those of the broader Iberian domain (around N154° E). However, in the Central Pyrenees (CO and WPCP), σ₃ is oriented perpendicular to the mountain belt, suggesting that local stress sources, such as post-orogenic collapse or isostatic rebound, dominate over the regional stress field. The Central Basins deviate from this overall pattern. The stress solution in the Eastern Pyrenees closely resembles those of the Valencia Trough and the Iberian Chain (EPCE, WVT, SVT, and IC), defining a coherent cluster of extensional stress regime in eastern Iberia (Fig. 14). Notably, in these solutions, σ₂ is oriented NW–SE rather than NE–SW, suggesting that the present-day normal faulting stress regime is likely to be more affected by the Africa–Eurasia convergence than by the back-arc extension of the easternmost subduction zones.

The presence of thrusting focal mechanisms along the leading edge of the Alboran Domain supports the hypothesis that its westward emplacement facilitated the mechanical decoupling of Iberia from Africa. Similarly, the SPCS has progressively lost its thrust faulting stress regime from east to west, with thrusts activity north of Madrid ceasing since the Late Miocene. However, in its Portuguese sector, SPCS remains an active intraplate orogen. Consequently, across central Iberia, from east to west, the stress regime transitions from a well-defined normal faulting stress regime in the IC, where σ₁ is vertical and R=0.43, through continued normal faulting in the Central Basins, to a thrust faulting stress regime in the WCS, and finally to a strike-slip faulting stress regime in the offshore (OA). This progression is accompanied by a gradual clockwise rotation of σ₂ or σ₁ from N148° E to N131° E (with the exception of CB), consistent with the expected stress orientation imposed by the Euler pole of Africa–Eurasia plate motion. Accordingly, the offshore continuation of the SPCS is expected to be governed by a transtensional tectonic regime.

Figure 15 summarises the results of the stress inversion. In regions where normal faulting stress regimes are inferred (blue arrows in Fig. 15), Cenozoic thrusts are no longer active, such as in northern, central, and northeastern Iberia. However, normal faulting stress regimes are active in areas that previously experienced compressional deformation, such as in the IC. Transtensional areas (green arrows in Fig. 15) are also likely responsible for the deactivation of thrusts in the Estremadura Spur (OC) and in areas adjacent to the Granada Basin (WAA and BA), where active normal faulting is observed. Mapped thrusts are predominant in the Gorringe Bank and eastern Algeria (red arrows in Fig. 15). In the remaining areas, including the easternmost and westernmost Betics and southwestern Iberia, transpressional regimes dominate. Therefore, both mapped thrusts and strike-slip faults in these areas should be considered tectonically active structures.

Figure 15 Summarised state of stress of Iberia based on focal mechanism stress inversion from this study.

8 Conclusions

Based on the combination of methods used to establish the characteristics of the type of active deformation and the associated stresses, it should be noted that they are all complementary, providing compatible results that highlight different tectonic features. Thus, the direct application of the slip model yields results that are easy to obtain and useful when establishing a tectonic zoning framework for applying the set of methodologies. The right dihedra method provides handy visual information for understanding the results of the composite analysis of focal mechanisms and stress inversion. These last two methods are the most comprehensive, with numerical results that can be used to compare the tectonic characteristics of the different analysed areas. In any case, the use of diverse methods provides a more comprehensive overview of the characteristics of active tectonics in Iberia.

From the slip model results and the available information on the neotectonic structural deformation, we have subdivided Iberia. In the Pyrenees, we identified three zones: the Central Pyrenees (CP), with normal faulting focal mechanisms, and two more zones at the eastern and western ends, the Western Pyrenees (WP) and the Eastern Pyrenees–Northern Catalan Coastal Range (EPCE). On the northern edge, we grouped the earthquakes in Northwestern Galicia (NWG). In the east of the peninsula, offshore near the coast, we differentiated two tectonic zones: the Northern Valencia Trough (NVT) and the Southern Valencia Trough (SVT). In central Iberia, we separated the focal mechanisms in the Iberian Chain (IC) and south of the eastern SPCS (Central Basins, CB) and those in the tectonic zone near Lisbon, which we refer to as the Western Central System (WCS). Further south but not yet at the active plate boundary, we defined the Algarve (AL) as a tectonic zone in SW Iberia. In the offshore Atlantic to the west, we grouped them in the tectonic zone Offshore Atlantic (OA). Further south, primarily offshore and along the plate boundary, we examined the Gorringe–Horseshoe (GH) and Gulf of Cádiz (GC) tectonic zones. Considering the predominance of normal faulting in the Granada Basin (GB), we differentiated the Western Betics (WB) to its west, the Betics Antequera (BA) to its north, and the Eastern Betics (EB) to its east. In the Alboran Sea, we considered the North Alboran (NA), which also has onshore focal mechanisms, and the Alboran Ridge (AR), located at the probable plate boundary. Further south, on the African Plate, in the Rif, we considered the tectonic zones of Al Hoceima (ALH) and Rif (RF). Finally, in the Algerian Atlas, we analysed two populations: one located further east, the Eastern Tell Atlas (ETA), and the other located further west, the Western Tell Atlas (WTA).

In CP, the combined moment tensor is close to a double couple with an almost pure permutation between the B and P axes. Meanwhile, the stress inversion indicates a nearly uniaxial normal faulting stress regime, with a σ₃ direction of N005° E–N030° E, sub-perpendicular to the topographic axis of the range. In WP, the combined moment tensor mainly has sheared characteristics, with a prolate tensor with the extensional axis in N011° E and permutation between the B and P axes. The stress inversion also results in a normal faulting stress regime, similar to that in CP. However, the stress tensor shows characteristics closer to strike-slip, with σ₂ at N103° E. EPCE has a combined moment tensor that departs from a pure double couple with permutation between the P and B axes and a prolate ellipsoid with the maximum shortening almost horizontal at N163° E. The stress inversion indicates a more normal faulting stress regime (σ₂ at N165° E) concerning CP and very similar to those found to the south in IC, WVT, and SVT, so it seems to be less related to the local processes affecting the Pyrenees. The NWG combined moment tensor shows a prolate form, dominated by ENE–WSE extension, with the P (or B) axis showing an orientation of N147° E. The stress inversion provides a normal faulting stress regime, with a σ₂ strike between N147° E and N150° E. The most normal faulting mechanisms are concentrated in the area where small sedimentary basins developed during the Miocene. In contrast, the offshore region is dominated by strike-slip faulting. The Castor CO₂ storage project generated a sequence of apparently triggered seismicity in the NVT. The combined moment tensor shows an N082° E-trending T axis and an immersion of 19°, whereas the P axis is oriented N002° E, with an immersion of 28°. The stress inversion is a very consistent solution, revealing a normal faulting stress regime compatible with strike-slip and σ₂ oriented N170° E. The eight focal mechanisms in the IC indicate normal faulting, with some events exhibiting strike-slip components, which, when combined, give rise to a pure double-couple tensor characterised by a horizontal T axis oriented N064° E and a B axis oriented N154° E. The stress inversion yields a triaxial normal faulting stress regime solution, with σ₃ oriented N058° E, closely resembling the stress field observed in the WVT. In CB, the combined moment tensor displays a prolate-type shape dominated by a strain axis oriented N005° E and a maximum shortening axis oriented approximately E–W. The stress inversion indicates a normal faulting stress regime solution with a minor strike-slip component, characterised by σ₃ oriented N173° E, nearly orthogonal to that inferred for the CI and distinct from most other analysed areas. In WCS, the focal mechanisms are predominantly reverse or strike-slip faulting events, with some normal faulting events whose T and B axes are kinematically compatible. The combined mechanisms have a T and B permutation. The axis of maximum shortening trends N146° E, while the axis of maximum extension is oriented N056° E. The stress inversion yields a well-constrained thrust faulting stress regime solution with a minor strike-slip component, with σ₁ oriented N134° E. This stress regime activates NE–SW-striking thrust faults and left-lateral NNE-striking and right-lateral ESE-striking strike-slip faults. In OA, with dispersed focal mechanisms, strike-slip displacements with a minor normal component predominate. The combined moment tensor exhibits an oblate shape, with a P-axis orientation of N152° E. The extension T axis is in the N057° E direction. The stress inversion indicates a strike-slip stress regime with a normal component, characterised by σ₁ trending N131° E and σ₃ at N044° E. At the active plate boundary, the GH zone has 13 reverse and strike-slip focal mechanisms, several of which are below the Moho, that indicate a thrust faulting stress regime with σ₁ at N159° E. The combined moment tensor presents an oblate shape, dominated by shortening. The orientations of the P and T axes are N155° E and N065° E, respectively. In the eastern SVT, the combined tensor reveals a permutation between the B and P axes, with extension predominantly oriented N069° E. The corresponding stress tensor yields a normal faulting stress regime with σ₃ at N058° E, which is very similar to those of IC, WVT, and EPCE. The AL zone has a combined strain tensor with an orientation of the maximum shortening axis at N143° E but is far from a double couple, with an oblate tensor shape. The inversion indicates a thrust faulting stress with σ₁ at N140° E, which activates NE–SW-striking thrust faults and left-lateral N–S- and NW–SE-striking right-lateral strike-slip faults. The solution is very similar to that obtained for the WCS, showing that this type of stress predominates throughout the SW corner of Iberia, to the west of the Betic front. Results from the Betics have a higher variability. The EB zone has a combined mechanism that gives rise to an oblate-shaped strain tensor, dominated by shortening. The P axis has an N172° E orientation, although the P axes of all mechanisms have a large scatter. The stress inversion provides a thrust to strike-slip faulting stress regime with σ₁ at N171° E, which can activate NE–SW- to ENE–WSW-striking thrust faults, along with right-lateral NW–SE- and left-lateral NNE–SSW-striking strike-slip faults. The WAA zone has a combined strain tensor with a prolate shape, with the orientation of the T axis at N052° E, while the P axis has an orientation of N142° E. The stress tensor obtained by inversion indicates a strike-slip stress regime with a normal component, characterised by σ₁ at N153° E. This stress regime activates left-lateral N–S and right-lateral ESE–WNW strike-slip faults, as well as NW–SE normal faults. The GB zone has normal focal mechanisms and clusters into two families, whose T-axis orientations form an angle of 30–40° with each other. The combined moment tensor is of oblate type, with a T-axis orientation of N048° E and a B-axis orientation of N139° E. Our stress inversion provides a highly consistent triaxial normal faulting stress regime with σ₃ striking at N033° E. Therefore, this stress orientation is congruent with that obtained from the E (WAA and EB). In the NA zone, the combined moment tensor is a slightly prolate strike-slip deformation tensor, with an extensional stress axis at N065° E, while the shortening axis has an N154° E trend. The stress inversion result is similar to those of WAA and EB, with a strike-slip stress regime with a normal component, characterised by σ₁ in N149° E and σ₃ in N064° E. The AR zone is characterised by a combined moment tensor that has an oblate shape, with shortening at N157° E. The mean T strain axis is N069° E. The inversion indicates a transpressive strike-slip faulting stress regime, with σ₁ at N161° E, which activates mainly N–S to NNE–SSW left-lateral faults, NW–SW right-lateral strike-slip faults, and E–W to ENE–WSW thrust faults. The stress solution lies between that of the EB and WAA. The ALH zone exhibits focal mechanisms with highly consistent axes of maximum shortening and horizontal extension, showing minimal variability. The combined moment tensor indicates a strike-slip deformation with an extension component close to a double couple, with the P axis at N143° E and the T axis at N060° E. The WTA zone has an oblate reverse combined moment tensor with a P-axis orientation of N143° E and a B-axis orientation of N050° E. In contrast, the ETA zone is also of a shortening type and oblate, although it is closer to the double couple, with the P axis oriented N155° E and the B axis oriented N069° E. The stress inversions show a very similar σ₁ orientation for both zones, N149° E (west) and N145° E (east), with a thrust faulting stress regime to the east and with a larger strike-slip component in the west. Both solutions activate NE–SW-striking thrust faults and NW–SE right-lateral and N–S left-lateral strike-slip faults. In GC, there is a strike-slip seismic moment tensor but with an oblate shape, with a P-axis orientation of N161° E and a T-axis orientation of N066° E. The inversion provides a strike-slip stress regime with σ₁ at N150° E, with less thrusting component than that obtained for AL, GH, and WCS. We have separated the WB zone focal mechanisms according to their hypocentral depth (20 km). For the intermediate earthquakes, we have received a σ₁ trend between N113° E and N126° E. In contrast, earthquakes with hypocentral depths of more than 20 km provide a σ₁ of N114° E trend, more E–W than the shallow ones, confirming that the Alboran slab effect is more pronounced at greater depths. The combination of the focal mechanisms gives rise to a shortening strike-slip seismic moment tensor with an oblate shape, with a P axis oriented at N143° E and a B axis oriented at N046° E, although with a 28° plunge. Finally, the BA zone results in a combined strain tensor very close to a double couple, with a P axis of N125° E and a T axis of N028° E. The inversion of the five focal mechanisms reveals a strike-slip stress regime with a normal component, characterised by σ₁ at N105° E, which activates right-lateral strike-slip-normal (transtensional) faults.

The overall interpretation of the results indicates that, in general, the shape of the combined seismic moment tensors at the plate boundary is oblate (k<1), indicative of a predominance of transpressive deformation. As we move away from the plate boundary, the tensors become prolate in shape (k>1), consistent with extensional context of the Pyrenees, the Valencia Trough, and the Central Basins. An exception to this rule is the combined tensor of the Granada Basin, which yielded a pure normal faulting tensor close to the plate boundary. Similar tendencies are observed from the rescaled shape factor of the slip model (k^′). Northern Algeria and southwestern Portugal represent the areas of maximum compression, closely associated with the plate boundary, whereas the Pyrenees and the Iberian Chain are characterised by extension. Individual calculations obtained from the slip model allow us to distinguish local variations. The proposed methodology optimises the selection of focal mechanism populations for both kinematic and dynamic analyses. Although most of the defined tectonic zones exhibit focal mechanisms of different faulting types, the minimum rotation angle between their combined mechanisms indicates that they are compatible with each other, considering the axis permutation, in a context of distributed deformation. The orientations of the shortening and extension axes derived from the combined deformation tensors are generally consistent with the principal stress axes obtained from stress inversion, although notable discrepancies exist in certain regions

Stress inversion results indicate that, outside of the Iberian Peninsula, thrust faulting stress regimes dominate in the Gorringe and Eastern Atlas zones, characterised by a vertical σ₃ and R around 0.4. In southern Iberia, a transpressional regime predominates, defined by strike-slip faulting stress regimes with a thrusting component, where vertical σ₂ and $\mathrm{0.5}>R>\mathrm{0}$. This stress configuration also extends into the southwestern corner of the Iberian Peninsula, particularly in the Western Spanish–Portuguese Central System and the Algarve. Transtensional strike-slip faulting stress regimes with a normal faulting component, vertical σ₂, and $\mathrm{1}>R>\mathrm{0.5}$ surround the normal faulting stress regime inferred for the Granada Basin (Western Alcaraz and Antequera) and are also present in northern Morocco (Al Hoceima) and Offshore Atlantic. Towards the Betics foreland and to the east of the westernmost sector of the Spanish–Portuguese Central System, including the Pyrenees, a normal faulting stress regime predominates. Within these zones, a slight strike-slip component is observed west of the Central Pyrenees, in the Western Pyrenees, and in Northwestern Galicia. Regardless, R values in these zones are close to 0.5, except in the Granada Basin, where an almost radial normal faulting stress regime is found. The S_Hmax mean values range from N105° E to N155° E (except for the Central Basins solution). The S_Hmax orientation derived from this study, based on both individual focal mechanisms and stress inversion, is broadly consistent with data records from other stress indicators, particularly from the numerous borehole logging data previously published as part of the World Stress Map (Heidbach et al., 2018). The central part of Iberia is an exception, likely due to sparse data coverage resulting in large rotations of S_Hmax from the regional trend or due to horizontal stress magnitudes being close to each other, allowing local stress variability due to stiffness and density contrasts. Regionally anomalous ESE–WNW S_Hmax orientations are found in the Granada Basin and the Pyrenees, where local stress fields dominate. Elsewhere, the Central Ranges (IC, WCS, OA, and AL) exhibit a consistent S_Hmax trend around N140° E. Although the Betic Cordillera (excluding the Granada Basin) shows some variability, it generally follows a mean S_Hmax of N155° E, similar to the trends observed in the NW and NE corners of Iberia (EPCS and NWG). Solutions along the plate boundary also align with this S_Hmax trend of N155° E, which likely reflects the convergence direction of the Africa and Iberia plates. The 15° anticlockwise rotation to the north is interpreted as a consequence of the Euler pole location between the two plates. This general tectonic context seems to be overprinting the back-arc subduction-related extension in the east of Iberia and the Alboran Sea.

Appendix A

Figure A1 Al Hoceima tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A2 Algarve tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A3 Alboran Ridge tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A4 Betics Antequera tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A5 Central Basins tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A6 Central Pyrenees tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A7 Eastern Betics tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A8 Eastern Pyrenees tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A9 Eastern Tell Atlas tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A10 Granada Basin tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A11 Gulf of Cádiz tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A12 Gorringe–Horseshoe tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A13 Iberian Chain tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A14 Northern Alboran tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A15 NW Galicia tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A16 Offshore Atlantic tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A17 Southern Valencia tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A18 Western Alcaraz Arch tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A19 Western Betics tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A20 Western Betics >20 km tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A21 Western Spanish–Portuguese Central System tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A22 Western Pyrenees tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A23 Western Tell Atlas tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Figure A24 Western Valencia tectonic zone. (a) Focal mechanisms with maximum horizontal axis (P or B for normal ruptures) and minimum horizontal axis (T or B for reverse ruptures) orientation. (b) Classification diagram for earthquake rupture types. (c) Average tensors (complete in grey) and Kagan angles between the average tensors for each rupture type. (d) Rose diagram of maximum and minimum horizontal axis orientation.

Appendix B

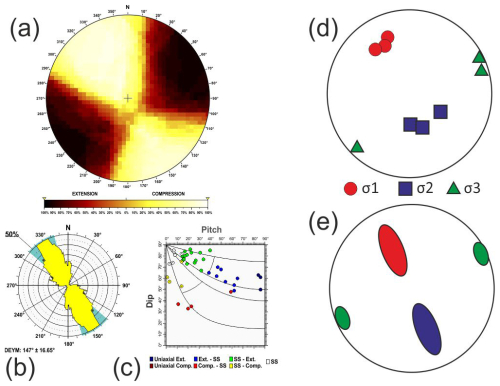

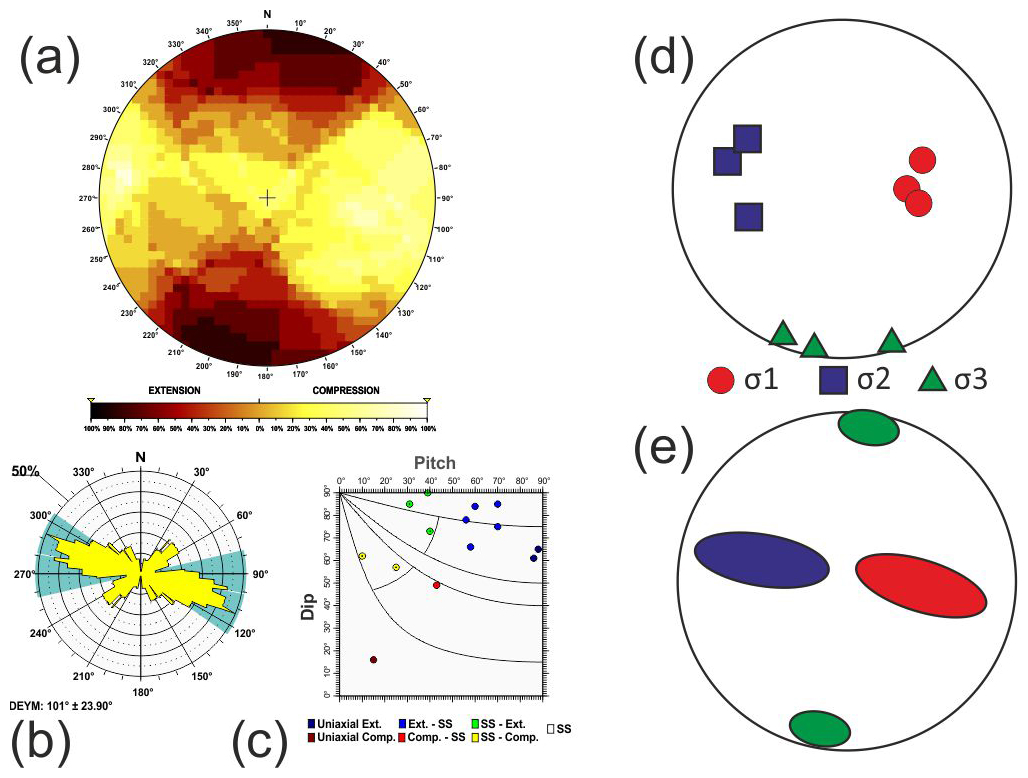

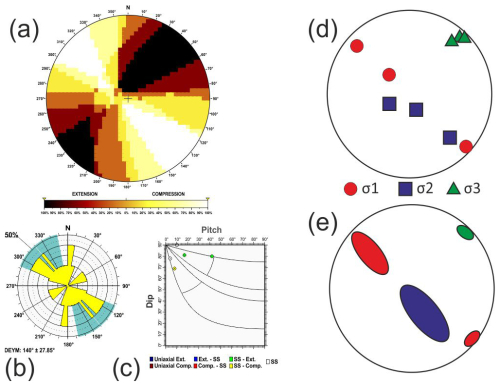

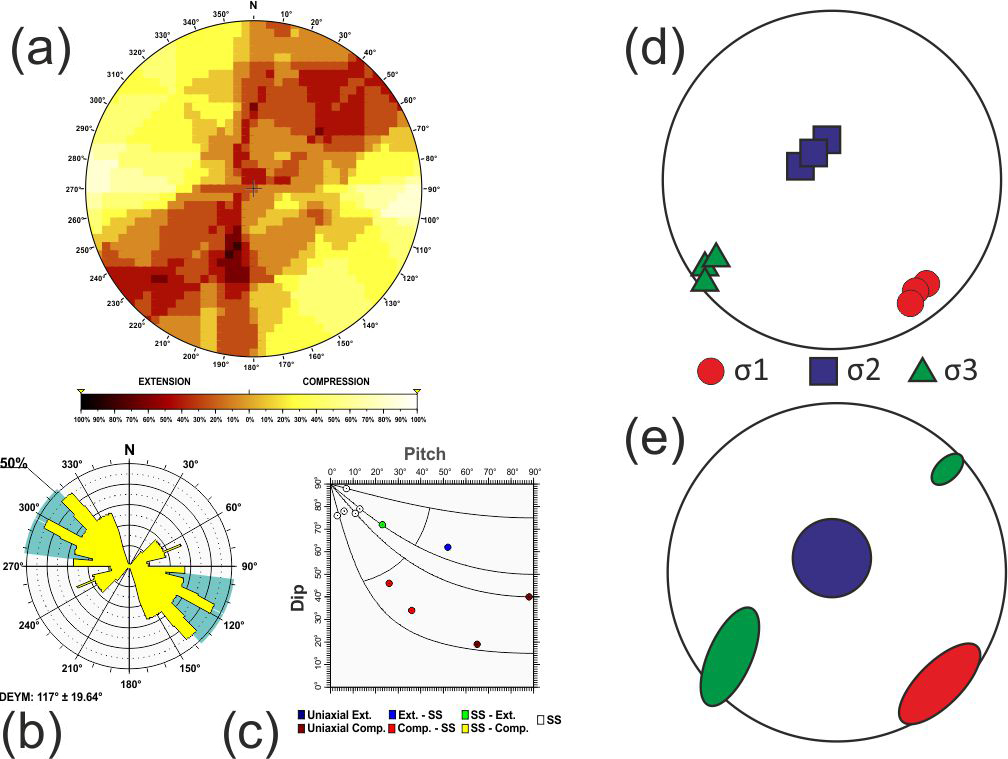

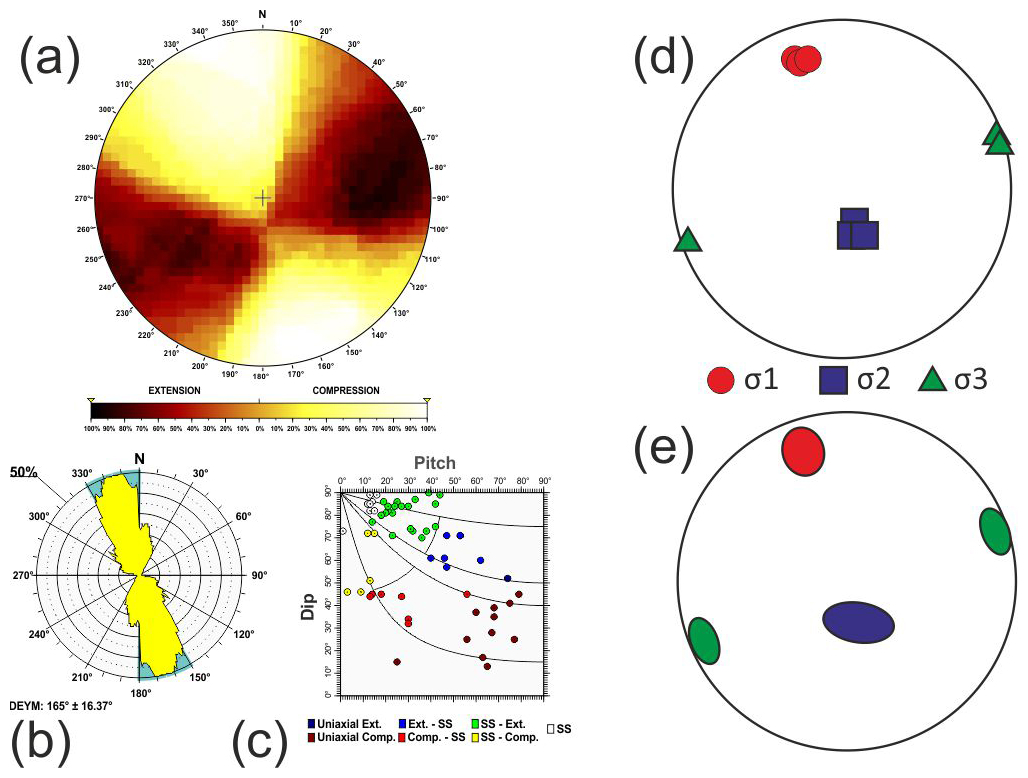

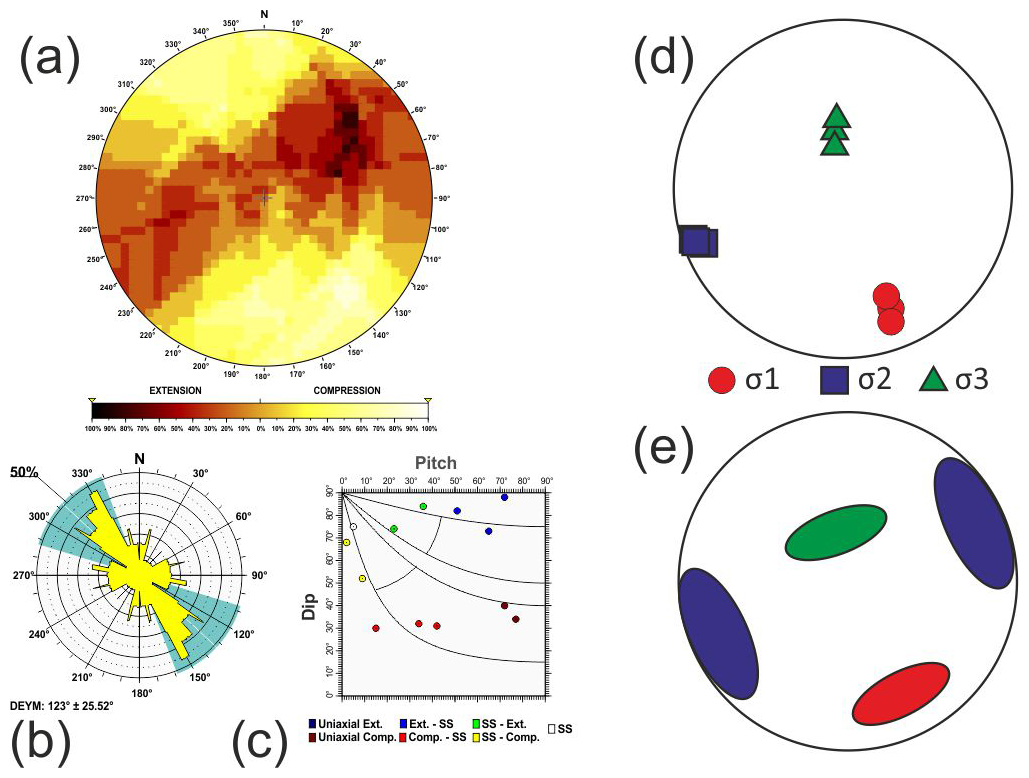

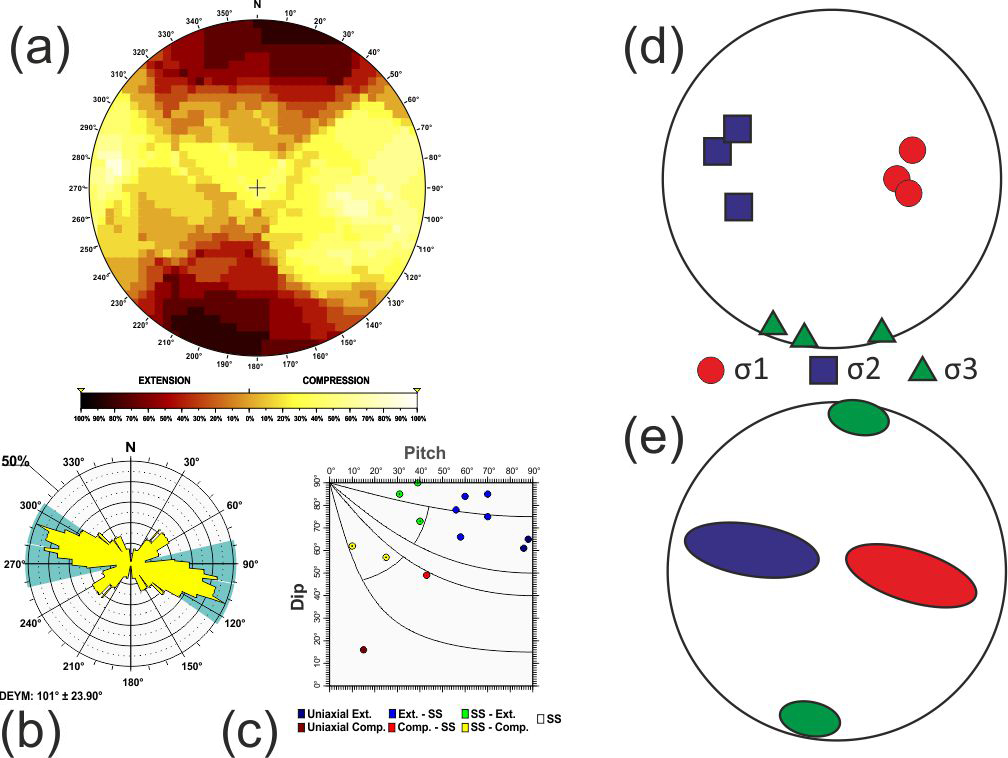

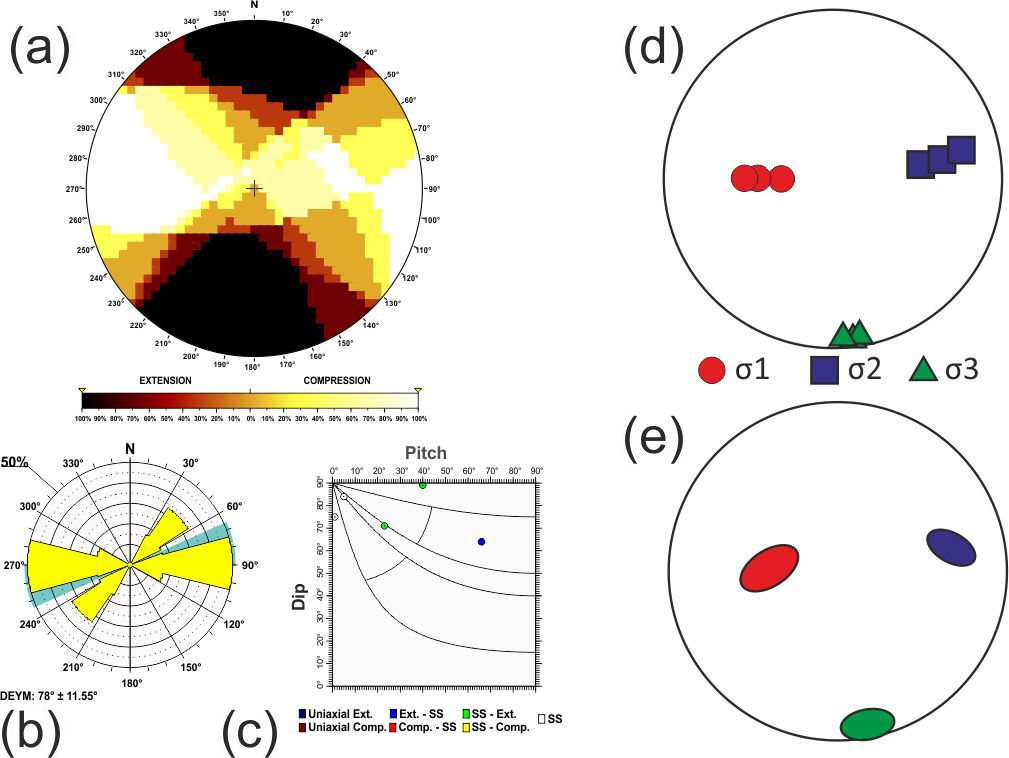

Figure B1 Al Hoceima tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B2 Algarve tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B3 Alboran Ridge tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B4 Betics Antequera tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B5 Central Basins tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B6 Central Pyrenees tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B7 Eastern Betics tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B8 Eastern Pyrenees tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B9 Eastern Tell Atlas tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B10 Granada Basin tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B11 Gulf of Cádiz tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B12 Gorringe–Horseshoe tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B13 Iberian Chain tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

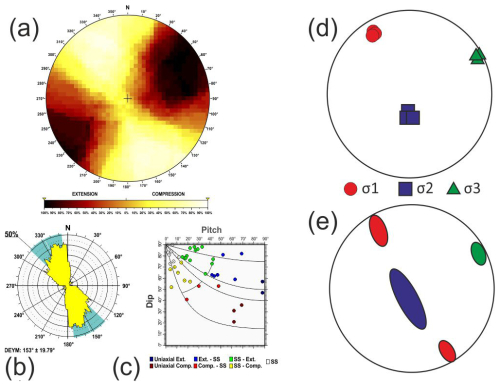

Figure B14 Northern Alboran tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

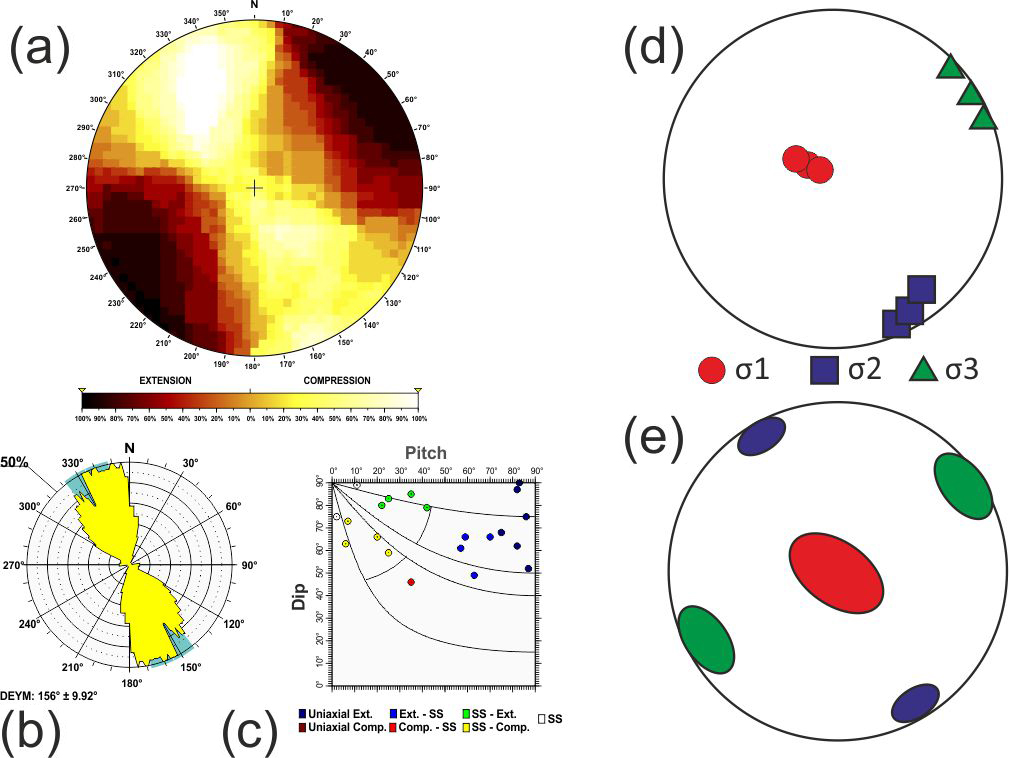

Figure B15 NW Galicia tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B16 Offshore Atlantic tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

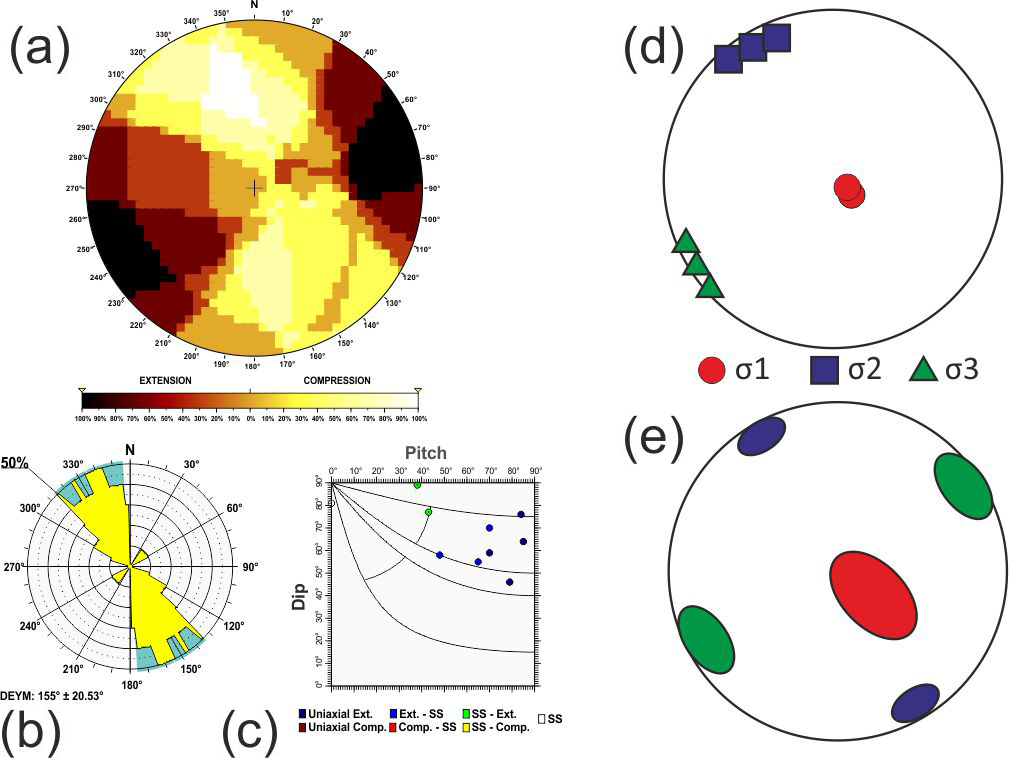

Figure B17 Southern Valencia tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B18 Western Alcaraz Arch tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B19 Western Betics tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B20 Western Betics >20 km tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B21 Western Spanish–Portuguese Central System tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) Rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

Figure B22 Western Pyrenees tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

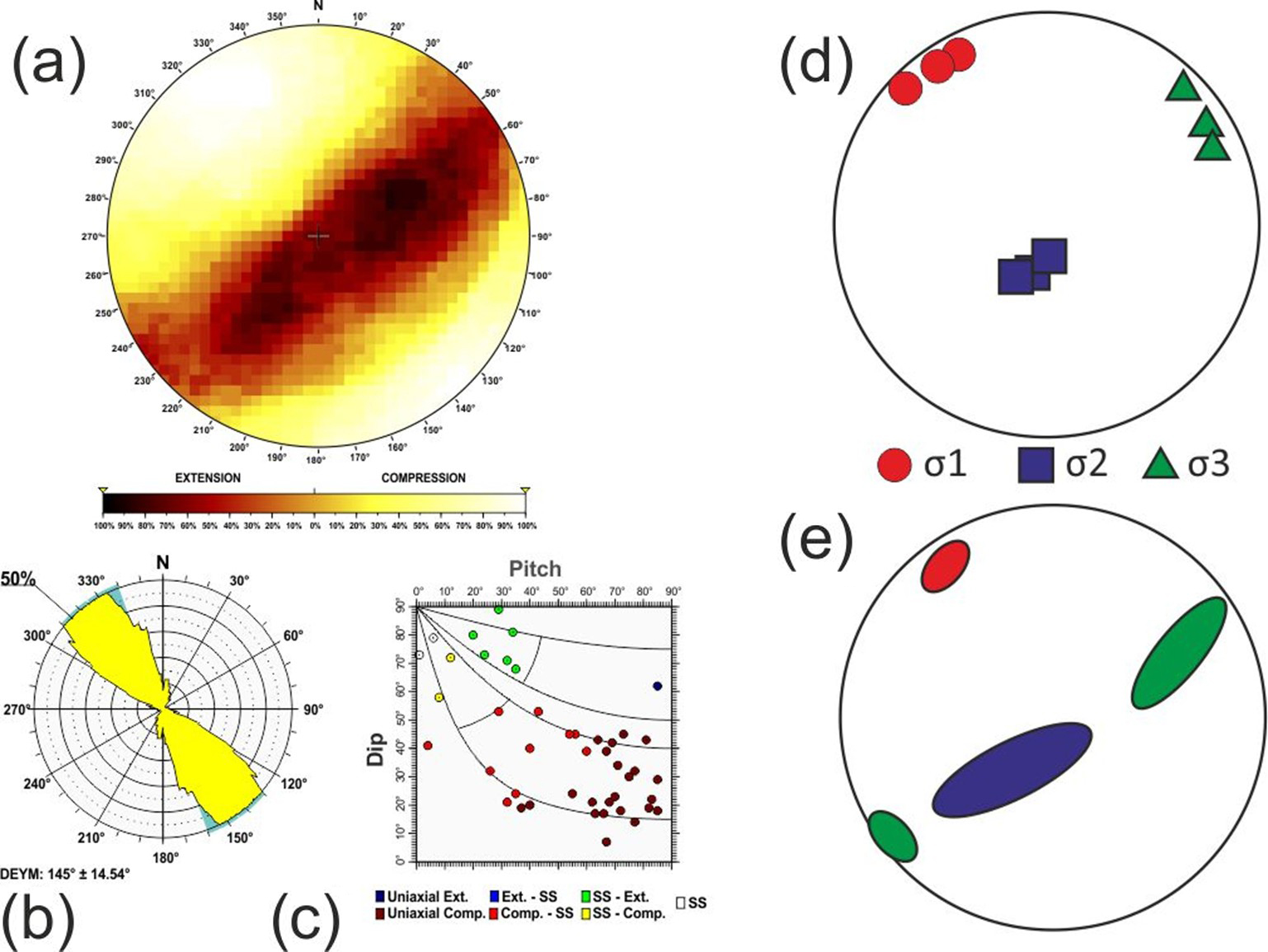

Figure B23 Western Tell Atlas tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.

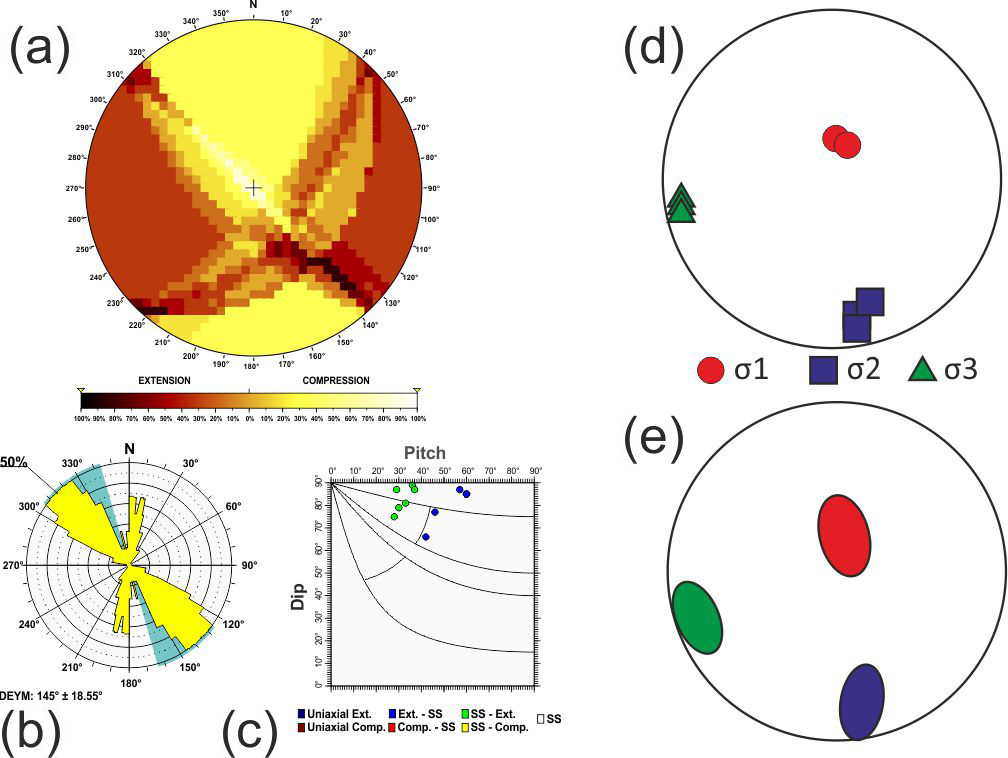

Figure B24 Western Valencia tectonic zone. Results of the stress and strain analyses for different zones: (a) right dihedra solution, (b) rose diagram of the Dey (horizontal shortening direction) obtained from the slip model, (c) pitch/dip plot for the neo-formed nodal planes obtained from the slip model, (d) stress inversion results, (e) variability in the three principal stress axes of the stress inversion.
